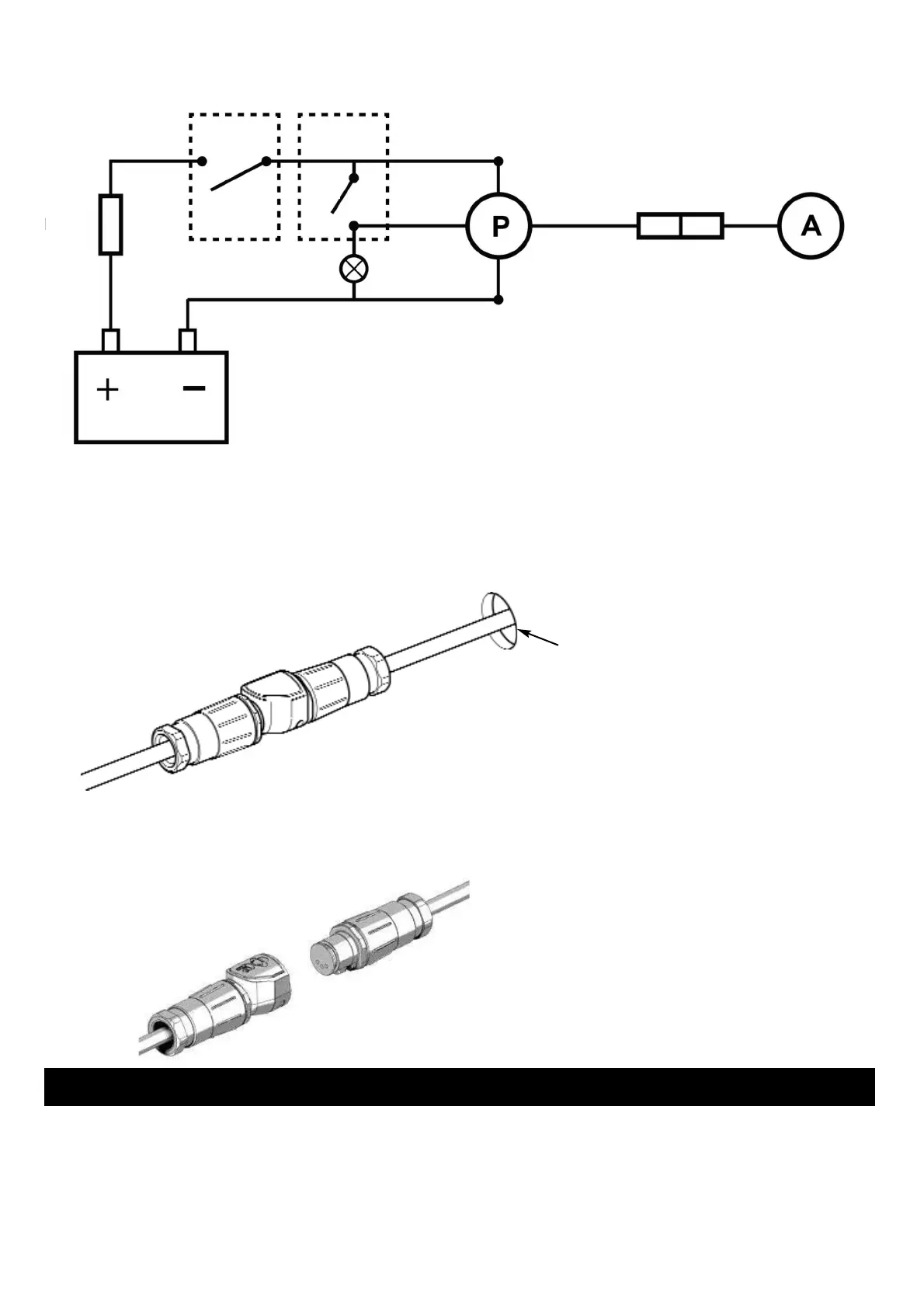

11.vi. Wiring Diagrams:
Fig 7 Wiring Gulper® IC to Whale Strainer IC
11.vii CONNECT SWITCHING CABLE
If switching cable must be fitted through bulkhead, ensure a minimum hole diameter
25mm (1") is drilled.
Fig 8 - Connecting switching cable
through bulkhead
11.vii CONNECTING GULPER IC TO STRAINER IC (SEE FIG 1)
Connect the pre-wired Deutsch connectors on Gulper® IC and Whale Strainer IC.
Fig 9. Connect Deutsch Connectors
Use 19mm (3/4") or 25mm (1") smooth bore reinforced pipework to connect to the
pump.
Secure the pipework on inlet and outlet with worm drive hose clip (Fig 10)
Gulper IC
Strainer IC
Deutsch
Connectors
Black
Red
Override
Switch
Battery
Isolator
Switch
On
Off
White
Off
Fuse
On
Hole diameter 25mm (1”) minimum
12. PLUMBING
Running
Light
