Step 13 Electrical Connection 230V
The appliance must be installed in accordance with the installation instructions and comply with any relevant
regulations in the country where the appliance is installed. Electrical installation must be carried out by a suitably
qualified electrician. The electrical supply must be connected to a 13 amp fused spur provided with an all-pole
disconnection and the appliance must be earthed.
Vehicle Manufacturer Installation
The mains supply cable is supplied with a JST LP series socket (terminal pins are JST slm-61T-2.0) and must be
mounted in a housing with strain relief to prevent accidental disconnection and prevent access to the connector.
Retail Installation
The Whale® Space Heater comes fitted with a 3 pin plug. The socket must be mounted vertically and away from
potential exposure to water. If installation of an electrical socket is required, this must be carried out by a competent
person. The plug is fitted with a 10 amp fuse.

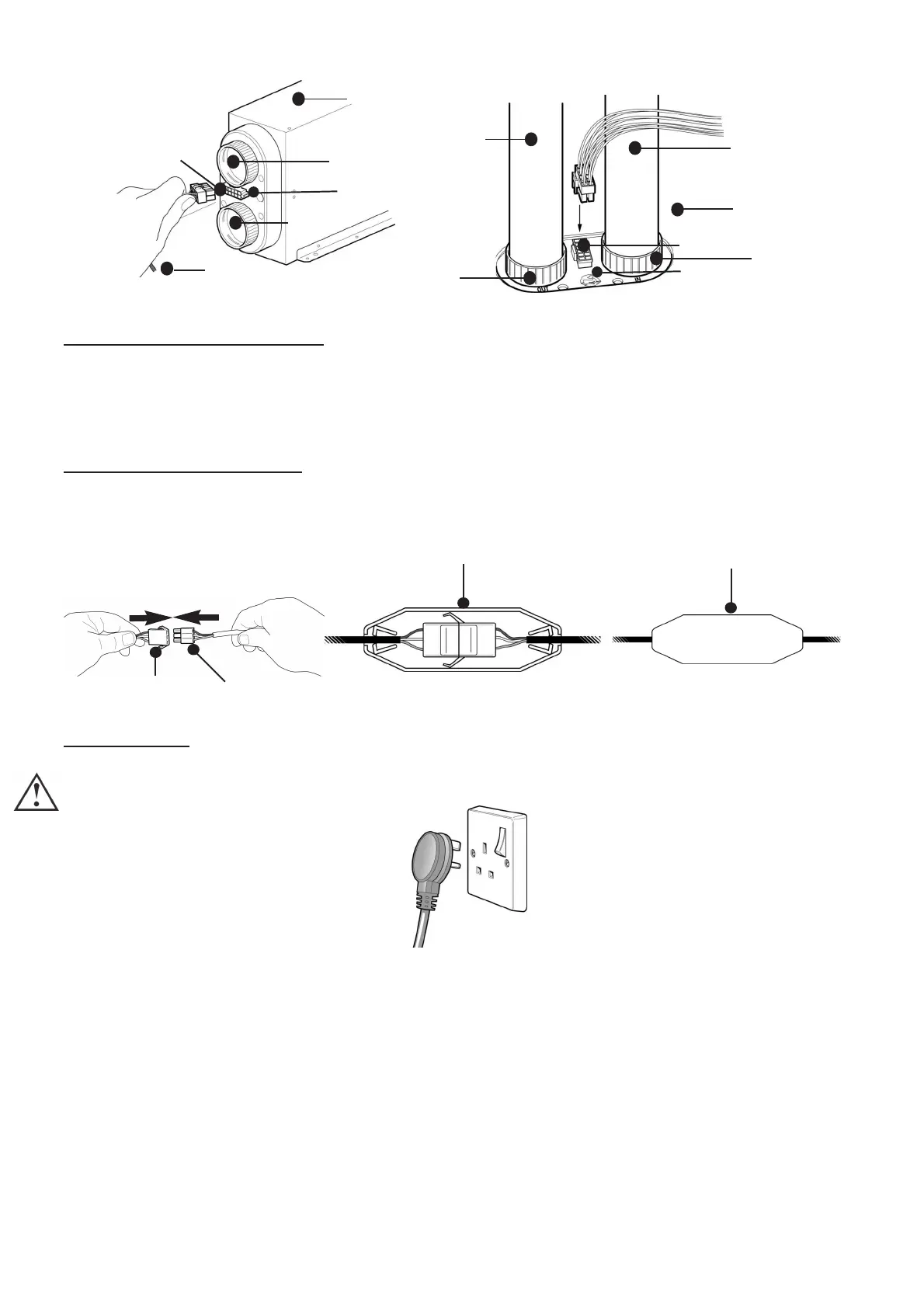

Fig. 34 Mains Connection
Please note: If the supply cable is damaged, it must be replaced by the caravan/motorhome/cable manufacturer or
a Whale® Approved Service Centre or Technician.
Warning: The appliance must not be supplied through an external switching device, such as a timer or a circuit that
is regularly switched. This is to avoid an inadvertent resetting of the thermal cut out.
N.B. Ensure that the Space Heater is not located immediately below the electrical supply socket.
18
Hot Air Duct
Vehicle Floor
Cold Air Inlet
Cold Air Duct
12 Way Connector
Reset Button
Fig. 33 Mains Electrical Connection
Space Heater
Wiring Loom
Protective Cover
Protective Cover Lid
Cold Air Inlet
Hot Air Outlet
Space Heater
12 Way Connector
Reset Button
Fig. 31 Internal Installation - Connect 12V d.c. Fig. 32 Underfloor Installation - Connect 12V d.c.
