Whirlpool 27' - Key Circuit Operations

28

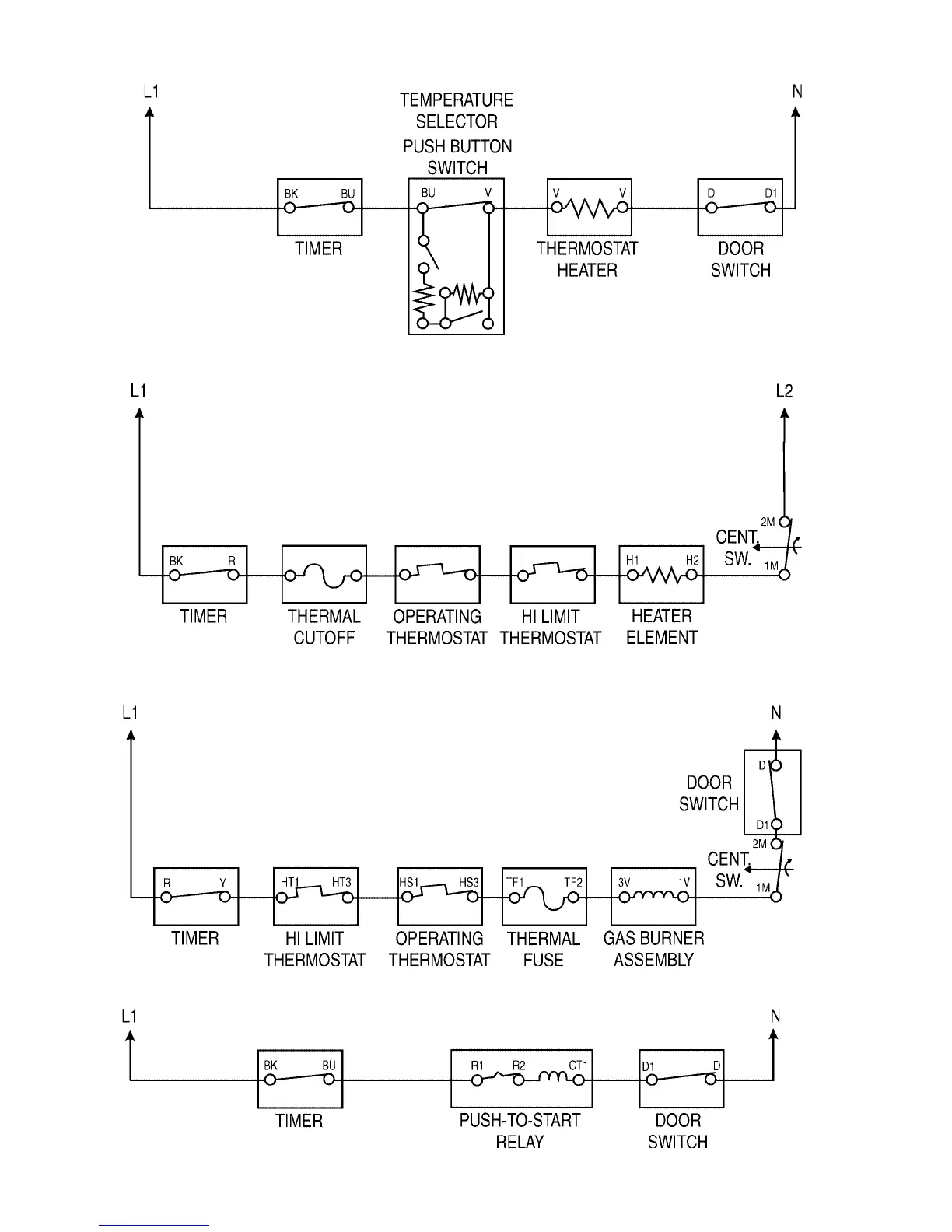

6. Push-To-Start Circuit - At moment of CONTACT
5. Gas Burner Circuit - Burner assembly ENERGIZED.
4. Electric Heater Element Circuit - Heater element ENERGIZED.
3. Temperature Control Circuit - Thermostat heater ENERGIZED
