Page 3-19
ADJUSTING THE PILOT FLAME HEIGHT
A pilot that frequently blows out may be set too high, or too low. To adjust the pilot flame to the
correct height, perform the following steps:
1. Turn off the controls and prop open the cooktop.
2. Using a screwdriver, turn the needle valve screw slowly in the direction necessary to set the
size of the pilot flame, as shown in Figure 3-27. The flame should have a sharp, blue cone that
is approximately 1/4
"
high, as shown in the inset.
3. Lower the cooktop.
Pilot
Gas Line
Adjustment
Screw

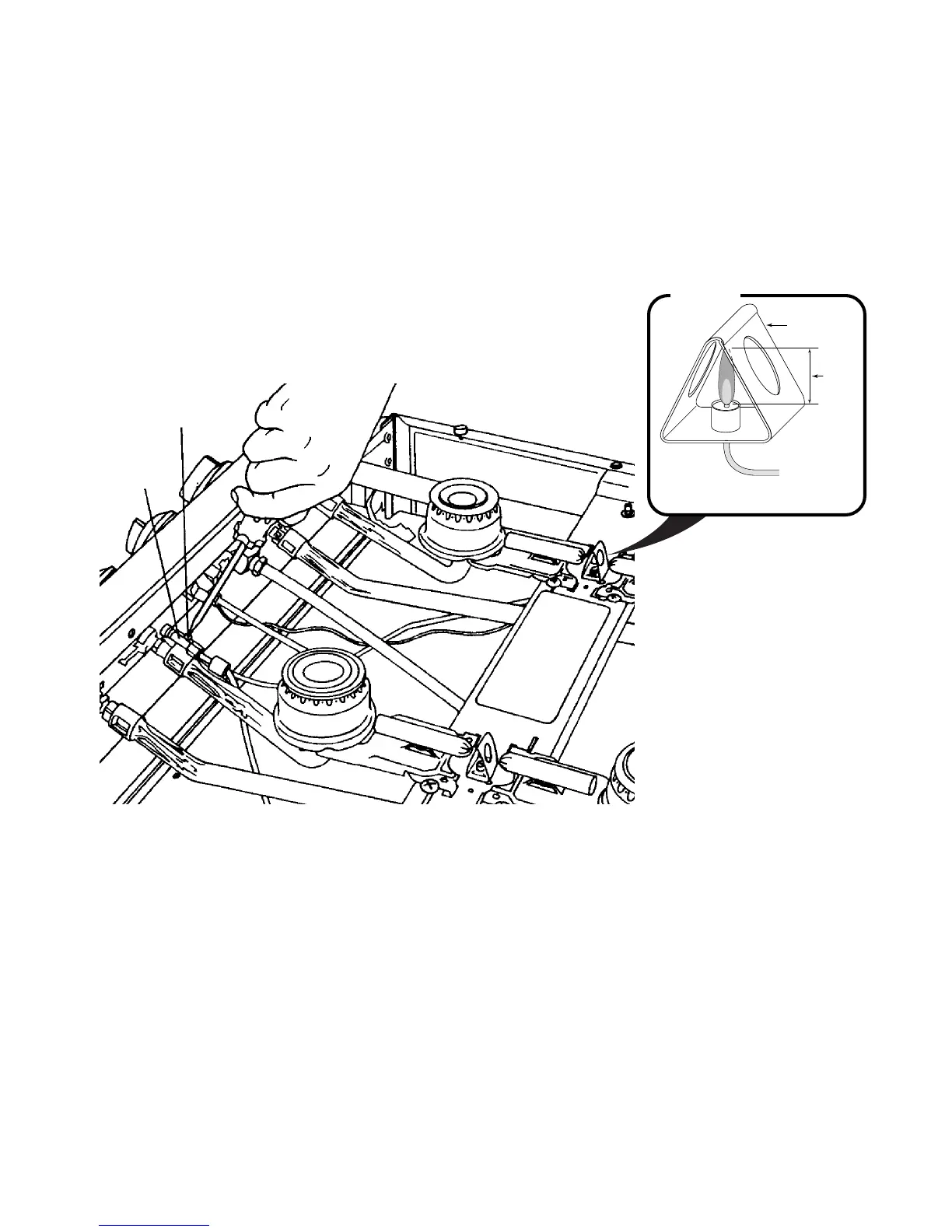

Figure 3-27
1/4
"
Flame
Bracket
Proper Flame Size
Inset
