Page 4-15

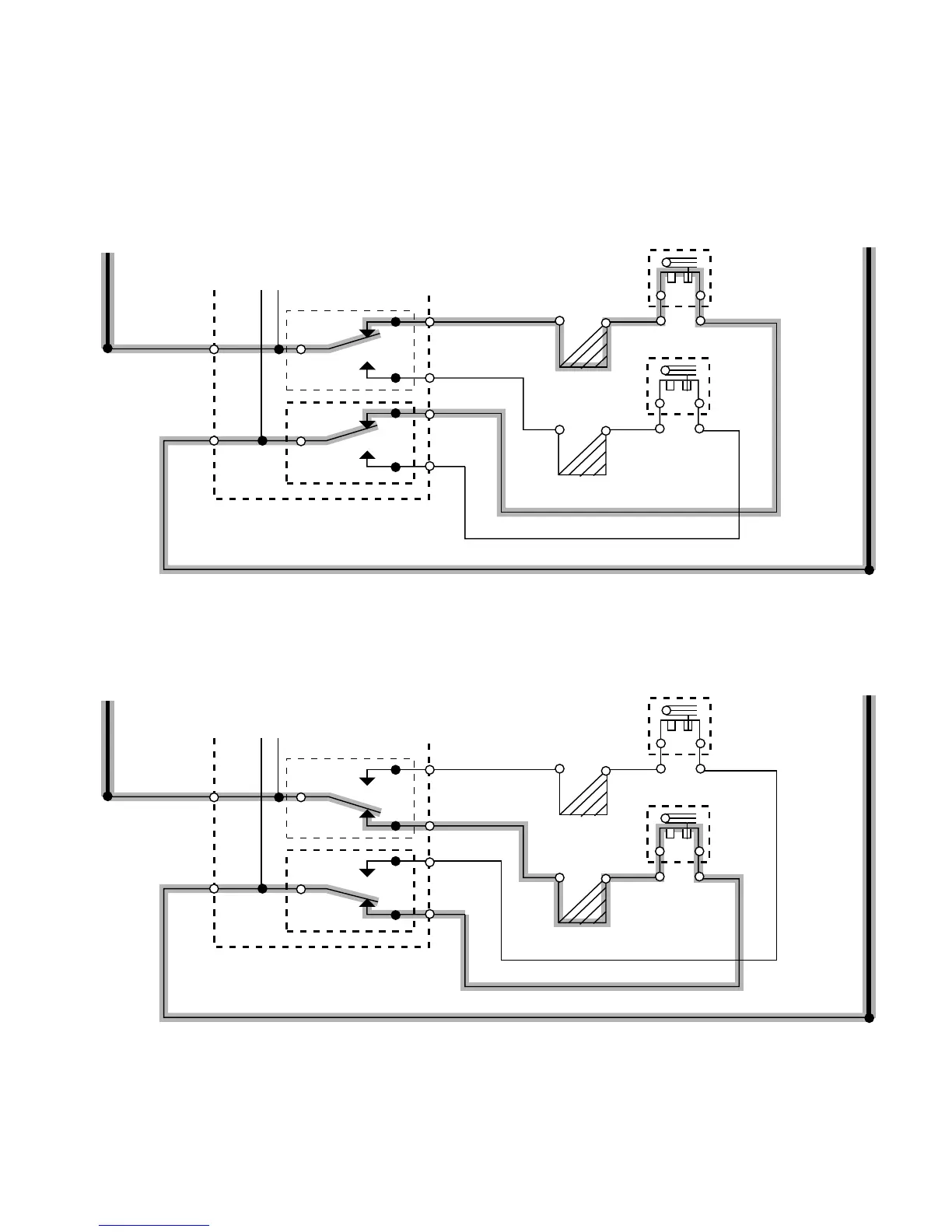

By the construction of the relays, both the Bake Function (see Figure 4-27), and the Broil function
(see Figure 4-28), can not operate at the same time. The normally-closed position of the opposite
relay is needed to complete the circuit.
NL1
W
W
BU
N.C.
N.C.
N.C.
N.C.
BU
RR
P3-1
P2-1
P3-4
P3-2
P2-4
P2-2
BROIL
RELAY
BAKE
RELAY
BAKE VALVE
BROIL VALVE
BAKE IGNITOR
BROIL IGNITOR
NL1
W
W
BU
BU
RR
P3-1
P2-1
P3-4
P3-2
P2-4
P2-2
BROIL
RELAY
BAKE
RELAY
BAKE VALVE
BROIL VALVE
BAKE IGNITOR
BROIL IGNITOR
Figure 4-27
Figure 4-28
BAKE
BROIL
