The items listed below are not failures. The following must be confirmed before calling for
service.
PROBLEM POSSIBLE CAUSE
The dryer does not start Is the dryer plugged in?
Is the power on?
Is the door closed properly?
Has a drying program been set?
Has theStart/ Pause button been pressed?
The drying result is not good Was the correct drying program set?
Is the filter screen clean?
Did the amount of the loaded laundry exceed the rated load?
Was the loaded laundry spun dry?
Did the laundry become twisted whilst drying?
SPECIFICATIONS ITEM (TYPE) AWD60A
Power supply (220-240)V
/50Hz
Max operating current (A) 10
Rated load (kg) 6
Drying programs 7
Maximum Power (W) 2100
Dimensions (HxDxW) mm 825 x 560 x 595
Weight (kg) 30
Waterproof level IPX4
TROUBLE SHOOTING
SPECIFICATIONS

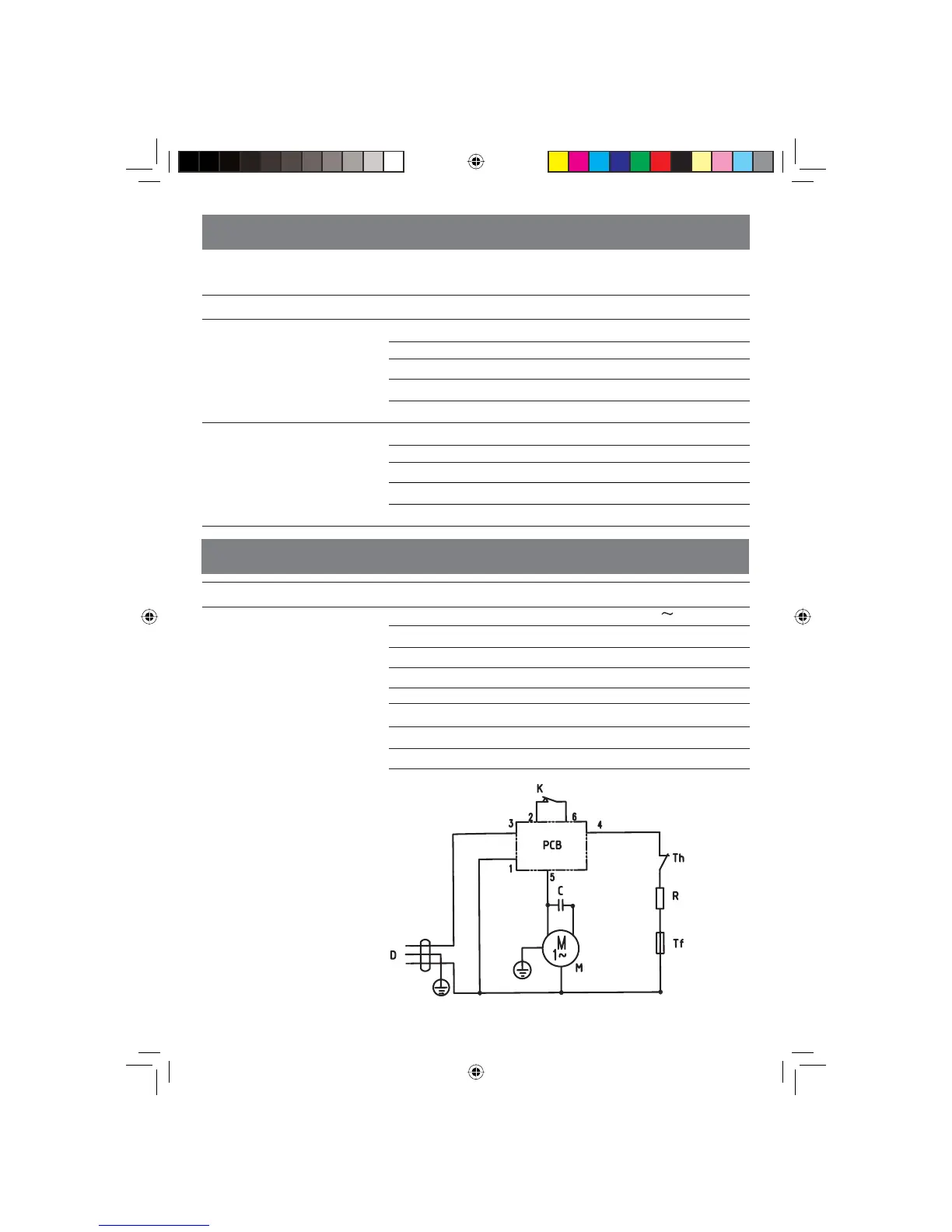

WIRING CIRCUIT
D - power
K - Door lock
C - Capacitance
M - Motor
Th - Thermostat
Tf - Fuse
R - Heater
15
