Whirlpool AWD60A - Rack Fitting Instructions; Dryer Freestanding or Wall Mounted(Upright); Rack Storage - Dryer Upright; Wallmounted - Dryer Inverted

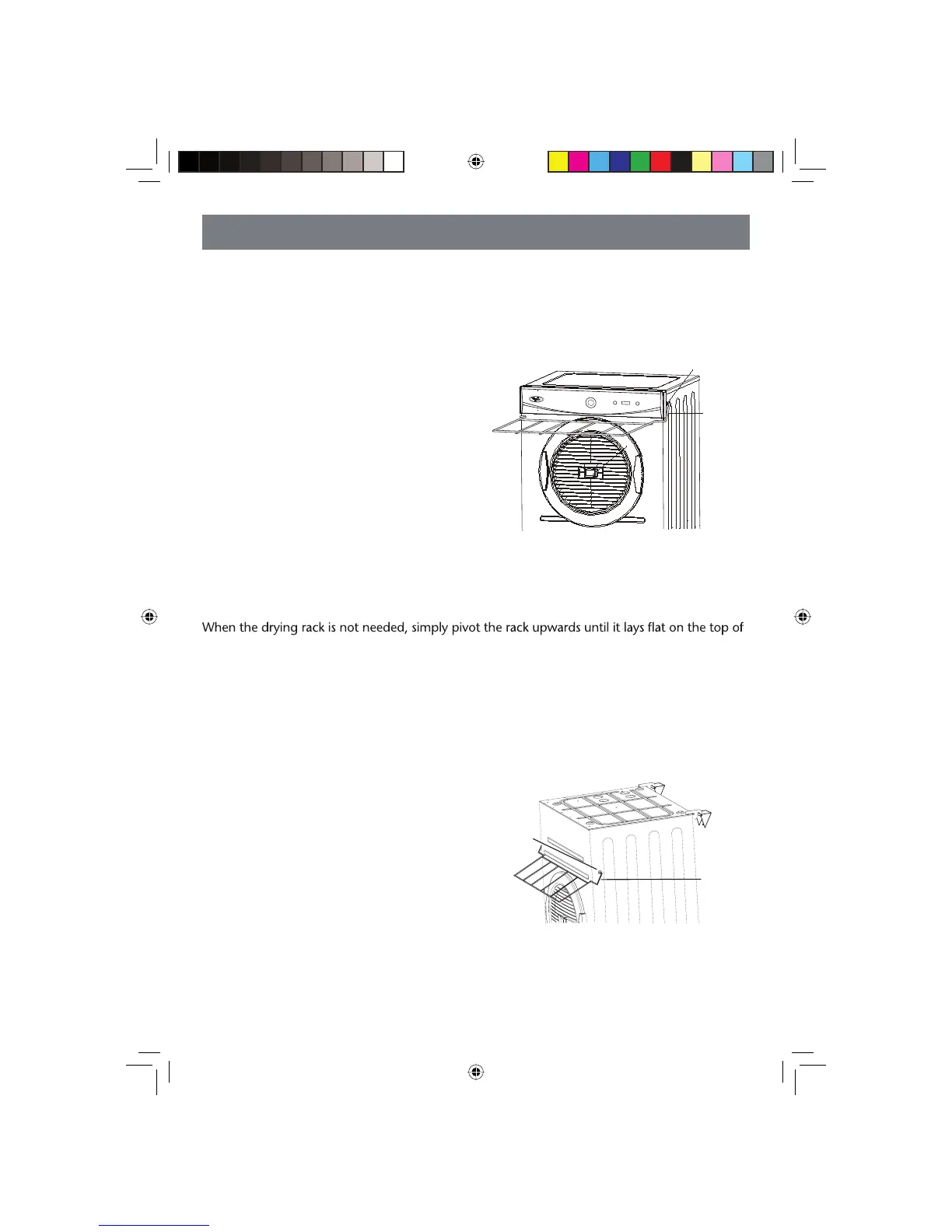

For ease of access, the rack is to be mounted near the dryer. Firstly, hold the rack horizontally
with the two end projections pointing upwards and away from yourself.Position the rack near
the top of the dryer and place the end of the
right rack projection into the right cabinet
mounting (Fig. 1).
Then gently pull on the left rack projection
until it fits around the cabinet and springs
into the left cabinet mounting.
The rack will now lay horizontally, supported
by the cabinet.Rotate the door outlet grill so
that the air exhausts upwards and through
the rack.
your dryer.
In this situation, the rack is to be mounted near the dryer door part way along the cabinet.
Firstly, hold the rack horizontally with two end
projections pointing upwards and away from
yourself.
Position the rack in front of the dryer and
place the end of the right rack projection into
the right cabinet mounting (Fig. 2).
Then gently pull on the left rack projection
until it fits around the cabinet and springs into
the left cabinet mounting.
The rack will now lay horizontally, supported
by the cabinet.
Rotate the door outlet grill so that the air exhaust blows upwards and through the rack.
FIG. 1.
FIG. 2.
Right rack
projection
Right rack
projection
Rack in operating
position
Rack in operating
position
Right
cabinet
mounting
DRYERINVERTED
9
TumbleDryer_AWD60A-4.indd 9 5/8/08 4:25:58 PM
DRYER UPRIGHT
RACK STORAGE - DRYER UPRIGHT.
WALLMOUNTED - DRYER INVERTED.
DRYER FREESTANDING OR WALL MOUNTED(UPRIGHT).
RACK FITTING INSTRUCTIONS
