Whirlpool AWD60A - Wall Mounting Instructions

:LWKDVVLVWDQFHPRXQWGU\HURQZDOOEUDFNHWV6HH)LJ

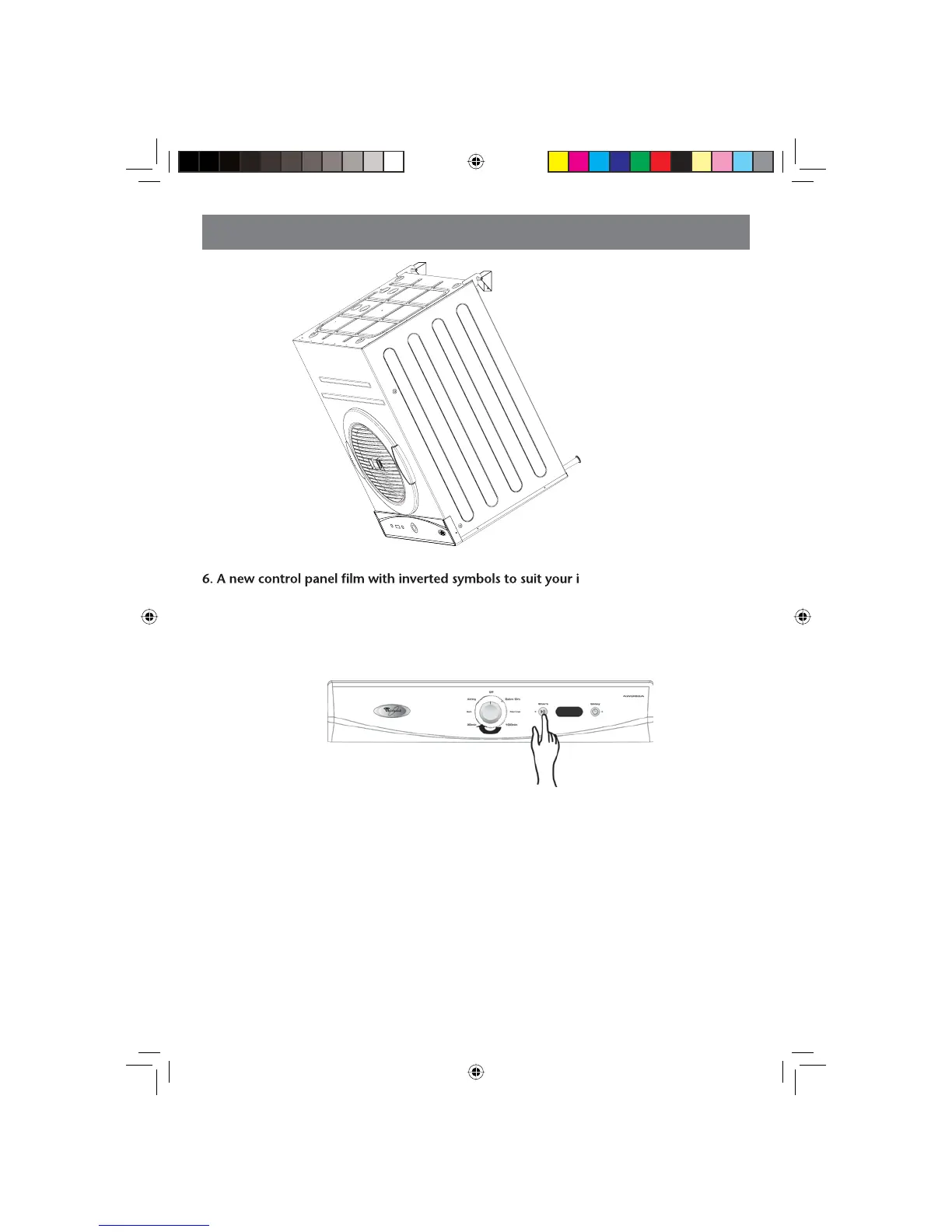

nverted dryer is supplied.
To fit this film, pull off the knob then clean surface of old film with a cloth.
Peel the release paper from the back of inverted film then place new control panel film on the
surface so that writing is the correct way around.
FIG. 4.
WALLMOUNTING INSTRUCTIONS
8
TumbleDryer_AWD60A-4.indd 8 5/8/08 4:25:54 PM
7. Press the Start/Pause button and at the same time turn the program dial knob from
OFF position to any other program - press the Start/Pause button until the inversion is
displayed.
Caution:
Plug must be accessible after installation.
