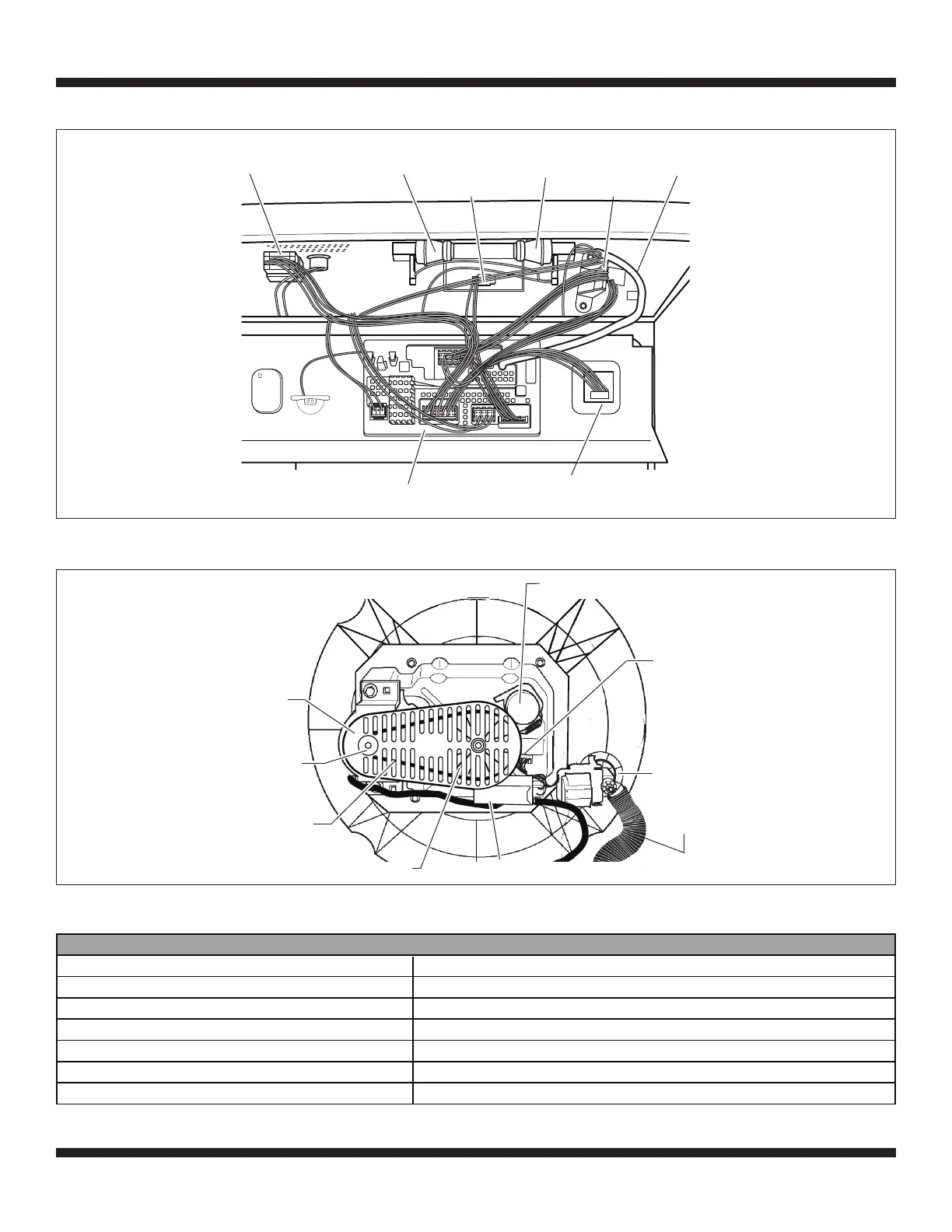

Component Locations – Console & Valves (Figure 7)
Specifications
Component Locations – Drive System & Drain Pump (Figure 8)
Drive Motor
Shifter Assy
Drain Pump
Drain Hose
Motor Pulley
Drive Belt
Shaft Pulley
Shifter Assy
Connector
100-135 VACVoltage:
57-63 HzFrequency:
12 AmpsMax. Amps:
15 Amp Instantaneous Type Fuse (Main Control)Circuit Protection:
15-125 PSIWater Pressure:
34 in. to 8 ft. (86 cm to 244 cm)Drain Height:
40 - 115° F (4.5 - 46° C)Operating Temperature Range:
WASHER SPECIFICATIONS
Main Control Board
Hot Water
Valve
Cold Water
Valve
Pressure
Hose
Temperature
Thermistor
Coin Slide
Interface
Module
Water Temperature
Encoder
Motor Capacitor
Motor Relay
(not present on all models)
