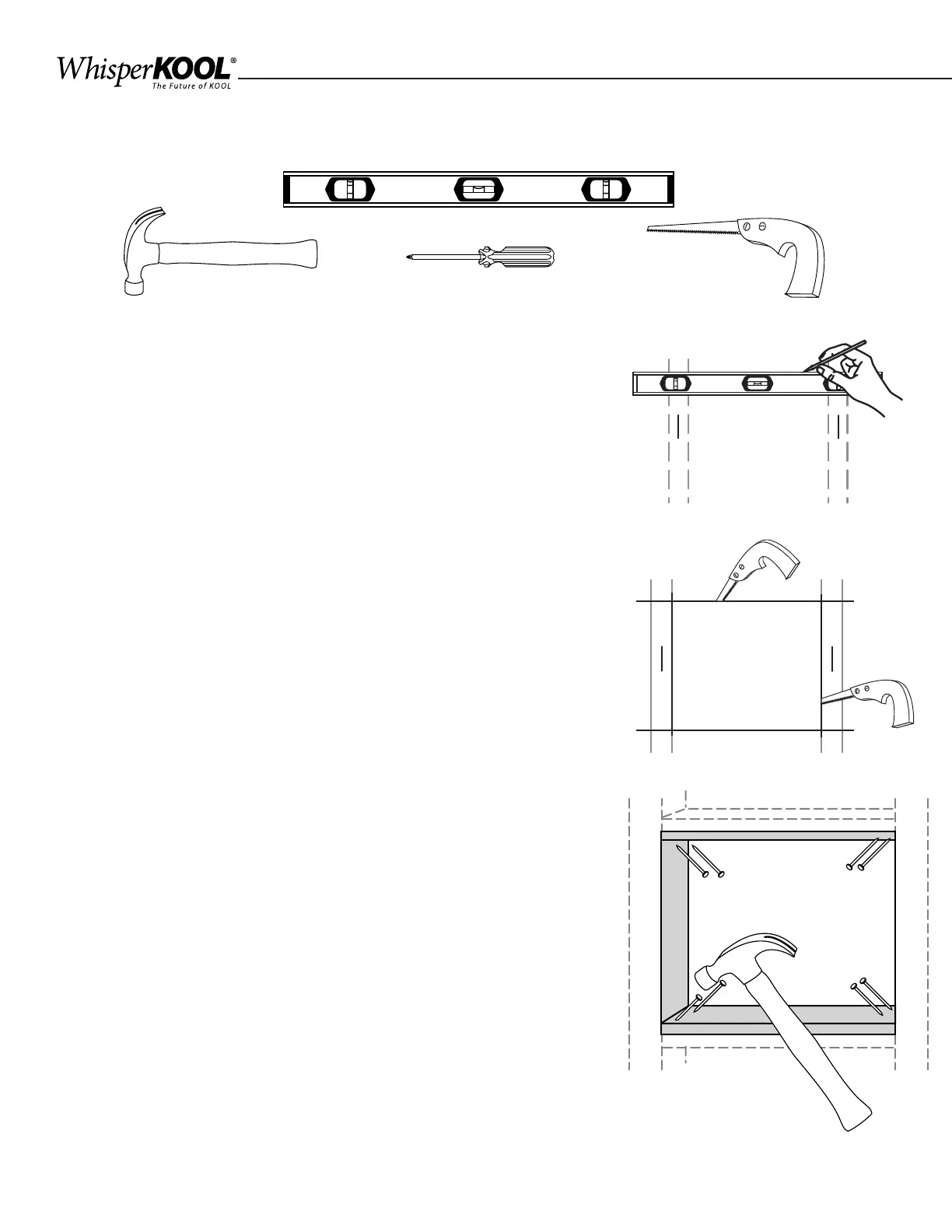

Locate the desired installation location (no lower than 18 inches from the ceiling).
Using a stud nder, locate the studs on either side of the center point, and mark them
with vertical lines.
Using a level and a pencil, mark a horizontal line on the wall between the two studs,
no less than 1.5 inches and no more than 18 inches from the ceiling.
Using a ruler or measuring tape, measure 16 inches down (2000/3000/4000) or 22.75
inches down (8000)and mark another horizontal line parallel to the rst one. The unit
is designed to t between two studs that are 16 inches apart on center, enabling the
unit to t in the 14.5-inch horizontal space.
Using a saw, cut along the uppermost horizontal line until your saw reaches the stud.
Turn the saw around, inserting it into the cut that has just been made, and cut toward
the opposite stud so that there is a clean horizontal cut between the two studs. Be
careful not to cut into the studs themselves.
Make the second horizontal cut from stud to stud on the line 16 inches below the rst
cut.
Once the horizontal lines have been cut, make vertical cuts using the inside edge
of the studs as a guide. Once both vertical cuts have been made, there should be
rectangular hole in the sheetrock. Make the same hole on the other side of the wall.
Using a nail, mark all four corners of the rst hole by making nail holes through the
sheetrock. Connect the holes with a pencil mark and cut on the other side of the wall.
Sheetrock alone cannot support the weight of a cooling unit. Therefore, it is
necessary to frame the hole that has just been cut with upper and lower supports.
These supports also provide solid material for the mounting bracket screws.
Using two 2x4s at 14.5 inches in length and eight 6d nails, secure the upper and lower
supports to the right and left studs, just inside the sheetrock. Make sure that the
internal height remains at 16 inches (2000/3000/4000) or 22.75 inches (8000) so that
the WhisperKOOL unit will t snugly through the framed cut-out.
Hammer SawScrewdriver
Level
PREPARING THE INSTALLATION LOCATION
Minimum Tools Needed
