Condensation Drain Line Tube
All units come equipped with a drain line for additional removal of excess condensate. This is a backup system to the condensate
evaporator. It is mandatory to install the drain line attachment. The condensate evaporator will heat and dissipate the excess
moisture through the rear of the unit. However, in extreme humidity, additional condensate will be created. Conversely the high
humidity air has less capacity to absorb additional moisture through the exhaust of the unit. Thus, the drain line will prevent
overow and leaking by allowing the discharge of the additional condensate.
It is important that the drain line tube be properly connected and used to prevent leakage and other problems associated with
excess condensation.
Failure to use the condensation drain line tube will void the warranty on the unit.
Condensate Evaporator
The SC units come equipped with a condensate management system known as a condensate evaporator. The condensate
evaporator is a heating element designed to evaporate the condensate which accumulates in the cooling system as a by-product
of the refrigeration cycle. The condensate evaporator is designed to evaporate 3 oz. of water for every working hour.
NOTICE: DO NOT INTRODUCE ANY TYPE OF CLEANING AGENT, DISINFECTANT OR OTHER FOREIGN MATTER INTO
THE COOLING SYSTEM.

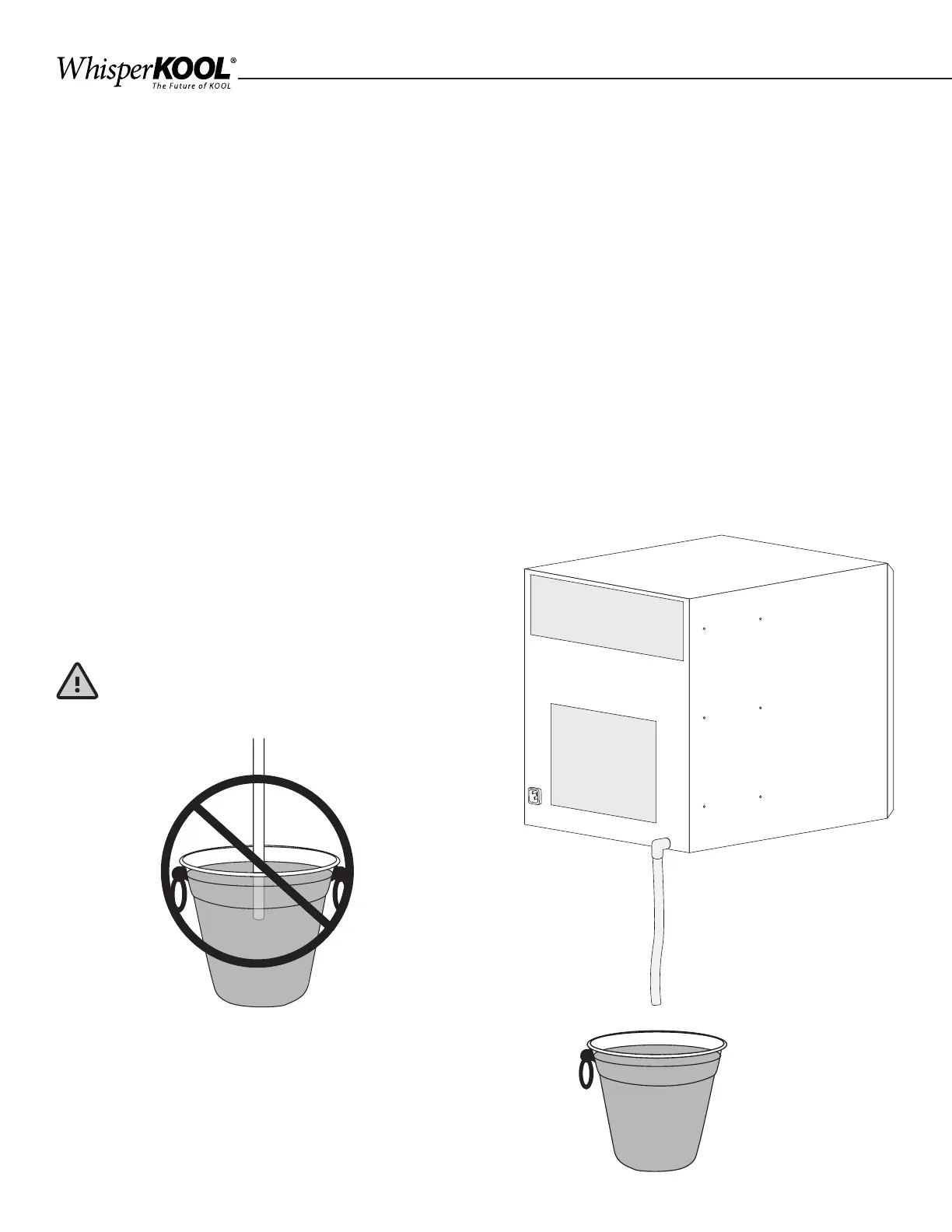

SC Drain Line Installation
1. Wrap the threads of the drain tting in plumber's tape and
screw on the plastic elbow.
2. Attach the supplied piece of 1/2" ID clear plastic tubing to the
plastic tting.
To prevent mold from growing, allow the drain line
to hang above the water line.
DRAIN LINE
WRONG: Drain line is under water.
