10 | P a g e
Window kit Installation
When you use this air conditioner unit, hot air must be exhausted out of the room to complete
the air exchange of the condenser. When the unit is operating in dry or fan only mode, no
exhaust is required.
Your window kit has been designed to fit
most standard vertical and horizontal
windows.
However, it may be necessary for you to
modify the installation procedures for your

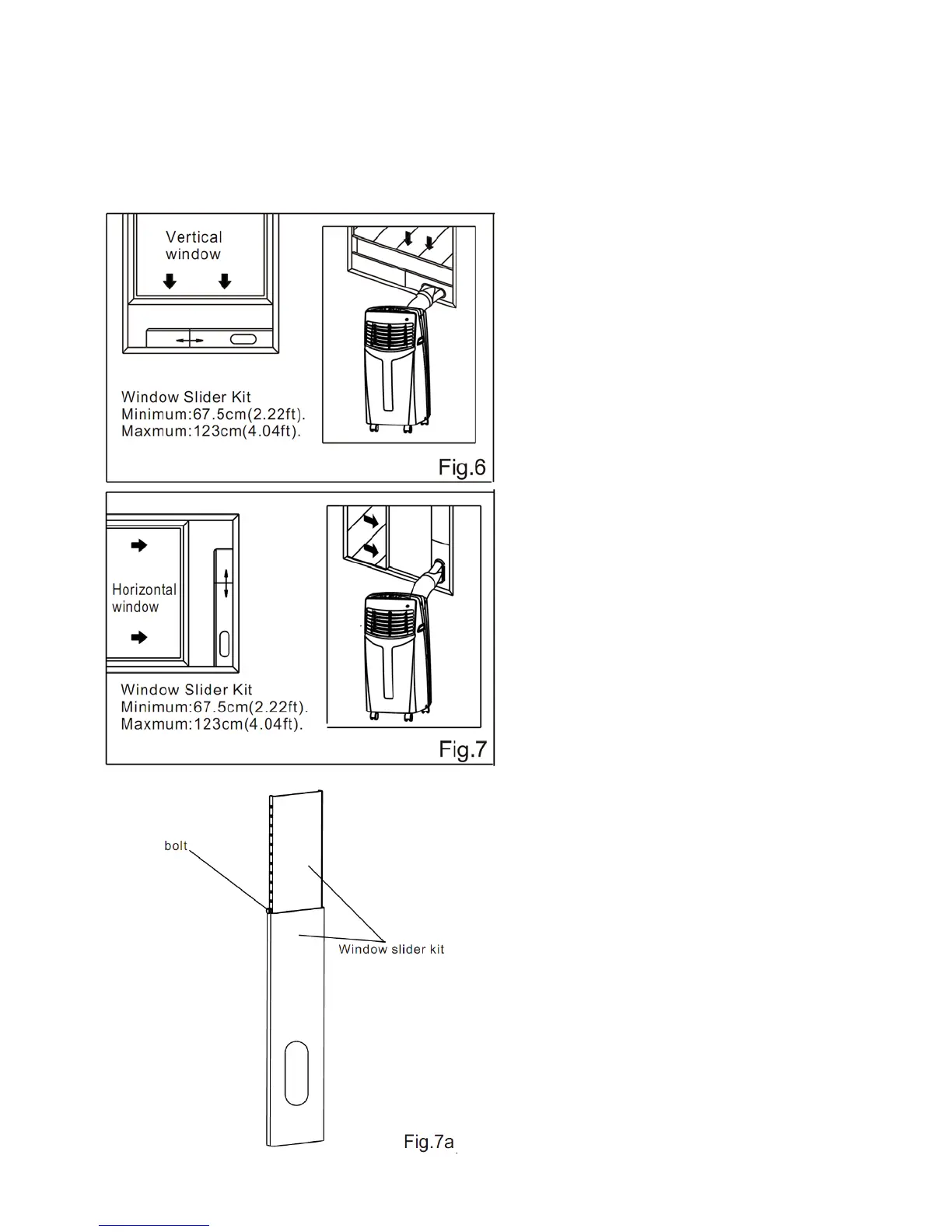

window. Please refer to Fig. 6 & Fig. 7 for
minimum and maximum window openings.
NOTE:
If your window opening is less than the
mentioned minimum length of the window
slider kit, cut the slide bar with hole to fit
window opening. Never cut out the hole on
the window slide bar.
When using the window kit on a window or
sliding door it will cause the window or
sliding door not to be properly closed and
locked. Additional security measurements
maybe needed.
The window slide bars can be fixed with
the clear plastic bolt. See Fig. 7a
