7|P a g e

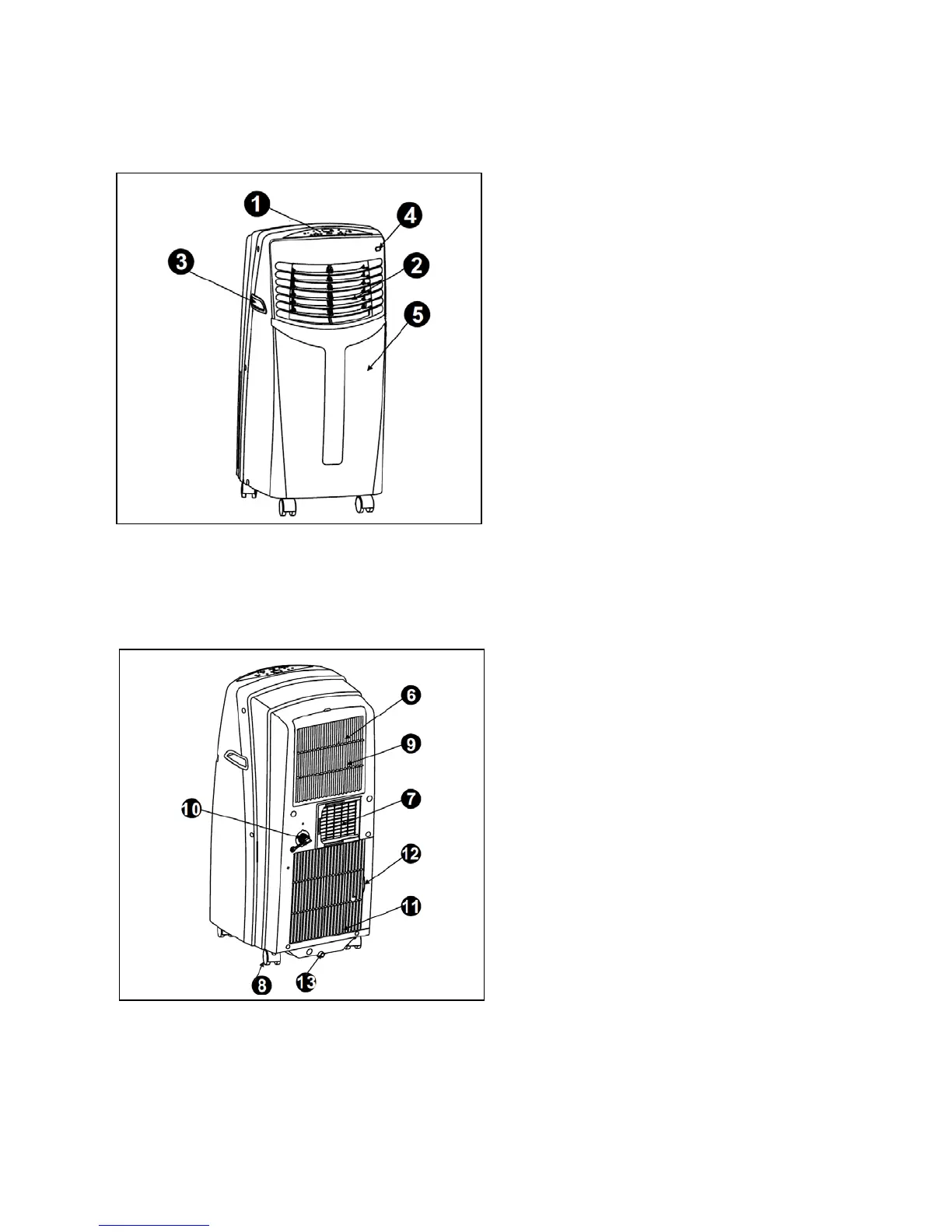

IDENTIFICATION
OF PARTS
Front
1. Control Panel
2. Front Air Vent / Louvers
3. Handles
4. Remote Signal receptor
5.
Panel
Rear
6. Upper air filter
7. Air outlet (hot air exhaust)
8. Casters
9. Upper air intake
10. Upper drain port
11. Lower air intake (Compressor)
12. Lower air filter
13. Lower drain port
