10 | P a g e
Window kit Installation
When you use this air conditioner unit, hot air must be exhausted out of the room to complete
the air exchange of the condenser. When the unit is operating in dehumidifying and fan-only
mode, no exhaust is required.
Your window kit has been designed to fit most standard vertical and horizontal windows.
However, it may be necessary for you to modify the installation procedures for your window.
NOTE: If your window opening is less than the mentioned minimum length of the window slider
kit, cut the slide bar with hole to fit window opening. Never cut out the hole on the window slide
bar.
NOTE: When using the window kit on a window or sliding door it will cause the window or
sliding door not to be properly closed and locked. Additional security measurements may be
needed.

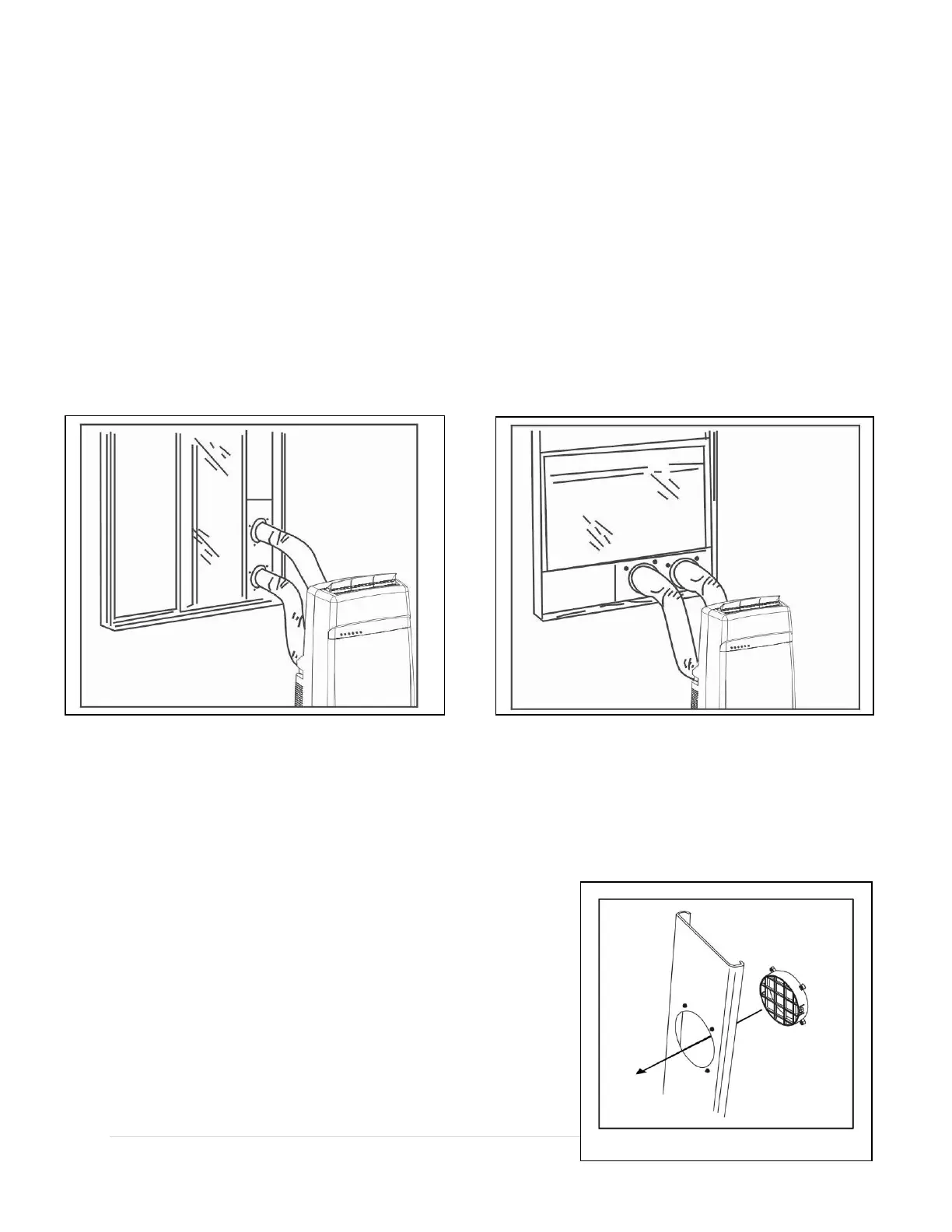

1. Open window approximately 5”.
2. Adjust the length of the window bars to the same length and width of the opening of the
window. Cut the window piece if necessary to fit the length of your window.
3. Insert the fixtures through the back grooved side of the window slide bar with holes. Line
up the 4 holes and tighten the fixtures with 4 screws from the front. Fig 1.
4. Close the window on the window slide bars. For long term installation, you may screw the
window kit into your window frame.
5. Move the unit to the window, extend the hoses and attach the other end of the hoses to
the window slide bar.
6. Align the slots on the hose connector to the tabs on the
fixtures and snap the hoses to the window slide bar.
