Page 15 2010 Edition 1
WHYTE Service Manual
Item Description
1 Screw in Bearing Cap (19mm A/F)
2 M8 Aerospace Nut (10mm A/F)
3 M8 x 100mm long Stud
4 M8 x 90mm long Stud
5 M6 x 12 long Countersunk Capscrew
8 Front 80mm centres Y-Link Assembly
9 Rear 55mm centres H-Link Assembly
10 146S Swinging Arm
7 146S Main frame
6 Ø9.5mm x 25 long Hollow Pin (M6 internal threads)

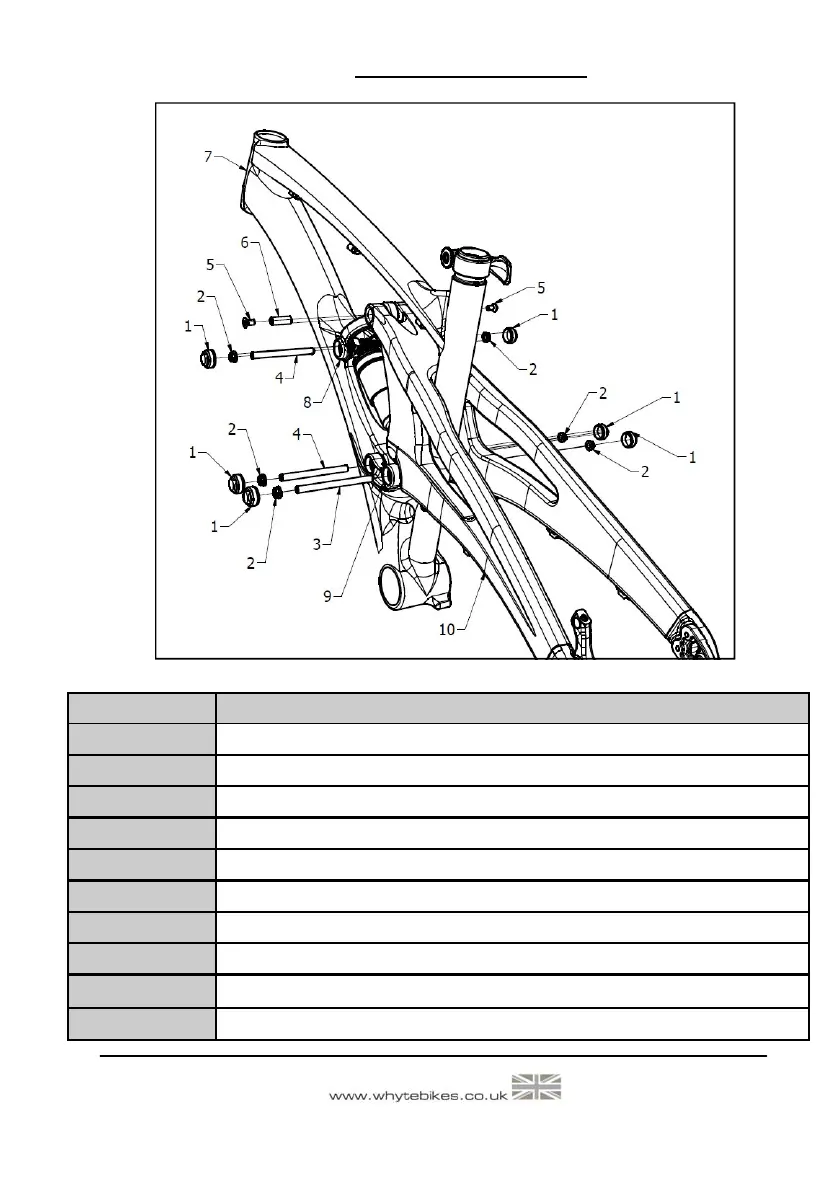

Fig.8: Whyte 146 Rear
Suspension Assembly
