WHYTE Service Manual
6.3: REASSEMBLING THE REAR SUSPENSION.
6.3.1: CORRECT ORIENTATION OF FRONT AND REAR QUAD-LINKS.
Ensure that upon assembling the Quad-Links to the mainframe, that the links are
orientated as shown in Figures 13 & 14. Both figures show E-120, but the link orien-
tations also apply to T-120 and 146 as well.

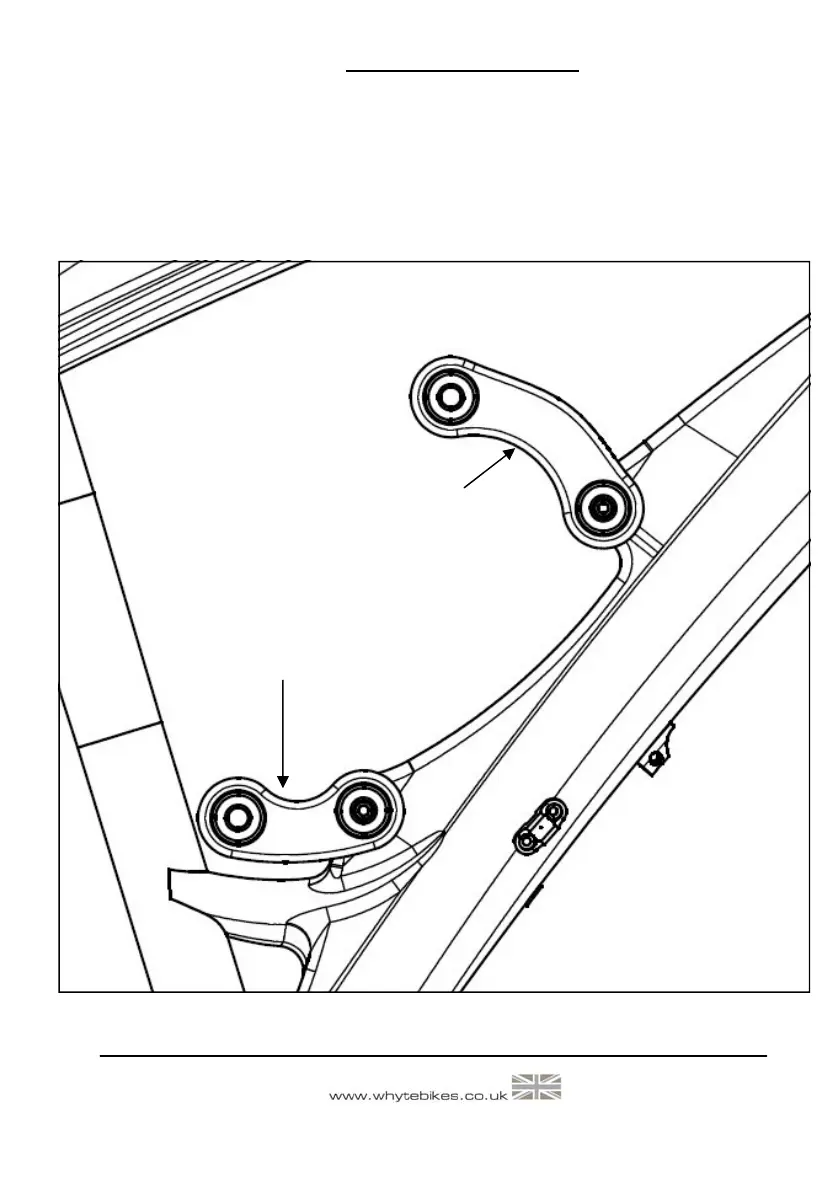

Fig 13: Correct Installation of Carbon Fibre
Quad Links onto E-120 Main Frame
Correct Installation of Front Link
Correct Installation of Rear Link
