7.0: SERVICING THE WHYTE MODULAR DROPOUT SYSTEMS.

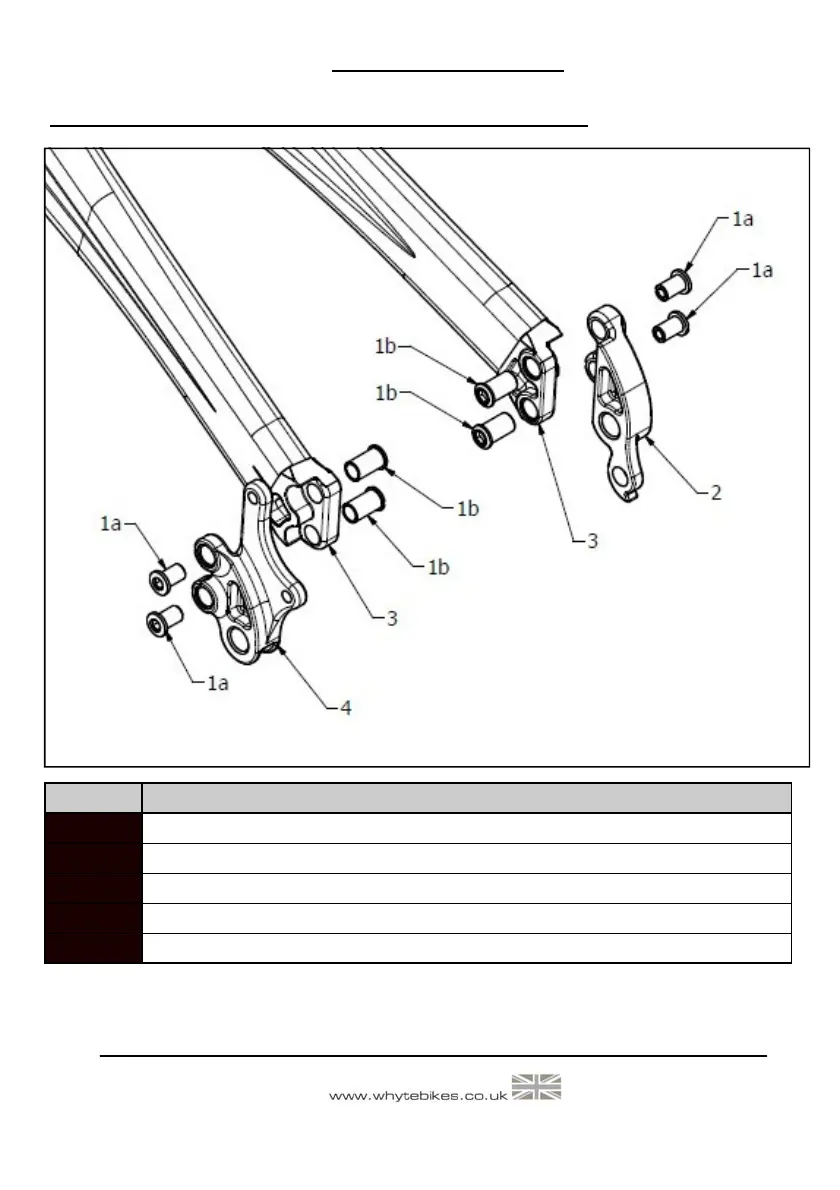

Fig.18: Exploded view of E-120
Dropout Assembly
Item Description
1a Chain ring Bolt Male
1b Chain Ring Bolt Female
2 Dropout, Q/R Modular Type, Derailleur side
3 Swinging Arm Mounting Point
4 Dropout, Q/R Modular Type, Disc side
