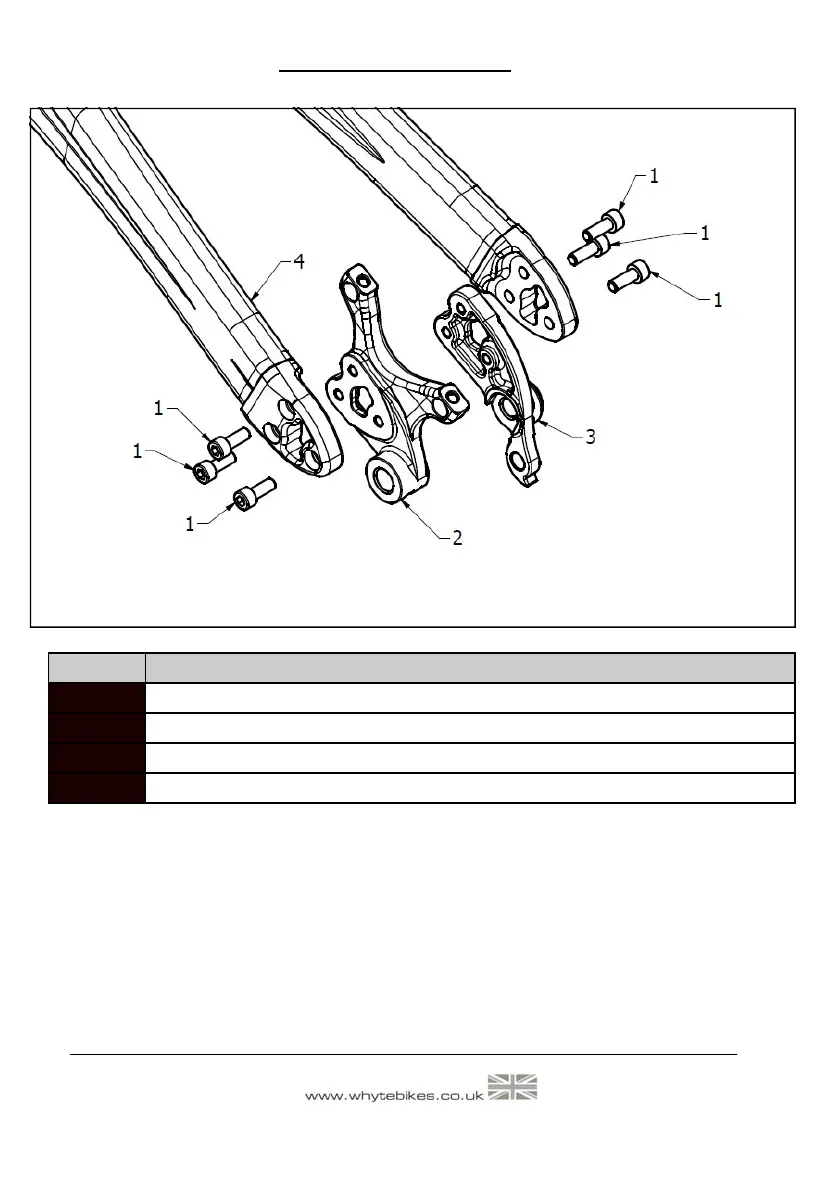

Fig.19: Exploded view of T-120 / 146
Dropout Assembly
Item Description
1 M6 x 16 long Cap Screw
2 Dropout, Q/R Modular Type, brake side.
3 Dropout, Q/R Modular Type, derailleur side
4 Swinging Arm Mounting Point
