6.2: STRIPPING AND REASSEMBLING FRONT AND REAR QUAD-LINKS.
6.2.1 From the E-120 or T-120
Item Description
1 KP5AX bearing
2 Middle shield washer (note: only fitted to pre-2011 E-120)
3 Front 75mm Carbon Fibre (E-120) or Alloy (T-120) Quad-Link Body
4 Rear 50mm Carbon Fibre (E-120) or Alloy (T-120) Quad-Link Body

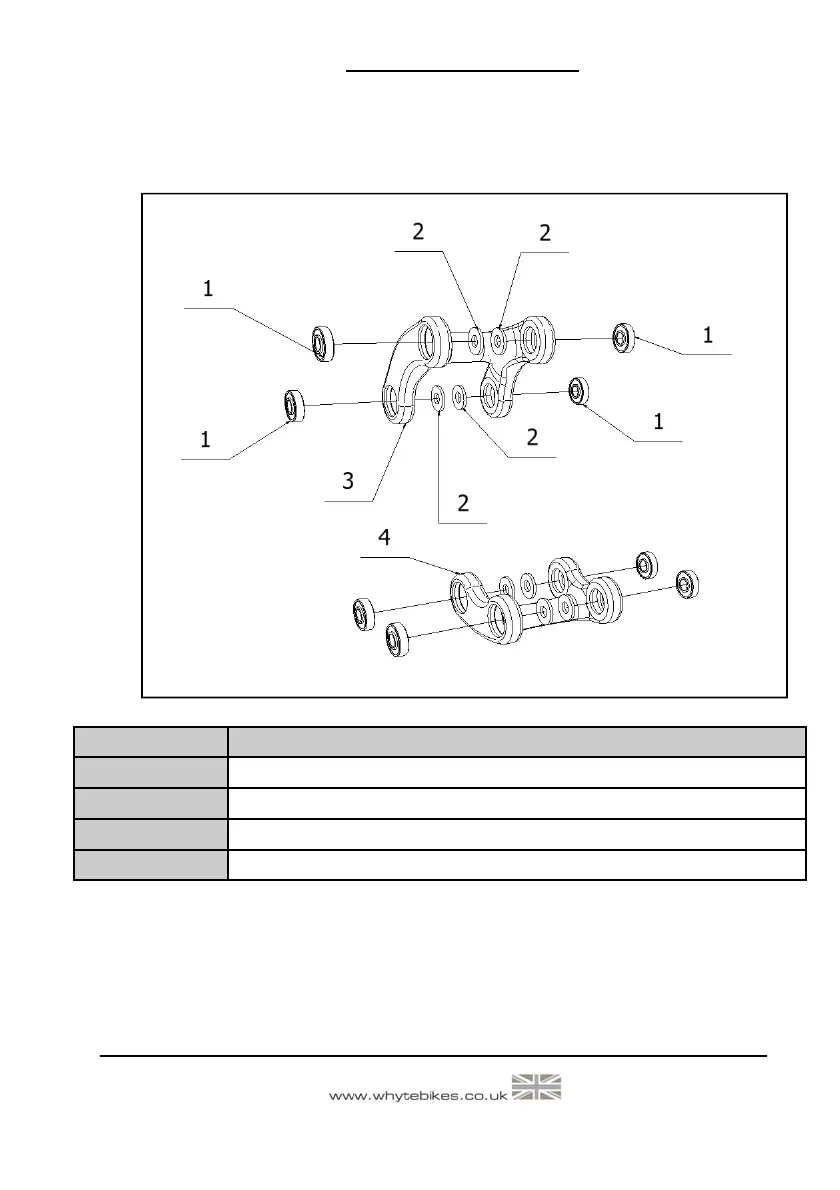

Fig.9: Link Assembly for both front and rear Quad-Links (E-120 or T-120S)
