Whyte 146 - 6 Servicing the Rear Suspension

Page 14
2010 Edition 1
WHYTE Service Manual
6.0: SERVICING THE REAR SUSPENSION

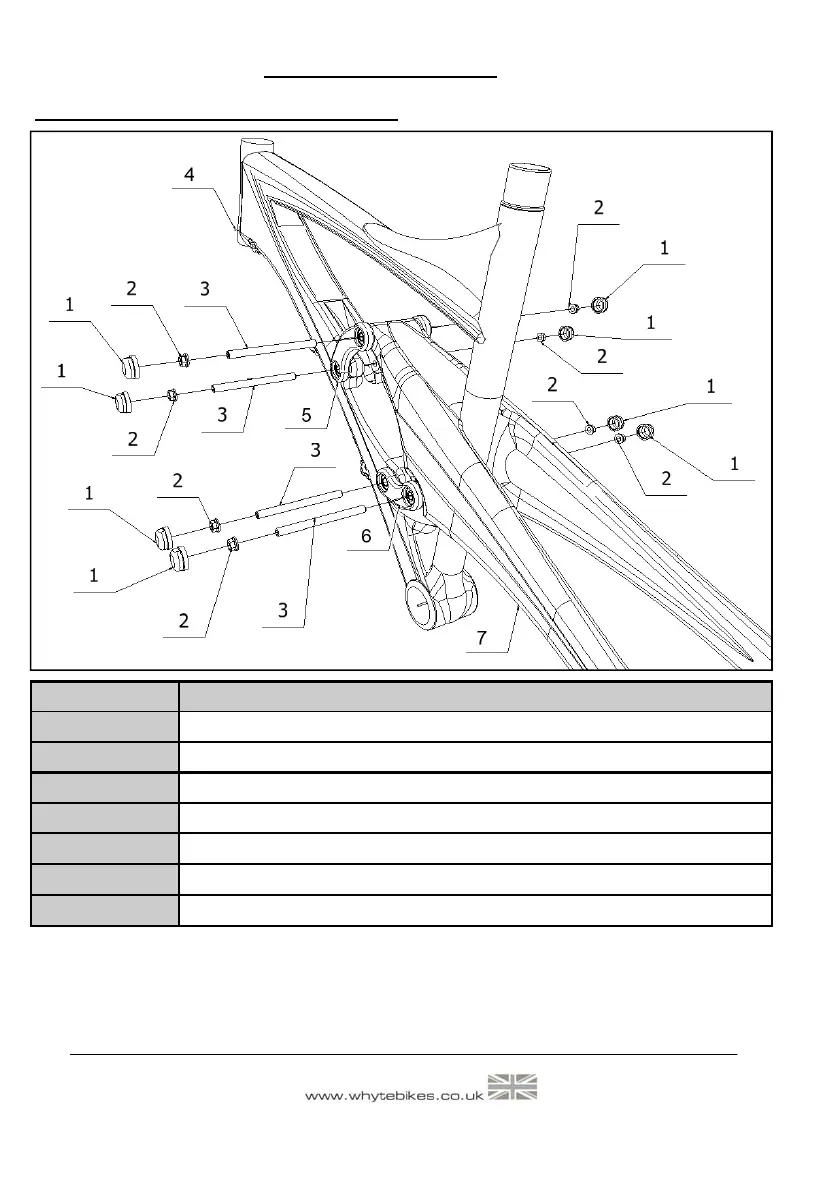

Fig.7: Whyte E-120 / T-120 Rear Suspension Assembly
Item Description
1 Screw in Bearing Cap (19mm A/F)
2 M8 Aerospace Nut (10mm A/F)
3 M8 x 100mm long Stud (“*3” indicates 90mm long in T-120)
4 E-120 or T-120S Main frame
5 Front 75mm centres Carbon Fibre Link Assembly
6 Rear 50mm centres Carbon Fibre Link Assembly
7 E-120 or T-120S Swinging Arm
*
*
*
