Page 9 2010 Edition 1
Bolt-up Type: Fig.2
Tools Required: 5mm Allen Key
(Note, refer to the seat-pin manufacturers instructions in conjunction with these notes).
To adjust the seat height, using the 5mm Allen key, undo the M6 bolt (5) just enough to
allow the seat-pin to slide freely up and down. Set the height to the desired level, and re-
tighten the M6 bolt (5) with the 5mm Allen Key just enough so as to prevent the seat-pin
from slipping down and twisting.
QR Lever Type: Fig.3
No tools required.
(Note, refer to the seat-pin manufacturers instructions in conjunction with these notes).
To Adjust the seat height with the QR Lever assembly fitted, simply undo the QR Lever (4)
from the Closed position to the Open position. Next adjust the height of the Seat Pin to the
desired level, and close the QR lever (4) to the from the Open position to the Closed posi-
tion. The QR closing force can be adjusted by turning the QR Adjuster Bobbin (8) clockwise
or anti-clockwise before closing the QR Lever (4).
3.2.2: WHYTE 146S & T-120S COCKPIT ADJUSTMENTS
Please refer to the specification chart and from there, the relevant manufacturers instruc-
tions to adjust the cockpit components before riding your 146s or T-120. This includes in-
formation on the Minimum insertion depth of the Seat Post in the frame.
WHYTE Service Manual
Item Description
1 QR Lever Cam Grub Screw
2 QR Lever Cam
3 Whyte QR Lever
4 Plastic Shim
5 Main Frame
6 Seat Clamp Band
7 QR Adjuster Bobbin
8 QR Shaft
9 T-Pad

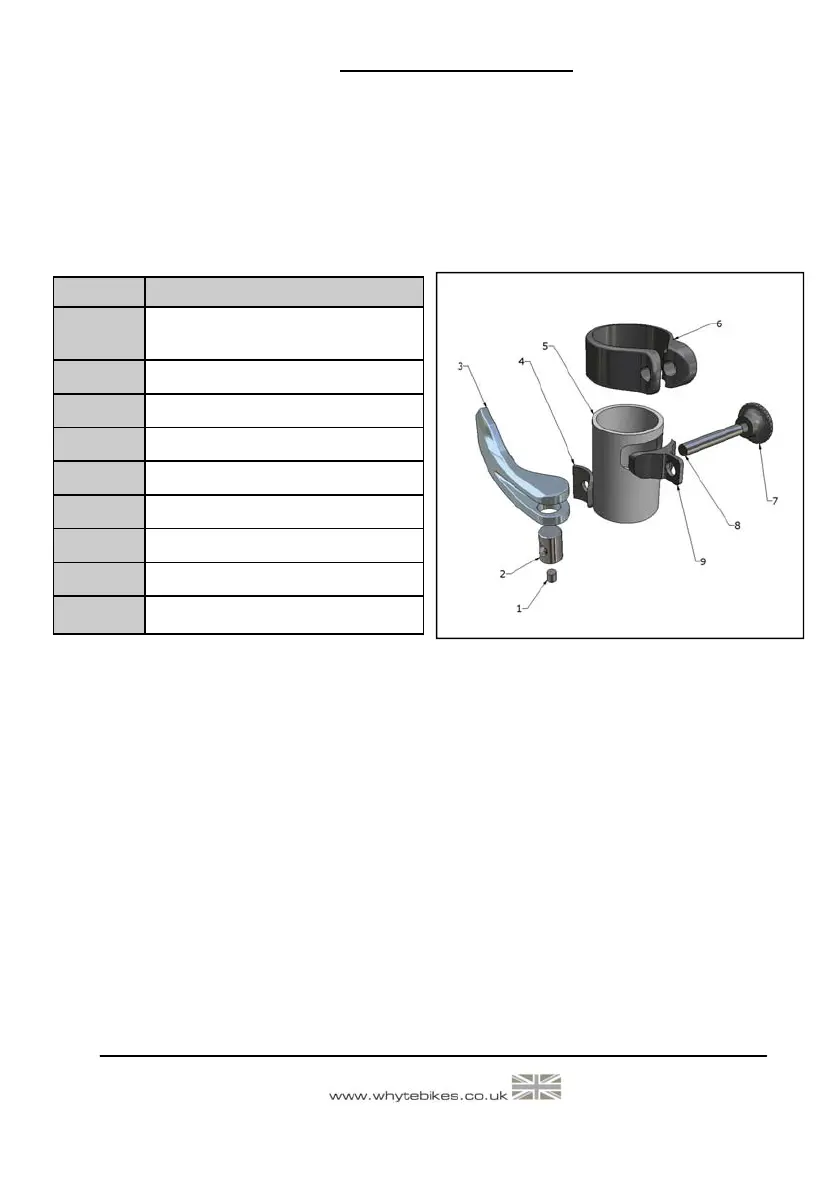

Fig.3: Getta-Grip Seat Clamp: QR Lever
