WI-PMS310GF-Alien-I QSG Page 4 of 21
4. LEDs

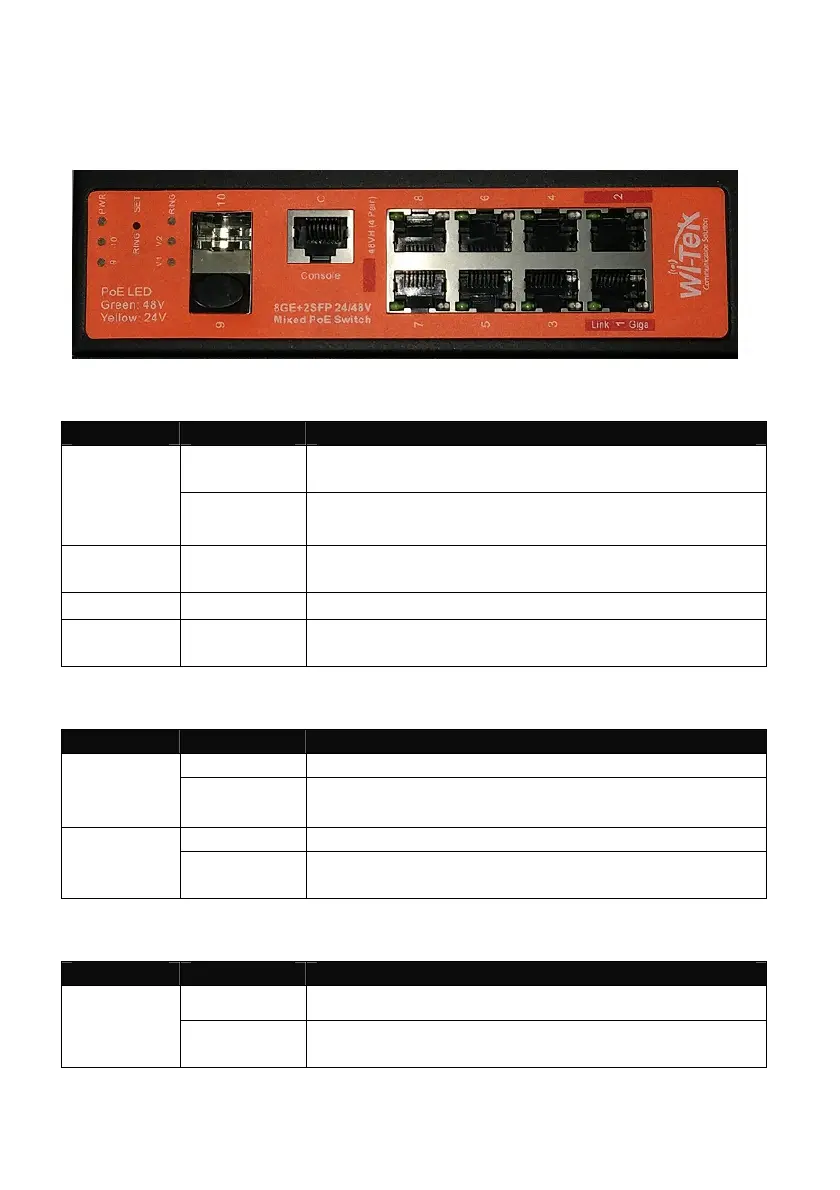

4.1 System LEDs
LED State Status
Blinking
(1 second)
Normal Operation PWR
Flashing
(Fast)
Initializing
Ring On Fast Ring Status
(EAPS: Ethernet Automatic Protection Switching)
V1 On DC (37 to 57 V) Power applied to V1 input
V2 On DC (37 to 57 V) power applied to V2 input, or
DC (12 to 57 V) power applied to
4.2 RJ45 LEDs
LED State Status
Off No network link ‘Giga’
Green Link Established
Flashing Indicates Activity
Green 48V PoE applied ‘Link’
Yellow 24V PoE applied
4.3 SFP LEDs
LED State Status
Off No link 9
10
Green Link established at 1000 Mbps (1 Gbps)
Flashing Indicates Activity
