widos 4600 - Hydraulic Aggregat with Pressure Gauge Analog; Elements on the Side of the Aggregate; Separating Device for Heating Element

Operating and Indicating Elements Chapter 4
30.08.19 Working Instructions WIDOS 4600 Page 17 of 32

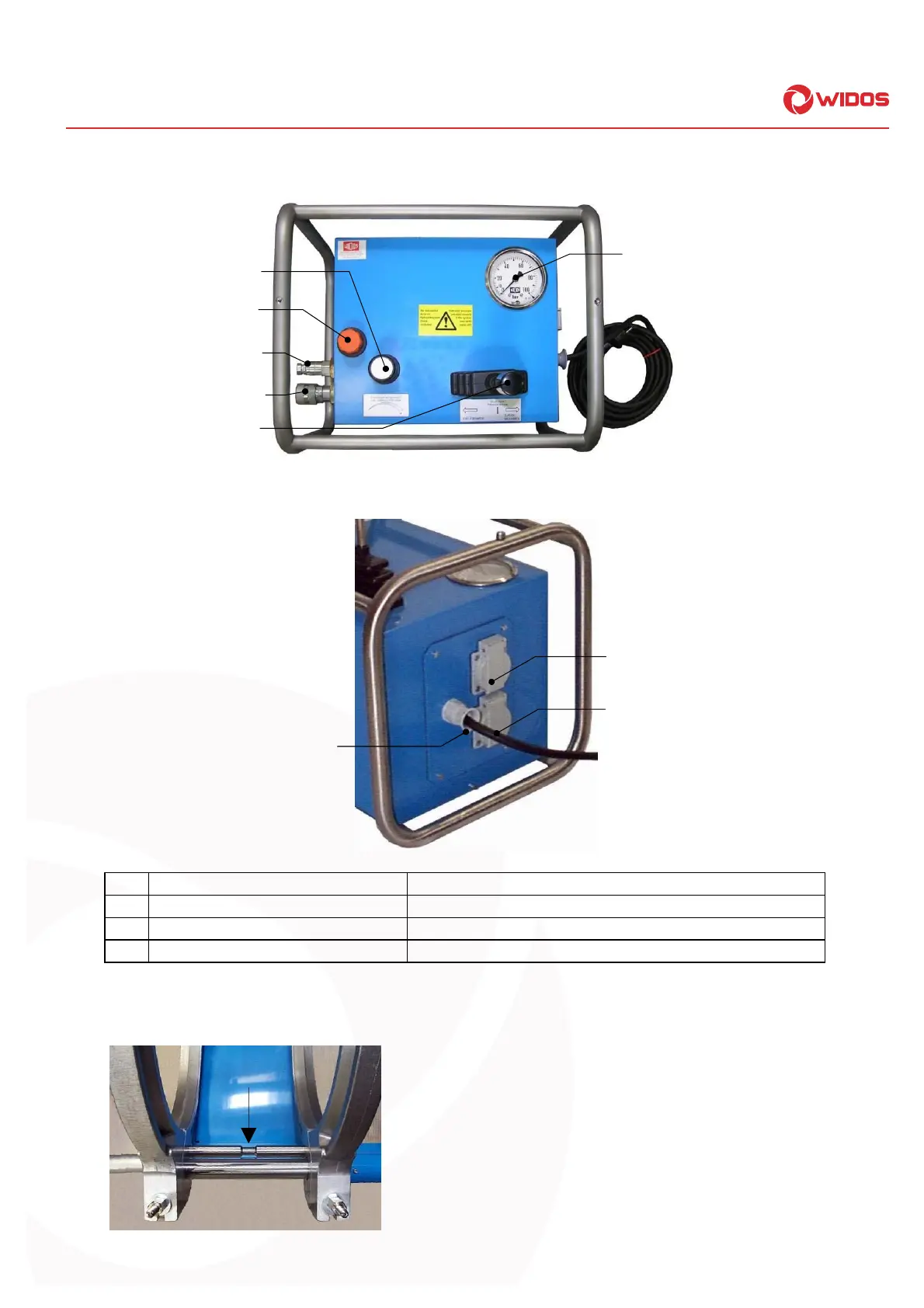

4.1.1 Hydraulic aggregat with pressure gauge analog
4.2. Elements on the side of the aggregate
No. Denomination Function
7 Plug socket 230 V / 50 Hz Possibility for connecting the planer / heating element
8 Plug socket 230 V / 50 Hz Possibility for connecting the planer / heating element
9 Mains cable 230 V / 50Hz Power supply
4.3. Separating device for heating element
There is a tear-off bar mounted between the movable and
the fixed clamping shells on the basic machine. It
prevents the heating element from sticking to the heated-
up pipe ends.
When inserting the heating element take care that it lies
in the zone of the throat of the tear-off bar (see arrow).
(6)
(3)
(5)
(4)
(2)
Pressure gauge
analog (version)
7
8
9
