30.08.19 Working Instructions WIDOS 4600 Page 6 of 32
1. Description of the Product
This chapter gives important basic information about the product and its prescribed use.
All technical details of the machine are put together as a general arrangement.
1.1. Usage and Purpose-oriented Use
The WIDOS 4600 has been designed for heating element butt welding of pipes and fittings with a
diameter range of Ø = 75 - 250 mm.
It is a machine for construction sites and particularly designed for the usage on-site, as well as in the
workshop.
For this reason, the frame is kept small so that it can be used even under difficult conditions
(e.g.building ditches).
All use going beyond is not purpose-oriented.
The manufacturer is not responsible for damages caused by misuse.
The risk is held only by the user.
Also part of the purpose-oriented use is
respecting all the indications of the working instructions and
performing the inspection and maintenance works.
1.2. Machine Overview

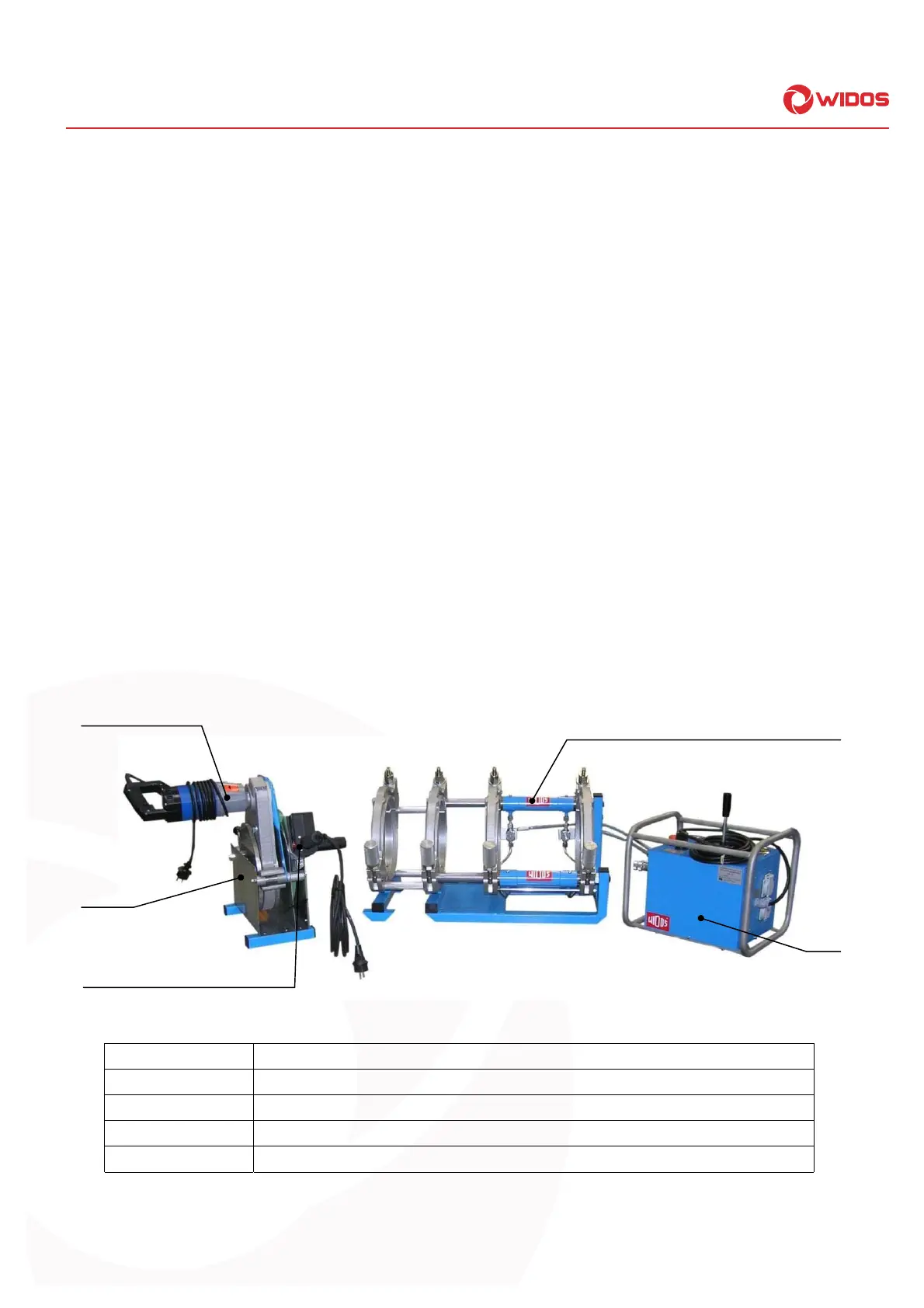

1 Planer
2 Reception box
3 Heating element
4 Basic machine with clamping tools
5 Hydraulic aggregate
1
5
3
2
4
