widos MAXIPLAST - Overview; Designation of product

Description of product Chapter 1
Chapter 1Chapter 1
Chapter 1
16.05.17 Working Instructions WIDOS MAXIPLAST Page 7 of 41
1.4.
1.4.1.4.

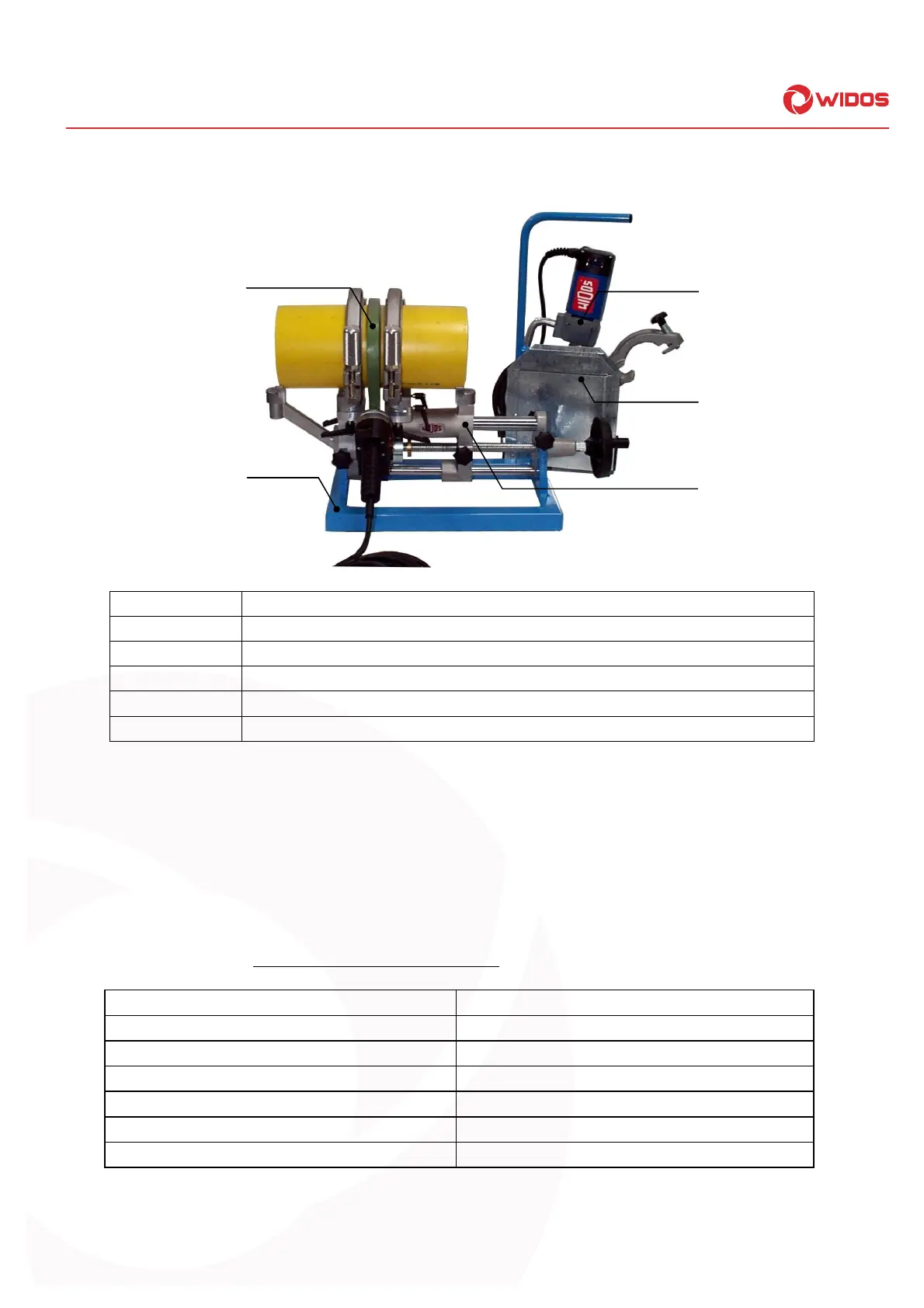

1.4. Overview
OverviewOverview
Overview
No.
No.No.
No. Denomination
DenominationDenomination
Denomination
1 Heating element
2 Basic machine
3 Planer
4 Protective box
5 Table support
1.5.
1.5.1.5.
1.5. Designation of product
Designation of productDesignation of product
Designation of product
The product is designated by a sign at the frame.
It contains the type of the machine, the serial number and the year of construction.
1.5.1
1.5.11.5.1
1.5.1 Technical data
Technical dataTechnical data
Technical data
1.5.1.1 WIDOS MAXIPLAST
MAXIPLASTMAXIPLAST
MAXIPLAST General data
Material: PP, PE, PVDF,
Dimensions of pipes: Outside-∅ = 50 - 160 mm
Transport box (LxBxH): 630 x 505 x 562 mm
Weight (without packing): 45 kg
Weight transportbox: appr. 14 kg
Fuse: 16 A
Wire cross section: 1,5 mm²
1
2
3
4
5
