WIKA A-10 User Manual

5WIKA operating instruction pressure transmitter, model A-10




EN
11218720.15 07/2018 EN/DE/FR/ES
2. Design and function
2. Design and function

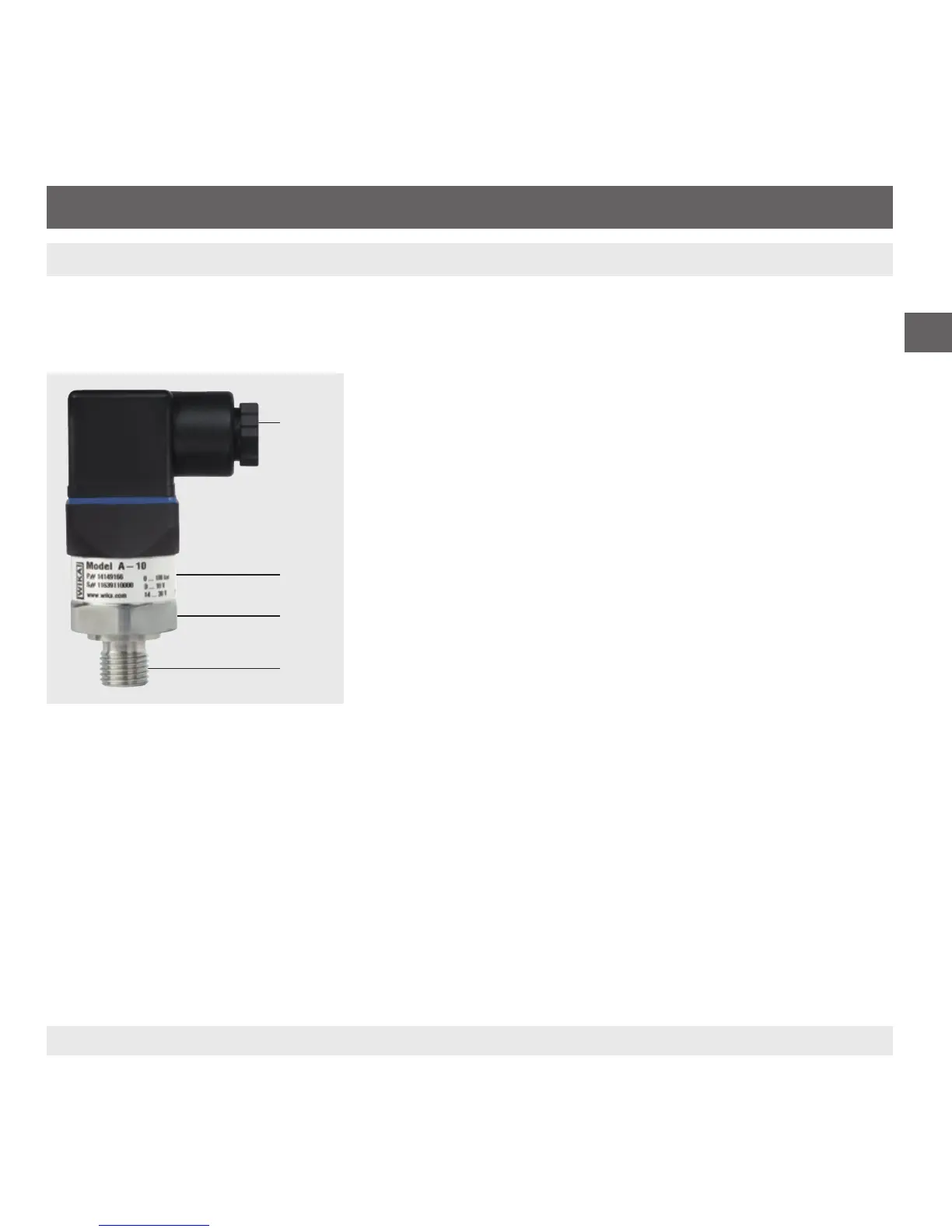

2.1 Overview

Electrical connection (depending on version)

Case; product label

Process connection, spanner flats

Process connection, thread
2.2 Scope of delivery
■
Pressure transmitter
■
Operating instructions
Cross-check scope of delivery with delivery note.

WIKA A-10 Specifications

General

Ingress Protection	IP65, IP67
Material	Stainless steel
Output Signal	4 ... 20 mA, 0 ... 10 V, 0 ... 5 V, 1 ... 5 V
Accuracy	≤ ±0.5 % of span
Process Connection	1/4 NPT, 1/2 NPT
Electrical Connection	M12 x 1
Supply Voltage	12...30 V DC
