18 WIKA operating instructions model CPG1000
11568047.02 08/2012 GB/D
GB
4. Design and function
4
3
2
1
8
7
6
5
4.4 Integrated data logger
From the rmware Version 3.00 onwards, the CPG1000 has an integrated data logger. This
data logger can be activated and operated using the CPGLog software. For this, see the
CPGLog operating instructions.
4.5 External voltage supply
The standard version is supplied with three AA alkaline batteries. In the optional DC 24V
powered version with an external voltage supply, the alkaline batteries are not installed.
Connect the DC 24 V voltage supply to the terminals at the rear of the measuring instru-
ment. Ensure the polarity is correct. Do not insert any batteries if an external power supply
is being used.
WARNING!
Prior to connecting the mains adapter to the mains power supply make
sure that the operating voltage specied on the mains adapter matches the
mains voltage.
Measuring instruments with an external power supply unit are supplied
without batteries inserted. For operation with an external voltage source,
batteries MUST NOT be inserted. Measuring instruments with an external
power supply unit are not approved for the hazardous areas.

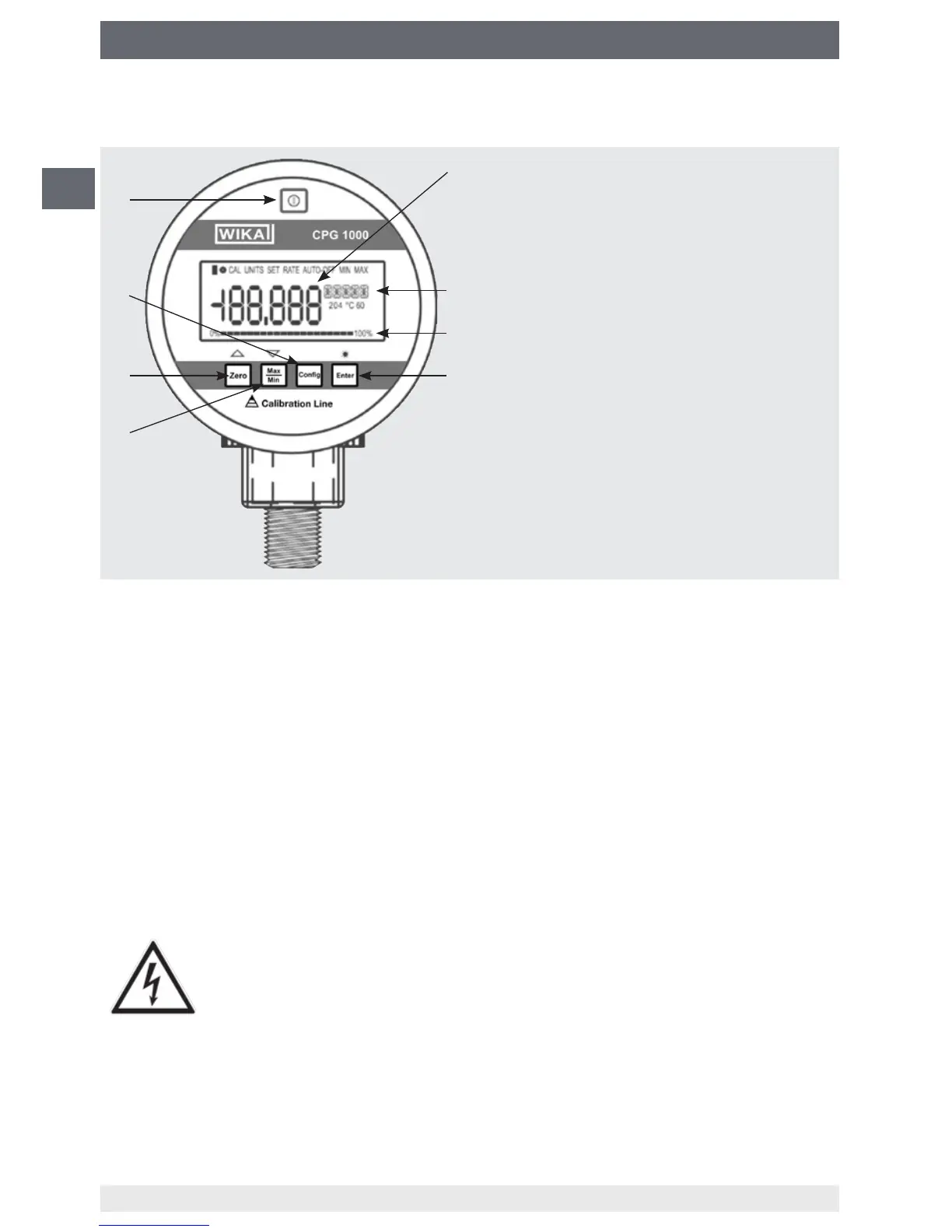

4.3 Front foil of the CPG1000 precision digital pressure gauge
1) Pressure display
2) Currently-set unit
3) Bargraph indicates the current pressure
graphically
4) Selecting a conguration option
Turning the backlighting on and o
5) Display of the MIN/MAX values, scrolls the
menu display backwards
6) Zero point adjustment carried out by
pressing, scrolls the menu display forward
7) Open the conguration menu
8) Switches the precision digital pressure
gauge on and o
