WIKA operating instructions model CPG1000
11568047.02 08/2012 GB/D
GB

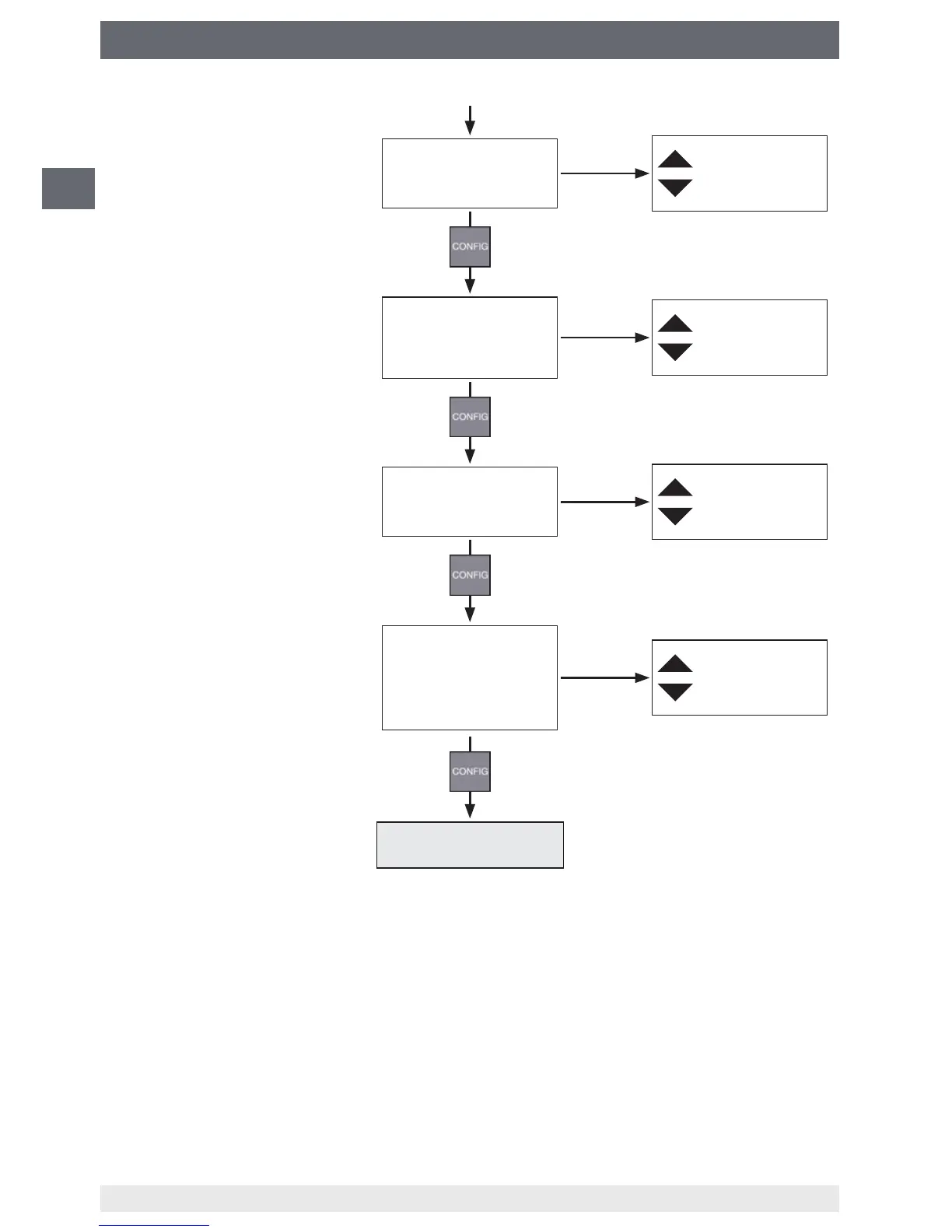

6.
Commissioning, operation
Operating mode
Damping
lock/unlock
Sampling rate
lock/unlock
T
are function
lock/unlock
UnLOC
LOC
UnLOC
LOC
UnLOC
LOC
Setting see
chapter 6.3
User-dened unit
(enter scaling)
SET F
AC
TR
23
25
Table of Contents
English
3
Default Chapter
3
Table of Contents
3
1 General Information 4 GB
4
2 Safety
6
Intended Use
6
Personnel Qualification
7
Additional Safety Instructions for Instruments Per ATEX
7
Immunity (Appendix A)
8
Ex Na IIB T6
8
Special Hazards
9
Atex
9
Labelling/Safety Marks
11
3 Specifications
12
Measuring Range
12
Mbar 68.94757 68.948 1,034.2
12
Kpa 6.894757 6.8948 103.42
15
Mpa 0.00689476 0.0069 0.1034 0.2068 0.6895 2.0684 3.4474
15
Mmhg (0 °C) 51.71507 51.715 775.73
15
Inhg (0 °C) 2.03603 2.0360 30.540 61.081 203.60
15
Cmh 2 O (4 °C) 70.3089 70.309 1,054.6
15
Cmh 2 O (20 °C) 70.4336 70.434 1,056.5
15
Mmh 2 O (4 °C) 703.089 703.09 10,546 21,093 70,309 -- 1) -- 1)
15
Mmh O (20 °C)
15
Inh 2 O (4 °C) 27.68067 27.681 415.21
15
Inh 2 O (60 °F) 27.70759 27.708 415.61
15
4 Design and Function
17
Description
17
Scope of Delivery
17
Front Foil of the CPG1000
18
Integrated Data Logger
18
External Voltage Supply
18
Battery Replacement
19
Battery Life Time
19
RS-232 Interface
19
Connections
19
5 Transport, Packaging and Storage
20
6 Commissioning, Operation
21
Normal Operation
21
Setup and Configuration
21
Supervisor Mode (Control Mode)
26
7 Maintenance and Cleaning and Servicing
27
8 Faults
28
9 Dismounting, Return and Disposal
29
10 Accessories
30
Appendix 1: EC Declaration of Conformity for CPG1000
31
Appendix 2: EC-Type Examination Certificate for CPG1000
32
Deutsch
35
1 Allgemeines
36
2 Sicherheit
38
Bestimmungsgemäße Verwendung
38
Personalqualifikation
39
Zusätzliche Sicherheitshinweise für Gerät nach ATEX
39
Besondere Gefahren
41
Beschilderung/Sicherheitskennzeichnungen
43
3 Technische Daten
44
4 Aufbau und Funktion
49
Beschreibung
49
Lieferumfang
49
Frontfolie des CPG1000
50
Integrierter Datenlogger
50
Stromversorgung
50
Batteriewechsel
51
Batterielebensdauer
51
RS-232-Schnittstelle
51
Anschlüsse
51
5 Transport, Verpackung und Lagerung
52
6 Inbetriebnahme, Betrieb
53
Normalbetrieb
53
Setup und Konfiguration
53
Supervisormodus (Überwachungsmodus)
58
7 Wartung, Reinigung und Service (Rekalibrierung)
59
8 Störungen
60
9 Demontage, Rücksendung und Entsorgung
61
10 Zubehör
62
Anlage 1: EG-Konformitätserklärung für CPG1000
63
Anlage 2: EG-Baumusterprüfbescheinigung für CPG1000
64
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the WIKA CPG1000 and is the answer not in the manual?
Ask a question
WIKA CPG1000 Specifications
General
Brand
WIKA
Model
CPG1000
Category
Measuring Instruments
Language
English
Related product manuals
WIKA CPG1500
160 pages
WIKA CPG500
35 pages
WIKA CPH6200
92 pages
WIKA 821
68 pages
WIKA DIH50
64 pages
WIKA DG-10
108 pages
WIKA TR10-B
28 pages
WIKA TR10-A
28 pages
WIKA TR Series
148 pages
WIKA 232.50.100
60 pages
WIKA 232.30.100
68 pages
WIKA SENSeOR AMS01
29 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
