8 WIKA operating instructions pressure transmitter, model S-20
14043170.01 04/2013 GB/D/F/E
GB
If the serial number becomes illegible due to mechanical damage or overpainting, traceability will no longer be
possible.
Explanation of symbols
CE, Communauté Européenne
Instruments bearing this mark comply with the relevant European directives.
2. Safety
2.4 Labelling / safety marks

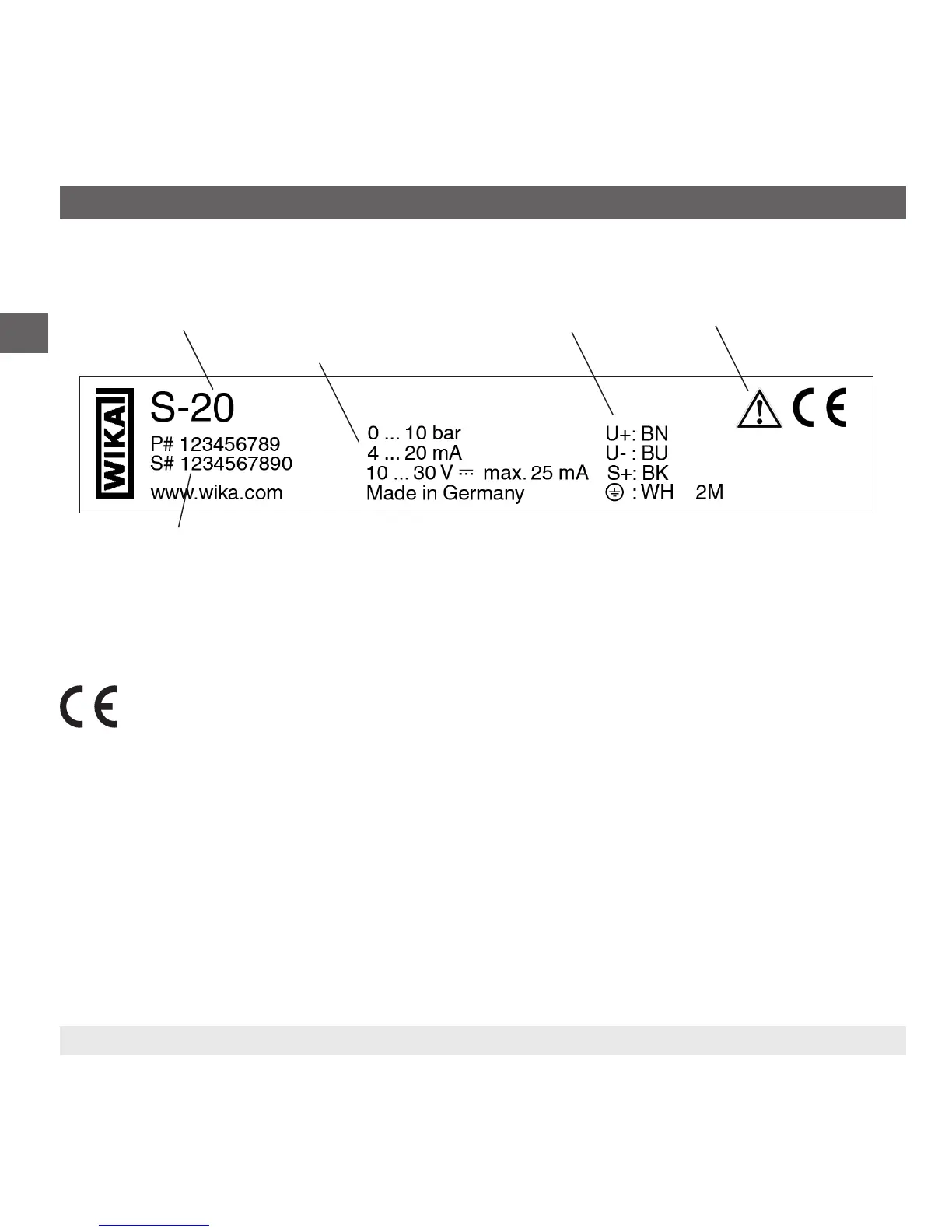

Product label
Model
P# product number
S# serial number
Measuring range
Output signal
Power supply
Pin assignment
see explanation of symbols

WIKA S-20 Specifications

General

Accuracy	≤ 0.5 % of span
Output Signal	4 ... 20 mA, 0 ... 10 V, 0.5 ... 4.5 V ratiometric
Process Connection	G ¼ NPT, ¼ NPT
Electrical Connection	M12 x 1
Materials (wetted)	Stainless steel
Temperature Range	-40 ... +125 °C
Ingress Protection	IP65
Power Supply	10 ... 30 V DC
