WIKA S-20 User Manual

9WIKA operating instructions pressure transmitter, model S-20
14043170.01 04/2013 GB/D/F/E
GB
3. Specications
3. Specications
Permissible temperature ranges
Medium Ambient Version
-30 ... +100 °C -30 ... +100 °C -
-40 ... +125 °C -40 ... +125 °C -
-40 ... +150 °C -40 ... +125 °C
1)
with cooling element
-40 ... +200 °C -40 ... +125 °C
1)
with cooling element
-20 ... +60 °C -20 ... +60 °C Oxygen applications
1)

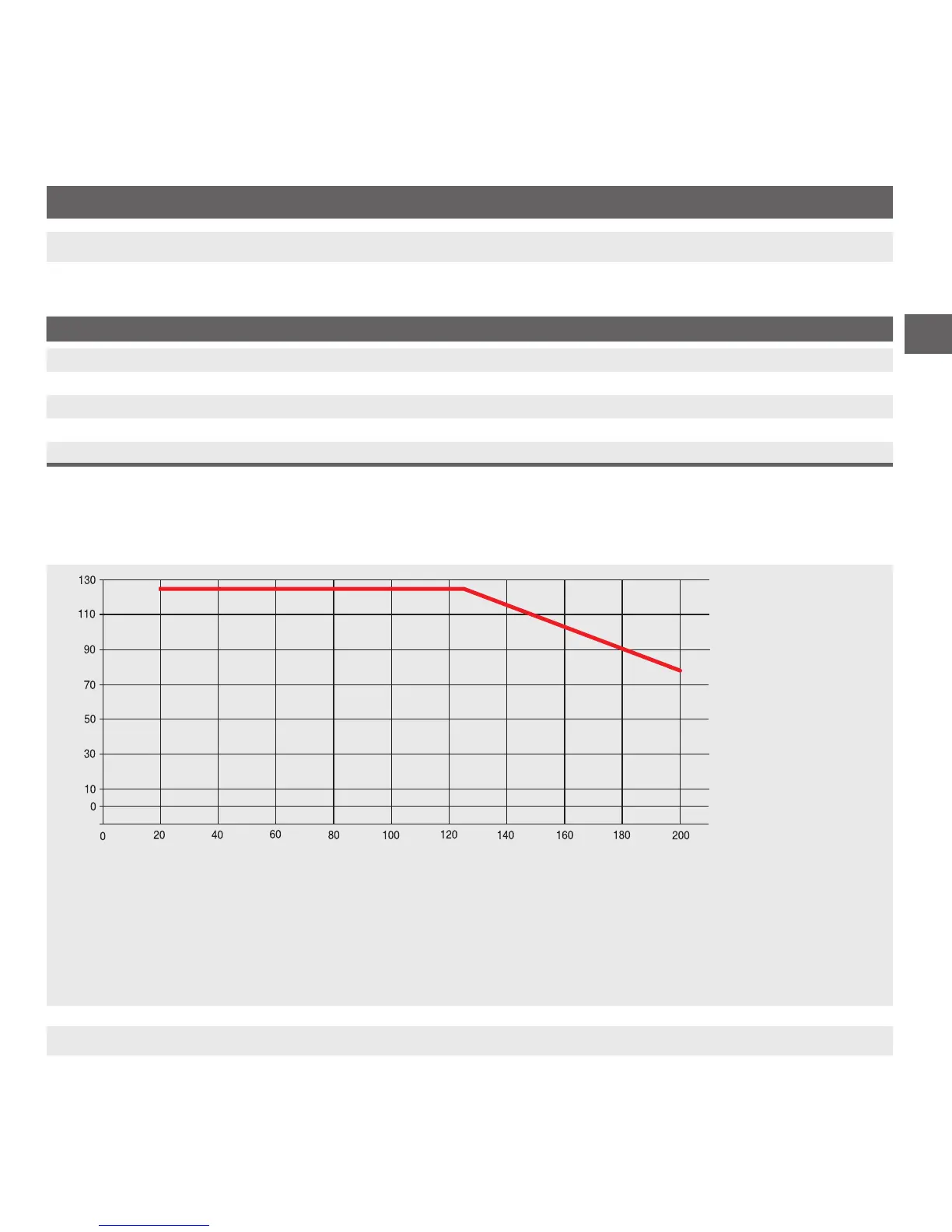

Derating curve and formula
Depending on the choice of sealing on the process connection and the electrical connection, there may be limitations
in the medium and the ambient temperatures.
Ambient temperature [°C]
Medium temperature [°C]
Maximum permissible ambient temperature
T
amb
(T
med
< 125 °C) = 125 °C
T
amb
(T
med
≥ 125 °C) = -0.62 x T
med
+ 202 °C
T
amb
= Ambient temperature [°C]
T
med
= Medium temperature [°C]
Maximum permissible medium temperature
T
med
(T
amb
< 80 °C) = 200 °C
T
med
(T
amb
≥ 80 °C) = -1.61 x T
amb
+ 326 °C

WIKA S-20 Specifications

General

Accuracy	≤ 0.5 % of span
Output Signal	4 ... 20 mA, 0 ... 10 V, 0.5 ... 4.5 V ratiometric
Process Connection	G ¼ NPT, ¼ NPT
Electrical Connection	M12 x 1
Materials (wetted)	Stainless steel
Temperature Range	-40 ... +125 °C
Ingress Protection	IP65
Power Supply	10 ... 30 V DC
