MONITORING SOLUTION ENERGY
SENSeOR AMS01 User Manual 10/29
www.senseor.com

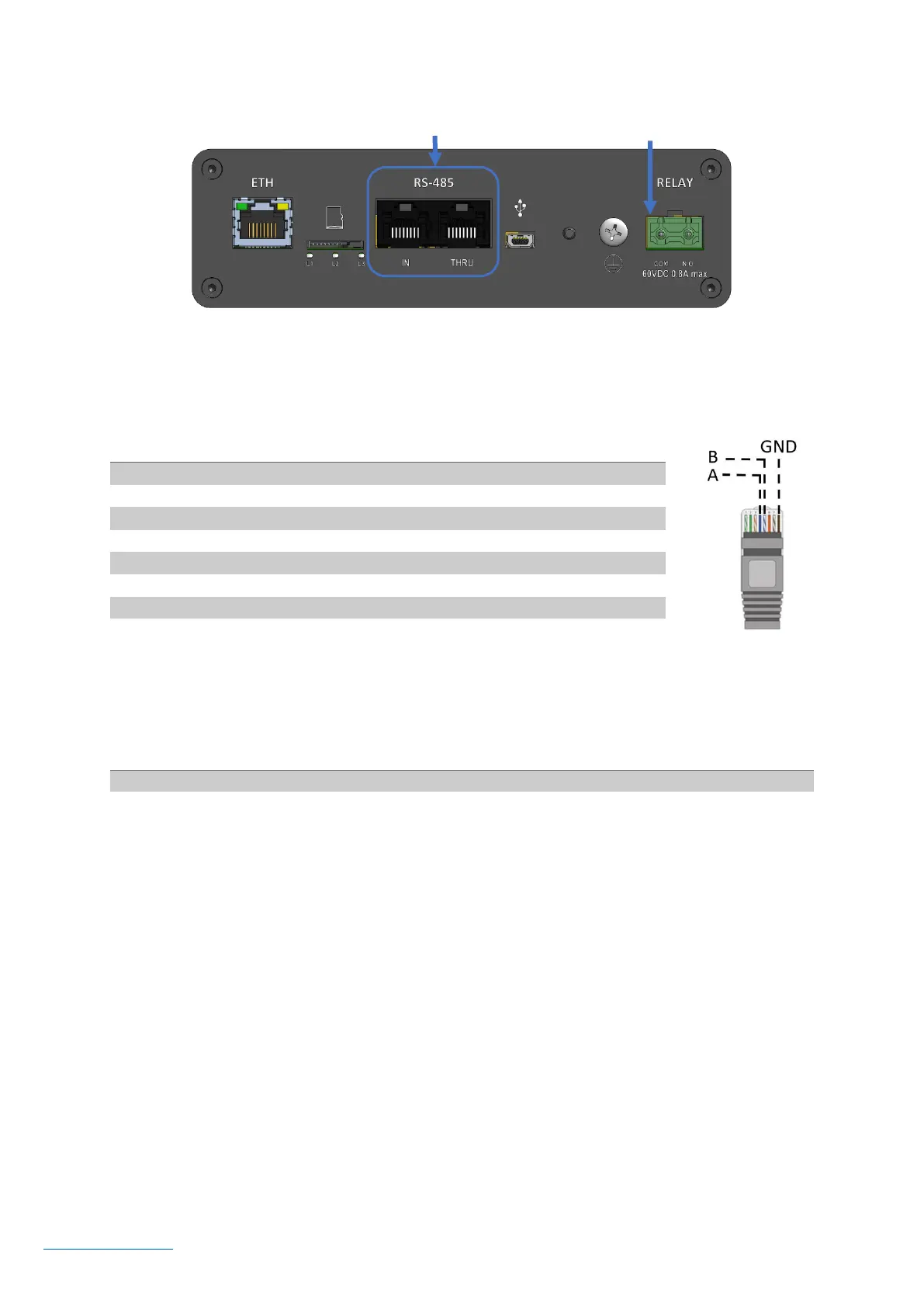

Figure 4: Front connection view
1.3.4 MODBUS RS485 (4)
Pin
Type
Description
1 (left)
-
Not used
2
-
Not used
3
-
Not used
4
A
Data +
5
B
Data -
6
-
Not used
7
-
Not used
8 (right)
GND
Ground
1.3.5 RELAY OUTPUT (5)
Pin
Type
Description
1 (left)
COM
Common for relay
2 (right)
N.O.
Alarm relay activation output
4
5
