1.3 CONNECTORS AND FUNCTIONS

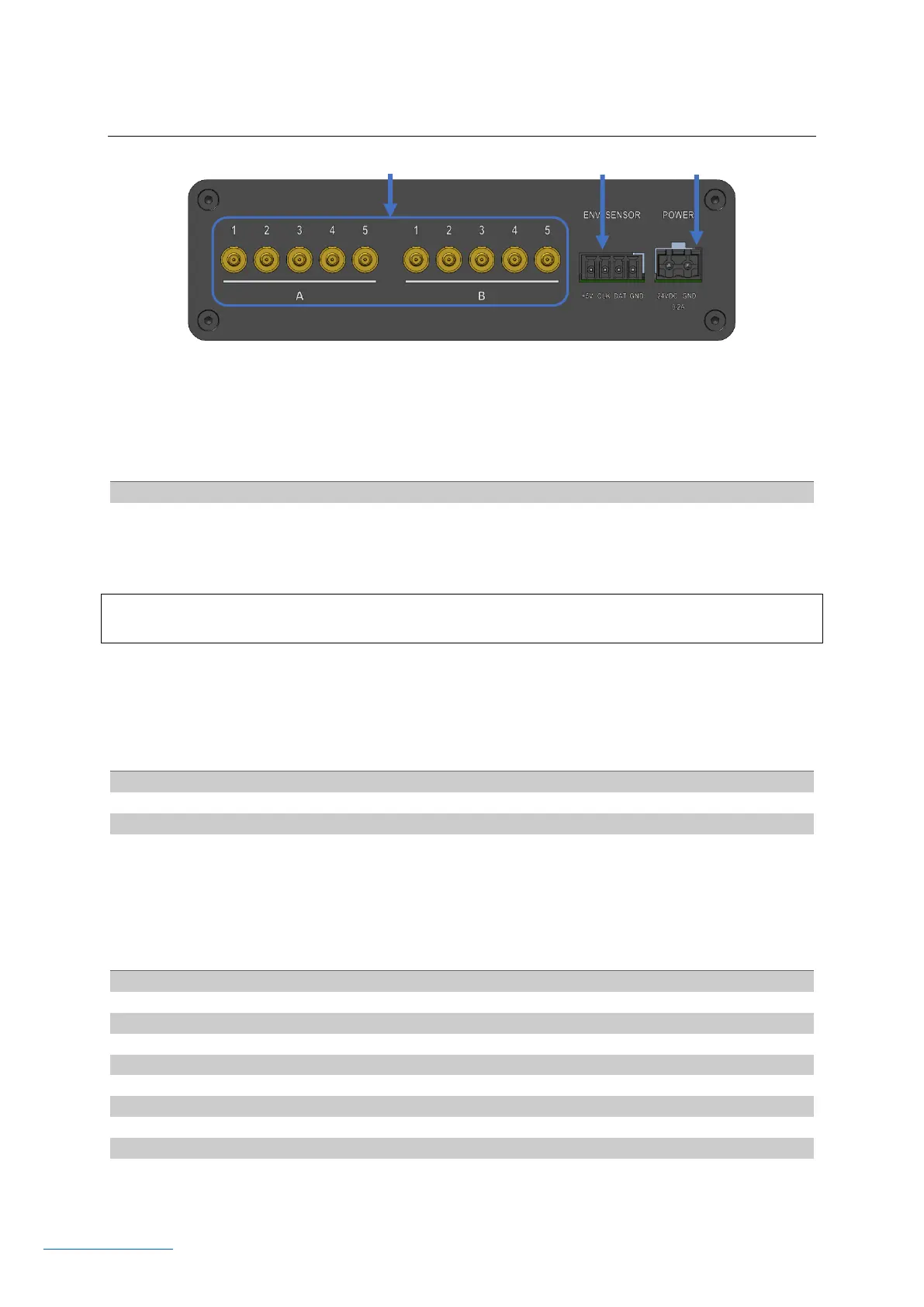

Figure 3: Rear connection view
1.3.1 INPUT POWER (1)
Pin
Type
Description
1 (left)
+24VDC
Main power supply input (24VDC)
2 (right)
GND
Ground
WARNING
DO NOT REVERSE THE POWER SUPPLY POLARITY, THIS MAY CAUSE ELECTRICAL DAMAGE.
1.3.2 ENVIRONMENTAL SENSOR (2)
Pin
Type
Description
1 (left)
+5VDC
Power supply of environmental sensor (5V out from reader)
2
DAT
Data
3
CLK
Clock
4 (right)
GND
Ground
1.3.3 RF ANTENNAS (3)
Connector
Type
Description
1A (left)
RF
RF antenna 1A
2A
RF
RF antenna 2A
3A
RF
RF antenna 3A
4A
RF
RF antenna 4A
5A
RF
RF antenna 5A
1B
RF
RF antenna 1B
2B
RF
RF antenna 2B
3B
RF
RF antenna 3B
4B
RF
RF antenna 4B
5B (right)
RF
RF antenna 5B
1
2
3
