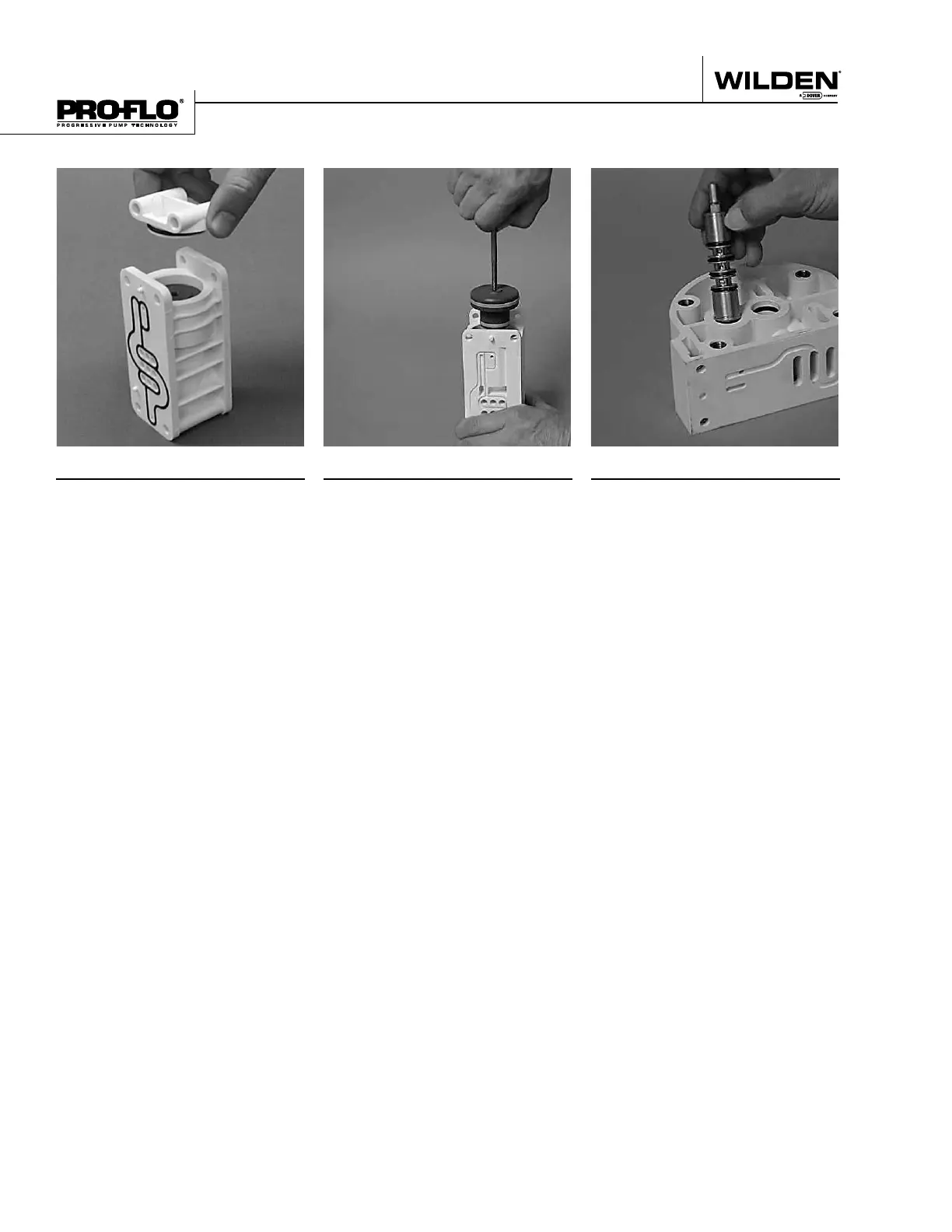

Step 4
Remove air valve end cap to expose
air valve spool by simply lifting up
on end cap once air valve bolts are
removed. Note: Pro-Flo V™ air
valve incorporates an end cap at
both end of the air valve.
Step 5
Remove the air valve spool from the air
valve body by threading one air valve
bolt into the end of the air valve spool
and gently sliding the spool out of the
air valve body. Inspect seals for signs
of wear and replace entire assembly if
necessary. Use caution when handling
air valve spool to prevent damaging
seals. Note: Seals should not be
removed from assembly. Seals are not
sold separately.
Step 6
Remove pilot sleeve from center
section. To do so, the air chambers
must be remove from thecenter
block which will expose the pilot
spool sleeve.
PRO-FLO
®
AIR DISTRIBUTION SYSTEM (ADS) DISASSEMBLY
WILDEN PUMP & ENGINEERING, LLC 30 WIL-11250-E-03
