Wilden P800 - Performance; Rubber-Fitted; TPE-Fitted

P800 PLASTIC
RUBBER-FITTED

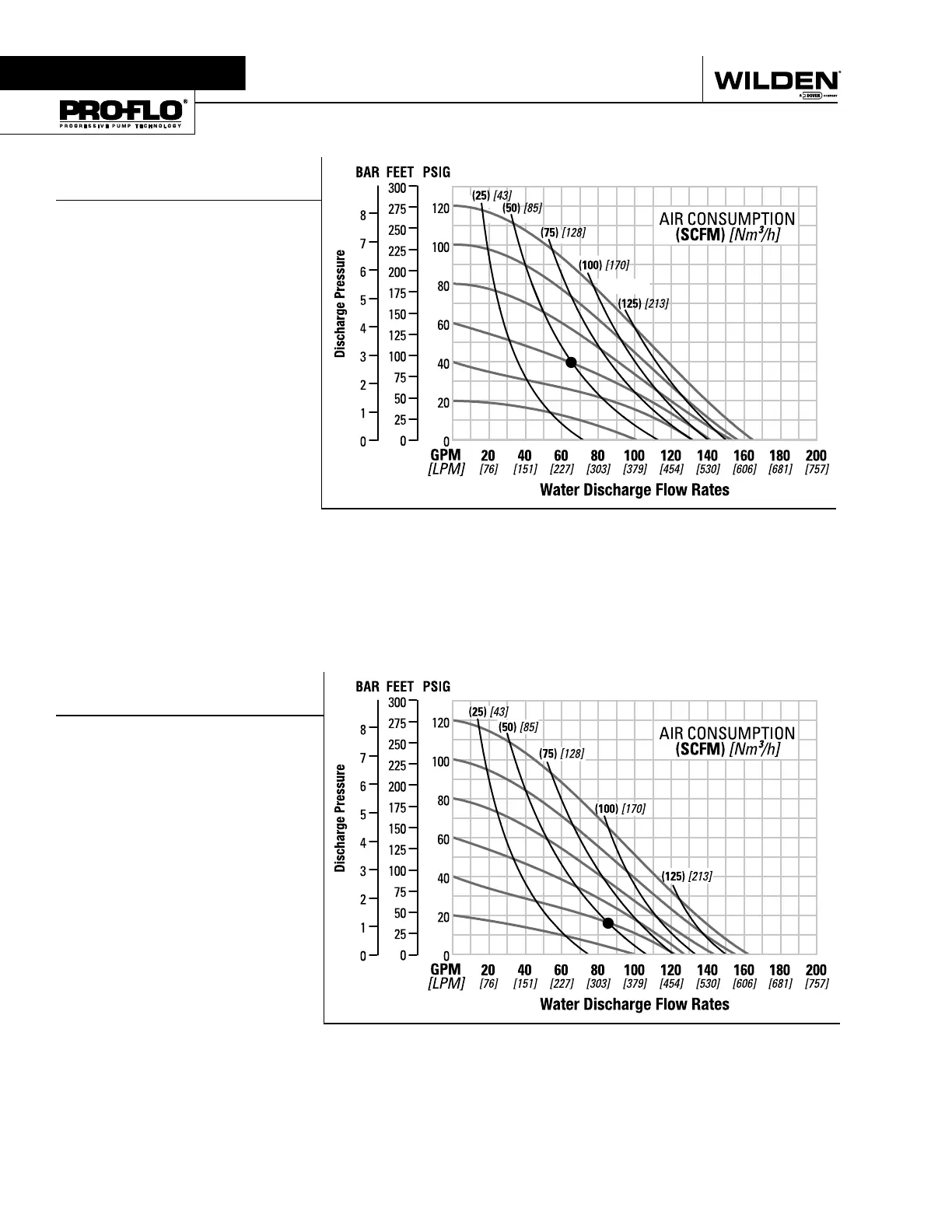

Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specifi ed so that daily operation
parameters will fall in the center of the pump performance curve.
Height ..................................805 mm (31.7")
Width .................................. 605 mm (23.8")
Depth .................................. 353 mm (13.9")
Est. Ship Weight
Polypropylene 32 kg (70 lbs)
PVDF 45 kg (99 lbs)
Air Inlet ....................................13 mm (1⁄2")
Inlet ............................................ 51 mm (2")
Outlet ......................................... 51 mm (2")
Suction Lift ..................... 6.23 m Dry (20.4')
8.65 m Wet (28.4')
Displacement/Stroke 2.75 l (0.727 gal.)
1
Max. Flow Rate ............ 624 lpm (165 gpm)
Max. Size Solids .....................6.4 mm (1⁄4")
1
Displacement per stroke was calculated at
4.8 Bar (70 psig) air inlet pressure against
a 2 bar (30 psig) head pressure.
Example: To pump 246 lpm (65 gpm)
against a discharge head pressure of 2.8
Bar (40 psig) requires 4.1 bar (60 psig) and
85 Nm
3
/h (50 scfm) air consumption. (See
dot on chart.)
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure.
P800 PLASTIC
TPE-FITTED
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specifi ed so that daily operation
parameters will fall in the center of the pump performance curve.
Height ..................................805 mm (31.7")
Width .................................. 605 mm (23.8")
Depth .................................. 353 mm (13.9")
Est. Ship Weight
Polypropylene 32 kg (70 lbs)
PVDF 45 kg (99 lbs)
Air Inlet ....................................13 mm (1⁄2")
Inlet ............................................ 51 mm (2")
Outlet ......................................... 51 mm (2")
Suction Lift ................... 5.54 m Dry (18.16')
5.19 m Wet (17.0')
Displacement/Stroke .... 2.78 l (0.735 gal.)
1
Max. Flow Rate ............ 615 lpm (162 gpm)
Max. Size Solids .....................6.4 mm (1⁄4")
1
Displacement per stroke was calculated at
4.8 bar (70 psig) air inlet pressure against a
2 bar (30 psig) head pressure.
Example: To pump 321.8 lpm (85 gpm)
against a discharge head pressure of
1.2 bar (17 psig) requires 2.8 bar (40 psig)
and 85 Nm
3
/h (50 scfm) air consumption.
(See dot on chart.)
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure.
