Wilden P800 - Reduced Stroke PTFE-Fitted; Full Stroke-Fitted

P800 PLASTIC
REDUCED STROKE PTFE-FITTED
P800 PLASTIC
FULL STROKE PTFE-FITTED

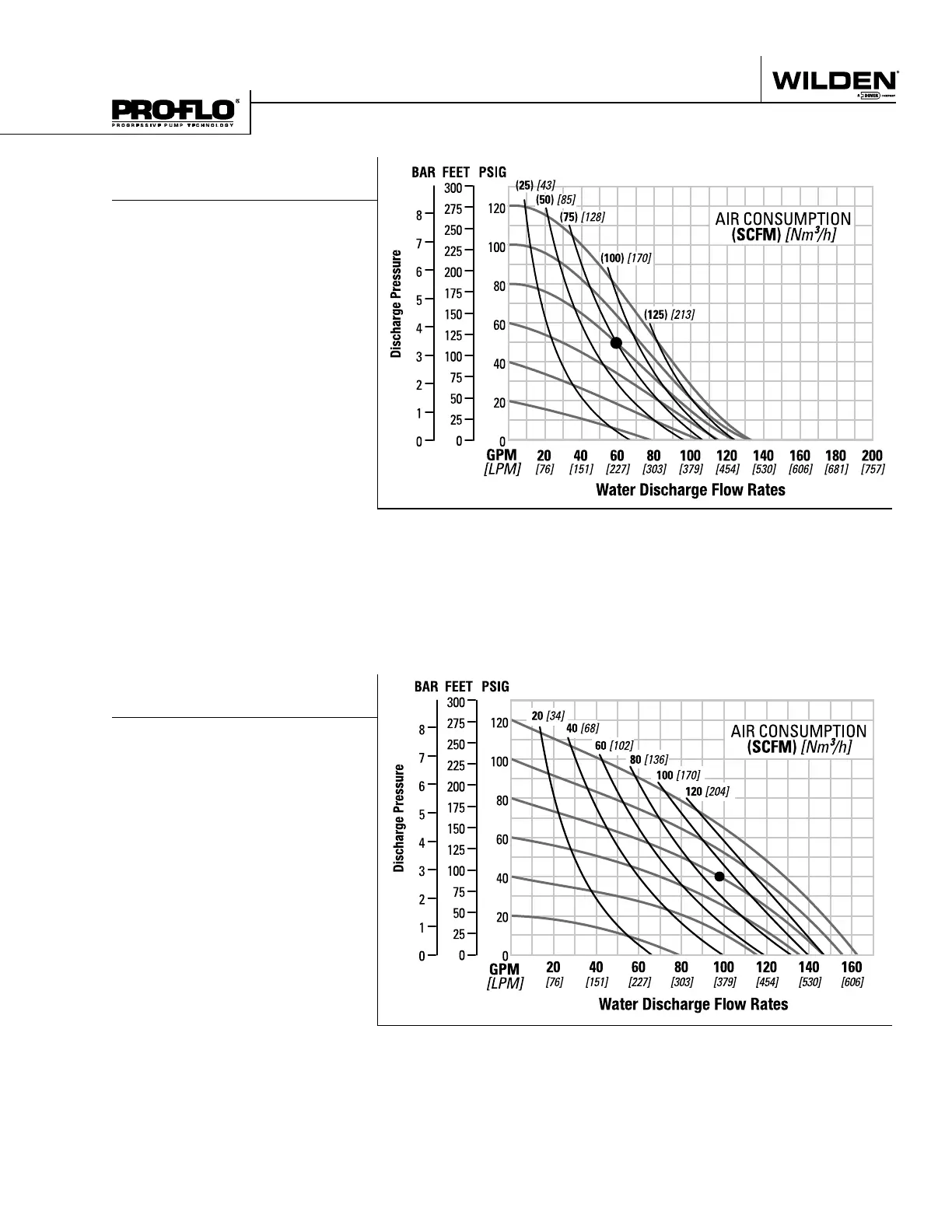

Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specifi ed so that daily operation
parameters will fall in the center of the pump performance curve.
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specifi ed so that daily operation
parameters will fall in the center of the pump performance curve.
Height ..................................805 mm (31.7")
Width .................................. 605 mm (23.8")
Depth .................................. 353 mm (13.9")
Est. Ship Weight
Polypropylene 32 kg (70 lbs)
PVDF 45 kg (99 lbs)
Air Inlet ....................................13 mm (1⁄2")
Inlet ............................................ 51 mm (2")
Outlet ......................................... 51 mm (2")
Suction Lift ................... 4.15 m Dry (13.62')
8.65 m Wet (28.4')
Displacement/Stroke .... 1.73 l (0.457 gal.)
1
Max. Flow Rate ............ 504 lpm (133 gpm)
Max. Size Solids .....................6.4 mm (1⁄4")
1
Displacement per stroke was calculated at
4.8 bar (70 psig) air inlet pressure against a
2 bar (30 psig) head pressure.
Example: To pump 219.6 lpm (58 gpm)
against a discharge head pressure of 3.4
Bar (50 psig) requires 5.5 bar (80 psig) and
128 Nm
3
/h (75 scfm) air consumption. (See
dot on chart.)
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure.
Height ................................. 804 mm (31.7”)
Width ..................................604 mm (23.8”)
Depth .................................. 353 mm (13.9”)
Ship Weight . Polypropylene 32 kg (70 lbs.)
PVDF 45 kg (99 lbs.)
Air Inlet ...................................13 mm (1/2”)
Inlet ............................................51 mm (2”)
Outlet .........................................51 mm (2”)
Suction Lift ........................ 5.9m Dry (19.5’)
9.0 m Wet (29.5’)
Disp. Per Stroke ................. 2.5 l (0.67 gal.)
1
Max. Flow Rate ............ 615 lpm (162 gpm)
Max. Size Solids ....................6.4 mm (1/4”)
1
Displacement per stroke was calculated at
4.8 bar (70 psig) air inlet pressure against a
2.1 bar (30 psig)head pressure.
Example: To pump 98 GPM against a
discharge head of 40 psigrequires 80 psig
and 92 scfm air consumption.
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure.
60 [102]
100 [170]
80 [136]
120 [204]
20 40 60 80 100 120 140 160
[76] [151] [227] [303] [379] [454] [530] [606]
40 [68]
20 [34]
WIL-11250-E-03 7 WILDEN PUMP & ENGINEERING, LLC
PERFORMANCE
