Wilden P800 - Dimensional Drawings

P800 Plastic Side-Ported
Section 4

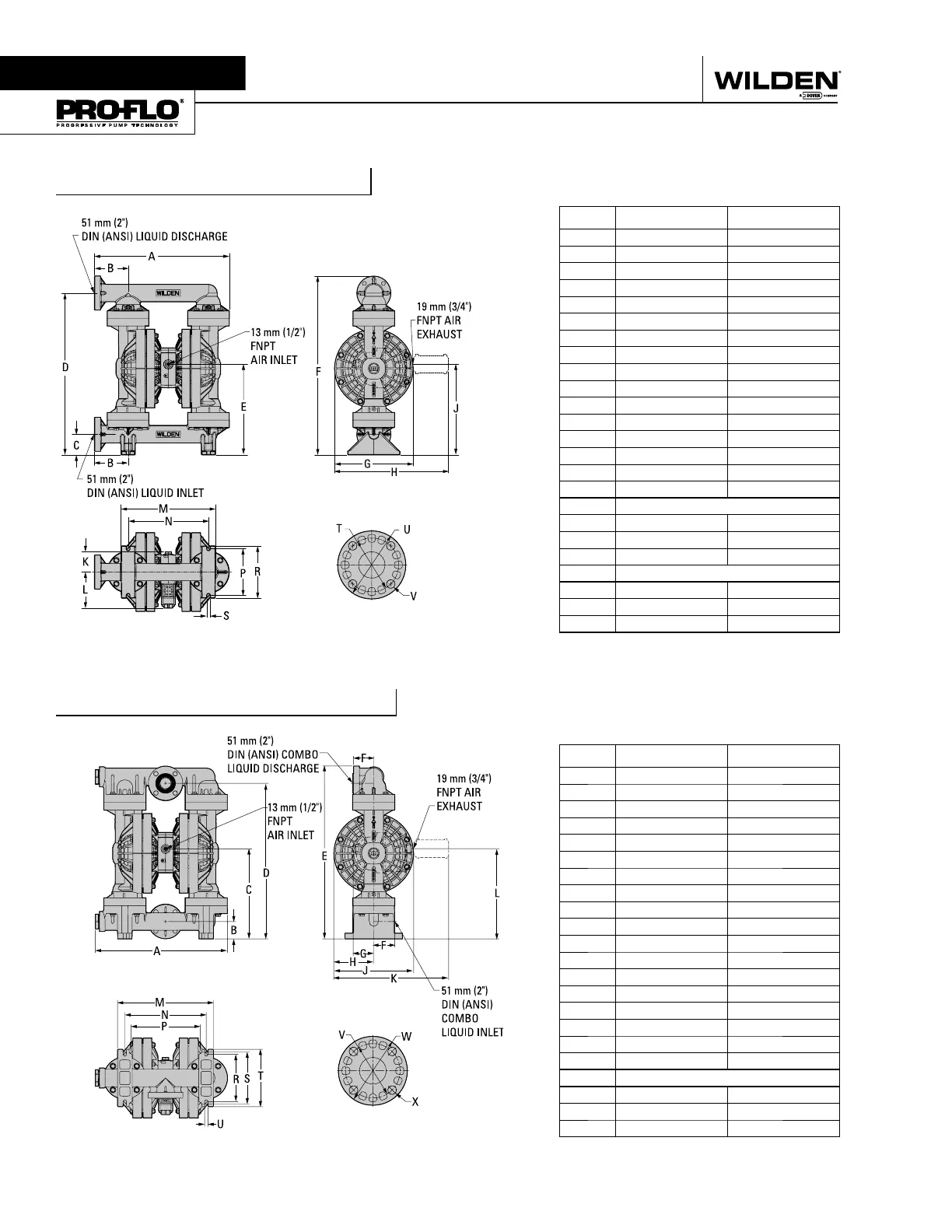

DIMENSIONAL DRAWINGS
P800 Plastic Center-Ported
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 584 23.0
B 76 3.0
C 396 15.6
D 688 27.1
E 765 30.1
F 89 3.5
G 91 3.6
H 175 6.9
J 353 13.9
K 508 20.0
L 399 15.7
M 424 16.7
N 361 14.2
P 307 12.1
R 208 8.2
S 229 9.0
T 254 10.0
U 15 0.6
DIN / ANSI COMBO
V
152 DIA. 6.0 DIA.
W
122 DIA. 4.8 DIA.
X
20 DIA. 0.8 DIA.
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 605 23.8
B 150 5.9
C 91 3.6
D 729 28.7
E 406 16.0
F 805 31.7
G 353 13.9
H 508 20.0
J 406 16.0
K 84 3.3
L 122 4.8
M 424 16.7
N 361 14.2
P 208 8.2
R 234 9.2
S 15 0.6
DIN FLANGE
T 125 DIA. 4.9 DIA.
U 165 DIA. 6.5 DIA.
V 18 DIA. 0.7 DIA.
ANSI FLANGE
T 122 DIA. 4.8 DIA.
U 152 DIA. 6.0 DIA.
V 20 DIA. 0.8 DIA.
WILDEN PUMP & ENGINEERING, LLC 4 WIL-11250-E-03
