Wilden P800 - Page 7

PX800 Plastic Center-Ported
PX800 Plastic Side-Ported
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 605 23.8
B 150 5.9
C 729 28.7
D 91 3.6
E 406 16.0
F 805 31.7
G 48 1.9
H 178 7.0
J 356 14.0
K 452 17.8
L 414 16.3
M 424 16.7
N 361 14.2
P 208 8.2
R 234 9.2
S 15 0.6
DIN FLANGE
T 125 DIA. 4.9 DIA.
U 165 DIA. 6.5 DIA.
V 18 DIA. .7 DIA.
ANSI FLANGE
T 122 DIA. 4.8 DIA.
U 154 DIA. 6.0 DIA.
V 20 DIA. .8 DIA.
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 584 23.0
B 76 3.0
C 396 15.6
D 688 27.1
E 765 30.1
F 89 3.5
G 48 1.9
H 178 7.0
J 356 14.0
K 452 17.8
L 404 15.9
M 424 16.7
N 361 14.2
P 307 12.1
R 208 8.2
S 229 9.0
T 254 10.0
U 15 0.6
DIN / ANSI COMBO
V 152 DIA. 6.0 DIA.
W 122 DIA. 4.8 DIA.
X 20 DIA. .8 DIA.
WIL-11250-E-03 5 WILDEN PUMP & ENGINEERING, LLC

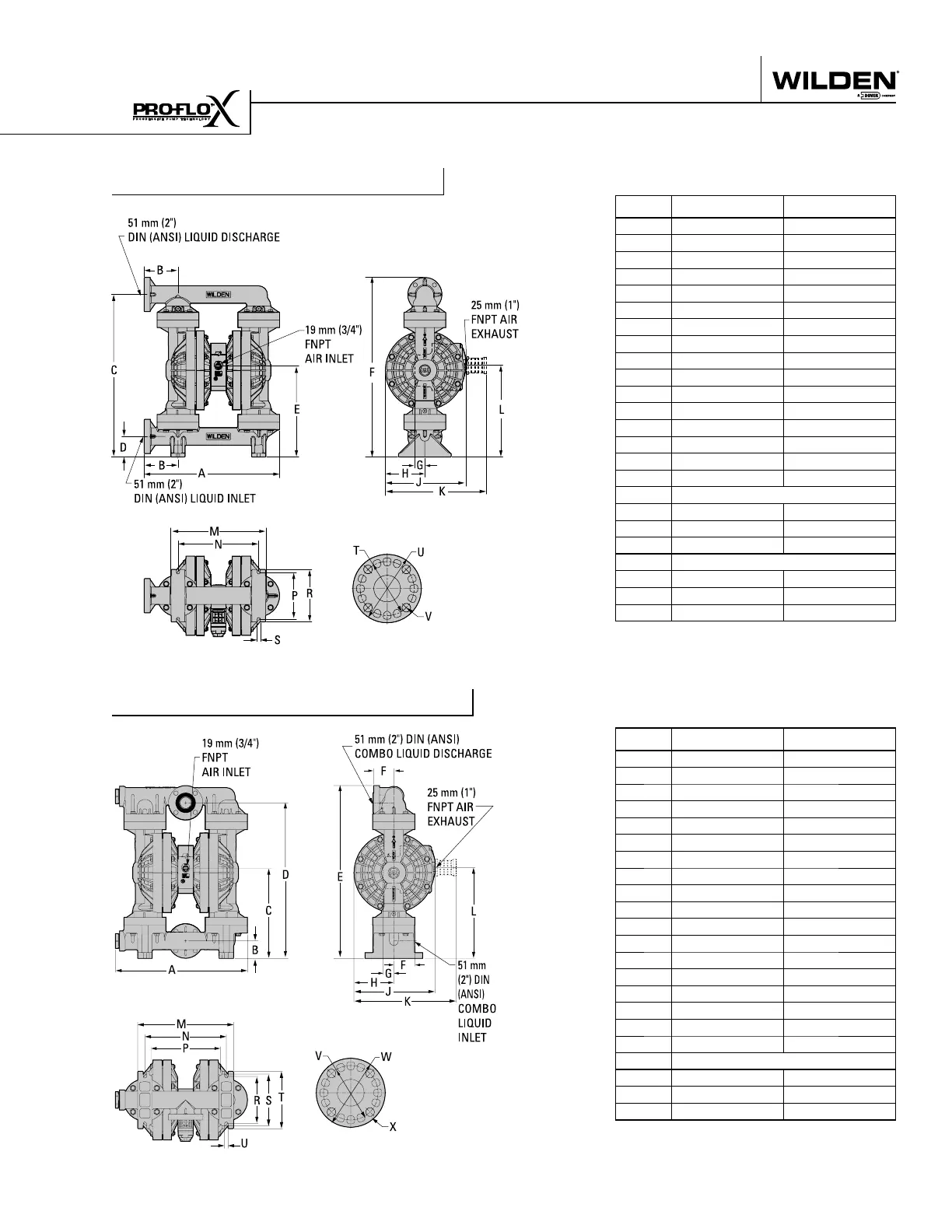

DIMENSIONAL DRAWING
