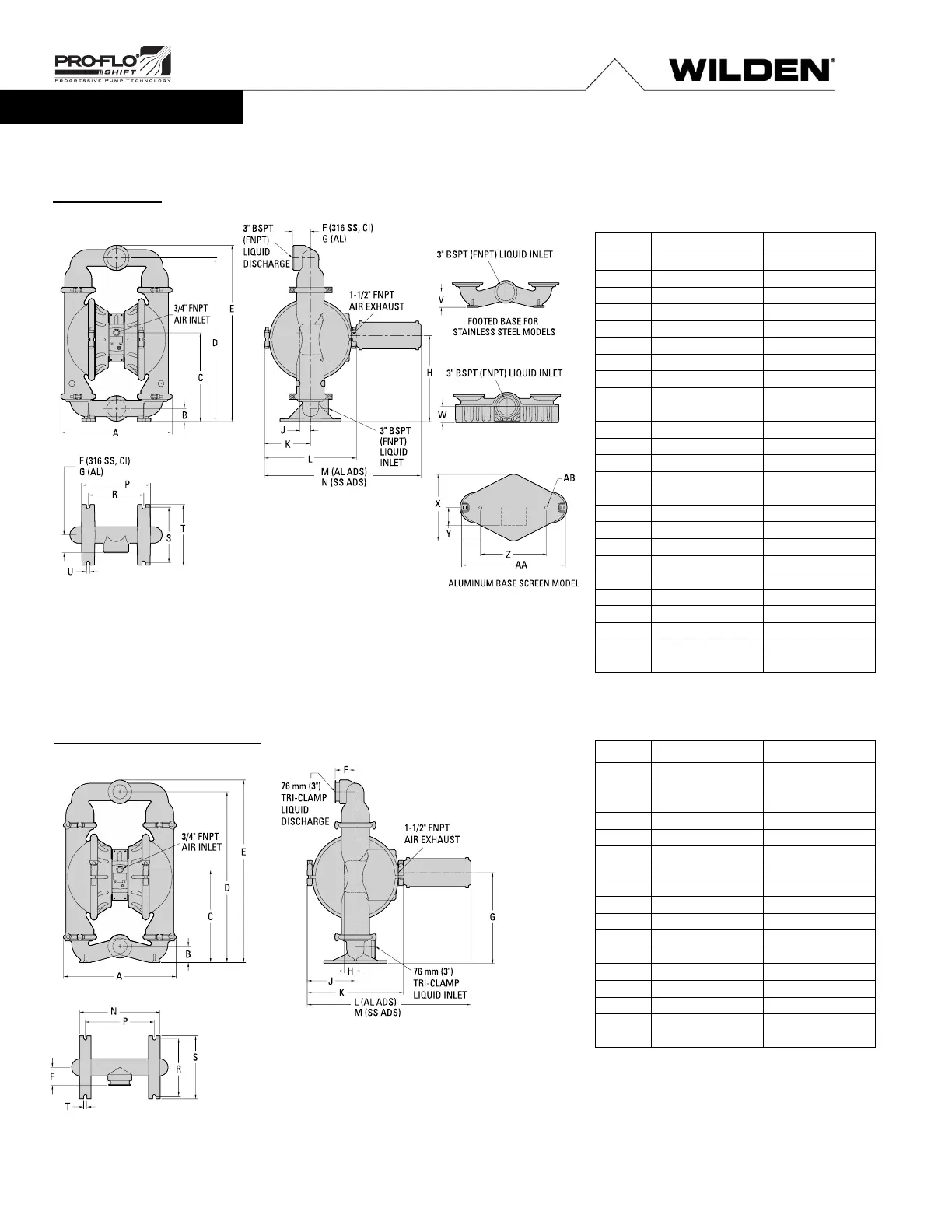

Wilden PS15 - Section 4: Dimensional Drawings

WIL-10420-E-10 Wilden
®
7
PS15 Metal
PS15 Metal Saniflo
TM
DIMENSIONS
ITEM
METRIC (mm)
STANDARD (inch)
A
514
20.2
B
61
2.4
C
411
16.2
D
758
29.8
E
816
32.1
F
70
2.8
G
83
3.3
H
399
15.7
J
49
1.9
K
213
8.4
L
425
16.7
M
722
28.4
N
718
28.3
P
368
14.5
R
307
12.1
S
257
10.1
T
281
11.1
U
16
0.6
V
71
2.8
W
74
2.9
X
308
12.1
Y
83
3.3
Z
305
12.0
AA
480
18.9
AB
16 DIA.
0.6 DIA.
LW0254 REV. E
DIMENSIONS
ITEM
METRIC (mm)
STANDARD (inch)
A
521
20.5
B
71
2.8
C
409
16.1
D
767
30.2
E
810
31.9
F
89
3.5
G
401
15.8
H
48
1.9
J
216
8.5
K
424
16.7
L
722
28.4
M
715
28.2
N
356
14.0
P
305
12.0
R
257
10.1
S
279
11.0
T
15 DIA.
0.6 DIA.
LW0255 REV. B
DIMENSIONAL DRAWING
Section 4
