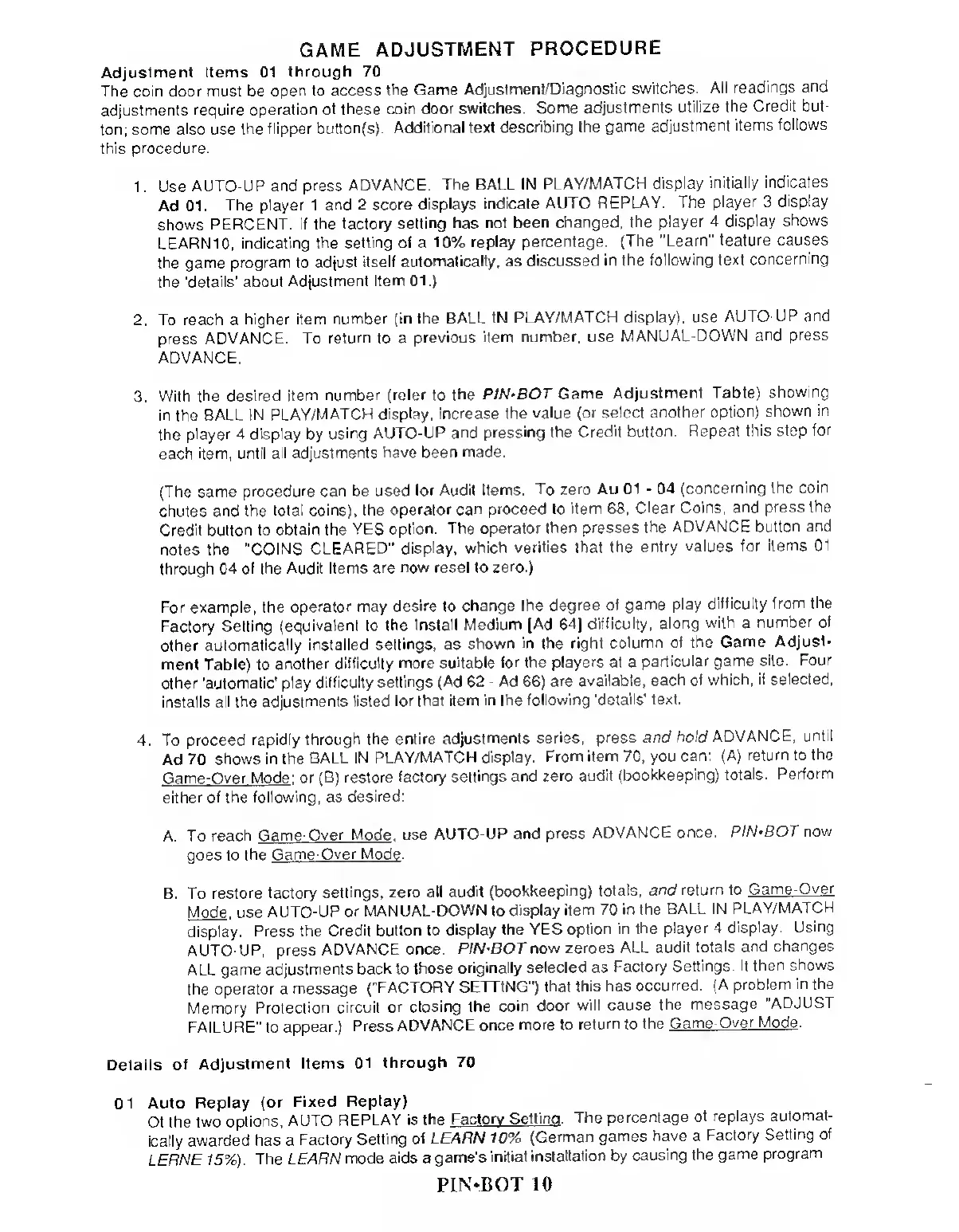

Williams PIN-BOT - Game Adjustment Procedure

GAME ADJUSTMENT
PROCEDURE
Adjustment Items
01
through
70
The coin
door must
be
open to access
the Game
Adjustment/Diagnostic
switches.
All readings
and
adjustments
require
operation of these
coin door switches.
Some
adjustments
utilize the
Credit
but-
ton; some
also
use
the
flipper button(s).
Additional text
describing the
game
adjustment items
follows
this
procedure.
1. Use
AUTO-UP and
press
ADVANCE. The BALL
IN
PLAY/MATCH display
initially indicates
Ad 01.
The player
1 and 2 score
displays
indicate AUTO
REPLAY.
The player 3
display
shows PERCENT. If
the factory
setting has not
been
changed, the
player 4 display
shows
LEARN10,
indicating the setting of a
10% replay
percentage.
(The "Learn"
feature causes
the game
program
to
adjust
itself automatically, as
discussed in
the
following text
concerning
the 'details’ about
Adjustment Item
01
.)
2. To reach a
higher item
number (in the
BALL
IN PLAY/MATCH display), use
AUTO-UP and
press
ADVANCE. To
return
to a
previous
item number, use
MANUAL-DOWN
and press
ADVANCE.
3. With
the desired item
number (refer to
the
PIN-BOT Game
Adjustment
Table)
showing
in the
BALL IN
PLAY/MATCH
display, increase the
value (or
select another
option)
shown in
the
player 4 display by
using
AUTO-UP and
pressing the
Credit button. Repeat
this step
for
each
item, until all
adjustments have
been made.
(The same
procedure can be used
for Audit Items.
To zero Au
01
-
04
(concerning the
coin
chutes
and the total
coins), the
operator can proceed to
item
68,
Clear Coins,
and press the
Credit button to obtain the
YES option.
The operator
then presses
the ADVANCE
button and
notes the
"COINS
CLEARED" display,
which verifies that
the entry
values for
items 01
through 04 of
the Audit Items are
now reset to
zero.)
For example, the
operator may
desire
to
change the
degree of
game play
difficulty from
the
Factory Selling
(equivalent to the
Install Medium
[Ad
64]
difficulty, along
with
a
number of
other
automatically installed
settings,
as
shown
in the right
column of the
Game
Adjust-
ment
Table)
to
another
difficulty more
suitable for the
players
at a
particular game
site. Four
other ’automatic' play
difficulty settings
(Ad 62
-
Ad
66)
are available,
each of
which, if selected,
installs
all the adjustments listed
for that item in
the following
'details' text.
4. To proceed
rapidly
through the entire
adjustments series,
press and
hold
ADVANCE, until
Ad
70 shows in the
BALL IN
PLAY/MATCH display.
From item
70,
you
can: (A)
return to
the
Game-Over Mode
;
or
(B) restore factory
settings and
zero audit
(bookkeeping)
totals.
Perform
either of the following, as
desired:
A. To
reach
Game-Over Mode
,
use
AUTO-UP and
press ADVANCE
once.
PIN'BOT
now
goes to
the
Game-Over Mode.
B. To
restore factory
settings, zero all
audit (bookkeeping)
totals,
and return to
Game-Over
Mode , use
AUTO-UP
or MANUAL-DOWN to
display item
70 in the
BALL IN
PLAY/MATCH
display.
Press the
Credit button to
display the YES
option in the
player 4
display. Using
AUTO-UP, press
ADVANCE once.
PIN-BOT now
zeroes ALL
audit totals
and changes
ALL game adjustments
back to
those
originally selected as
Factory
Settings.
It then
shows
the operator
a
message
("FACTORY
SETTING”) that
this has occurred.
(A problem
in the
Memory Protection
circuit or
closing the
coin door
will
cause
the message
"ADJUST
FAILURE"
to
appear.)
Press ADVANCE
once more to
return to
the
Game-Over Mode
.
Details
of
Adjustment Items
01 through
70
01 Auto
Replay (or
Fixed
Replay)
Of
the
two options,
AUTO
REPLAY
is
the
Factory
Setting .
The percentage
of
replays automat-
ically
awarded has
a
Factory Setting
of
LEARN 10%
(German
games
have
a
Factory Setting
of
LERNE
15%).
The LEARN
mode aids a
game's
initial installation by
causing
the game
program
PIN-BOT
10
