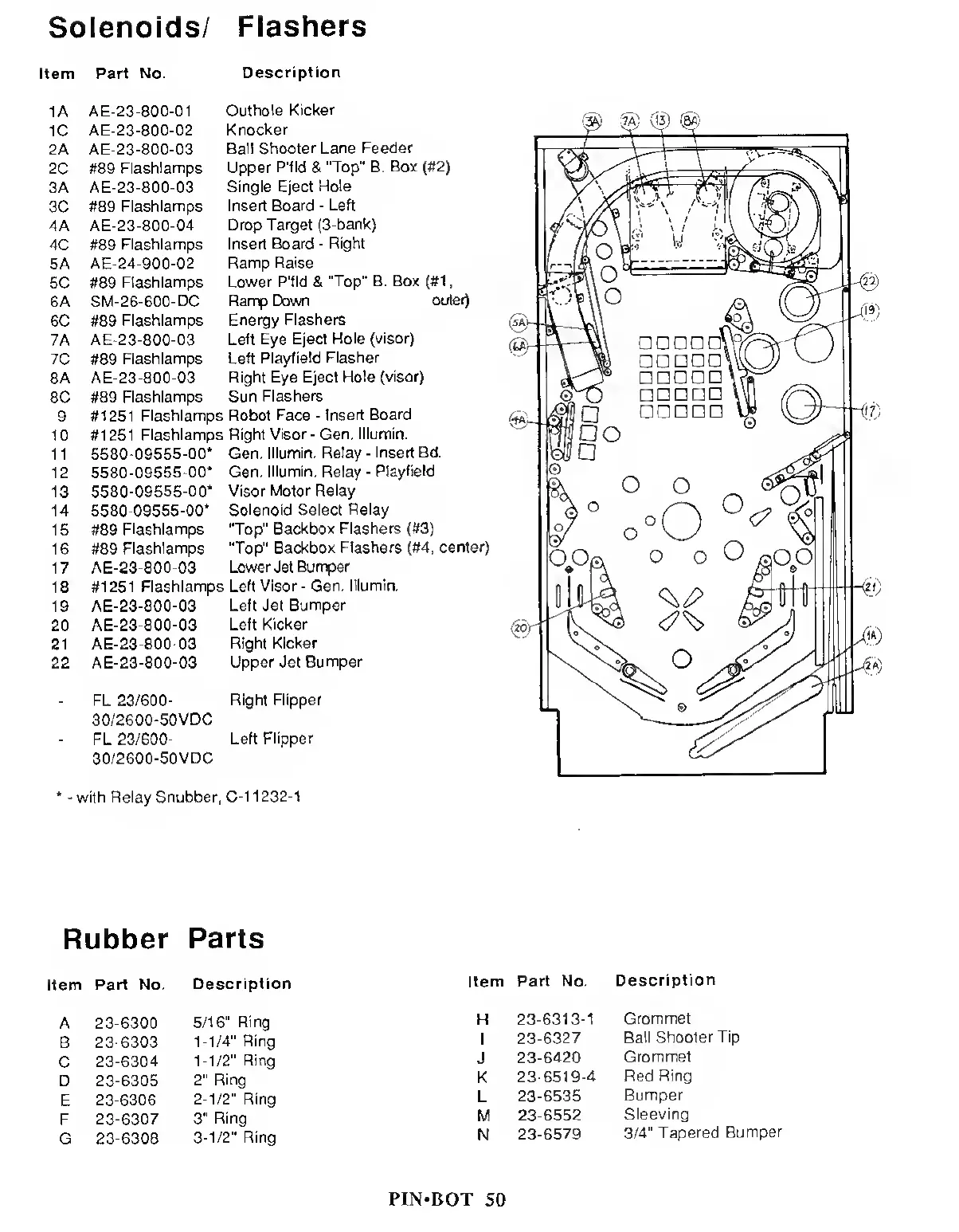

Solenoids/
Flashers
Item
Part No.
Description
1 A AE-23-800-01
Outhole
Kicker
1C
AE-23-800-02
Knocker
2A AE-23-800-03
Bali
Shooter Lane Feeder
2C
#89
Flashlamps
Upper
P'fld
&
"Top" B.
Box
(#2)
3A AE-23-800-03
Single Eject
Hole
3C
#89
Flashlamps
Insert Board
-
Left
4A AE-23-800-04
Drop
Target
(3-bank)
4C #89
Flashlamps
Insert Board
-
Right
5A
AE-24-900-02 Ramp
Raise
5C #89
Flashlamps
Lower
P’fld
&
"Top" B. Box
(#1
,
6A
SM-26-600-DC Ramp
Down
outer)
6C #89
Flashlamps
Energy
Flashers
7A
AE-23-800-03
Lett Eye Eject
Hole (visor)
7C #89
Flashlamps Left
Playfield Flasher
8A AE-23-800-03
Right Eye Eject
Hole (visor)
8C
#89 Flashlamps
Sun
Flashers
9
#1251 Flashlamps Robot
Face
-
Insert
Board
10
#1251 Flashlamps Right
Visor- Gen. Illumin.
1
1
5580-09555-00* Gen. Illumin. Relay
-
Insert Bd.
12
5580-09555-00* Gen. Illumin. Relay
-
Playfield
13
5580-09555-00’ Visor Motor Relay
14
5580-09555-00* Solenoid Select
Relay
15 #89
Flashlamps "Top"
Backbox Flashers
(#3)
16 #89
Flashlamps "Top" Backbox
Flashers
(#4,
center)
17 AE-23-800-03
Lower Jet
Bumper
18
#1251 Flashlamps
Left Visor
-
Gen. Illumin.
19 AE-23-800-03
Left Jet
Bumper
20 AE-23-800-03
Left
Kicker
21 AE-23-800-03
Right Kicker
22 AE-23-800-03
Upper Jet
Bumper
FL
23/600- Right Flipper
30/2600-50VDC
-
FL
23/600- Left
Flipper
30/2600-50VDC
*
-
with Relay Snubber, C-1
1
232-1
Rubber
Parts
item
Part No.
Description
A
23-6300
5/16"
Ring
B
23-6303
1-1/4"
Ring
C
23-6304
1-1/2"
Ring
D
23-6305
2"
Ring
E
23-6306
2-1/2”
Ring
F
23-6307
3”
Ring
G
23-6308
3-1/2"
Ring
Item
Part No.
Description
H
23-6313-1
Grommet
I
23-6327
Ball Shooter
Tip
J
23-6420
Grommet
K
23-6519-4 Red
Ring
L
23-6535
Bumper
M
23-6552
Sleeving
N
23-6579
3/4"
Tapered
Bumper
PIN*BOT
50
