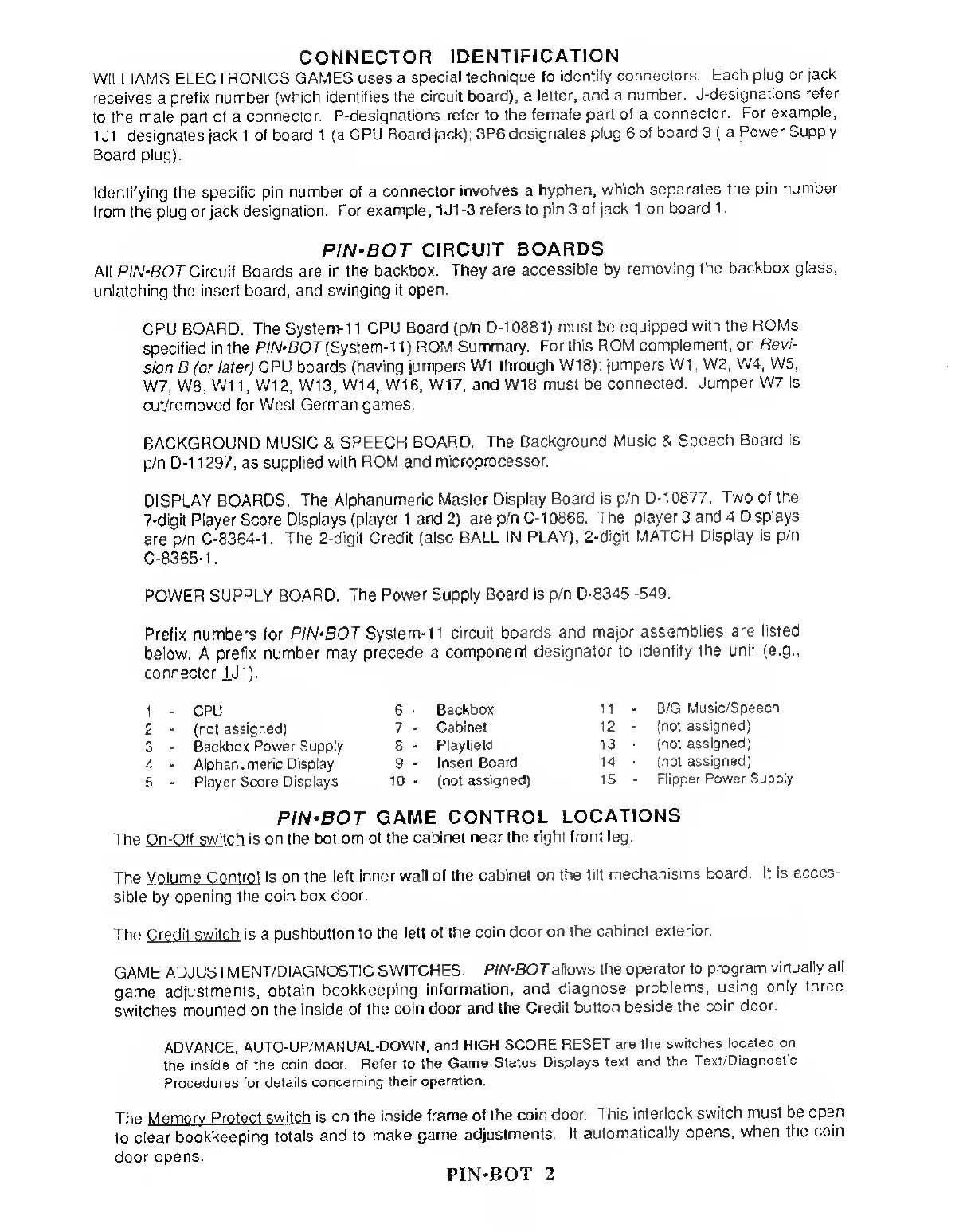

CONNECTOR
IDENTIFICATION
WILLIAMS ELECTRONICS
GAMES
uses
a
special technique to
identify
connectors.
Each
plug or jack
receives a
prefix number
(which identifies the
circuit board), a
letter, and a
number.
J-designations
refer
to
the male part of a
connector.
P-designations
refer
to
the female
part of a
connector.
For example,
1 Ji designates jack 1
of board
1
(a CPU
Board jack);
3P6 designates
plug
6
of board
3
(
a
Power Supply
Board plug).
Identifying the specific
pin number of a
connector
involves
a
hyphen,
which separates
the pin
number
from the plug or jack
designation.
For example, 1J1-3
refers
to
pin
3
of jack 1 on
board
1
.
PIN-BOT
CIRCUIT
BOARDS
All PIN-BOT Circuit
Boards are in the
backbox.
They are accessible by
removing
the backbox
glass,
unlatching the insert
board, and
swinging it open.
CPU BOARD.
The System-11
CPU Board (p/n D-10881)
must be
equipped
with the ROMs
specified in the
PIN-BOT (System-11)
ROM
Summary. For this
ROM complement,
on
Revi-
sion B (or later)
CPU boards
(having jumpers W1
through W18);
jumpers W1, W2,
W4, W5,
W7, W8,
W11, W12, W13,
W14, W16, W17,
and W18 must be
connected
Jumper W7
is
cut/removed for West
German games.
BACKGROUND MUSIC &
SPEECFf
BOARD. The
Background Music &
Speech
Board is
p/n D-1 1297, as
supplied with
ROM and
microprocessor.
DISPLAY BOARDS. The
Alphanumeric
Master Display
Board is p/n D-1
0877.
Two of the
7-digit Player Score
Displays (player 1
and
2)
are p/n
C-i 0866. The
player
3
and
4 Displays
are p/n C-8364-1.
The 2-digit
Credit (also BALL
IN PLAY),
2-digit MATCH
Display is p/n
C-8365-1
.
POWER SUPPLY BOARD.
The Power
Supply Board is p/n D-8345
-549.
Prefix
numbers for
PIN-BOT System-11
circuit boards and
major
assemblies are listed
below. A
prefix number may
precede a
component
designator
to
identify
the unit (e.g.,
connector 1J1).
1
-
CPU
6
-
Backbox
11
-
B/G
Music/Speech
2
-
(not
assigned)
7
-
Cabinet
12
-
(not assigned)
3
-
Backbox
Power Supply
8
-
Playfield 13
-
(not
assigned)
4
-
Alphanumeric Display 9
-
Insert
Board
14
-
(not
assigned)
5
-
Player
Score Displays
10
-
(not
assigned)
15
-
Flipper
Power
Supply
PIN-BOT
GAME
CONTROL
LOCATIONS
The On-Off switch
is on the bottom
of the cabinet
near the right
front leg.
The
Volume
Control is on the left
inner wall of the
cabinet on
the tilt
mechanisms
board. It is acces-
sible
by
opening
the coin box
door.
The
Credil switch is
a
pushbutton to
the left of the
coin door on
the cabinet
exterior.
GAME
ADJUSTMENT/DIAGNOSTIC
SWITCHES.
PIN-BOTallows the
operator to
program
virtually all
game adjustments,
obtain
bookkeeping
information,
and diagnose
problems,
using
only three
switches mounted
on the inside
of the coin door
and the
Credit button
beside
the coin
door.
ADVANCE,
AUTO-UP/MANUAL-DOWN,
and
HIGH-SCORE RESET
are the switches
located
on
the
inside of the
coin door.
Refer
to
the
Game Status
Displays text
and the
Text/Diagnostic
Procedures for details
concerning
their
operation.
Tbe
Memory Protect
switch
is
on the
inside frame
of the coin
door.
This interlock
switch
must
be
open
to clear
bookkeeping
totals
and to
make game
adjustments. It
automatically
opens,
when the
coin
door
opens.
PIN»BOT 2
