Williams PIN-BOT - Playfield Parts

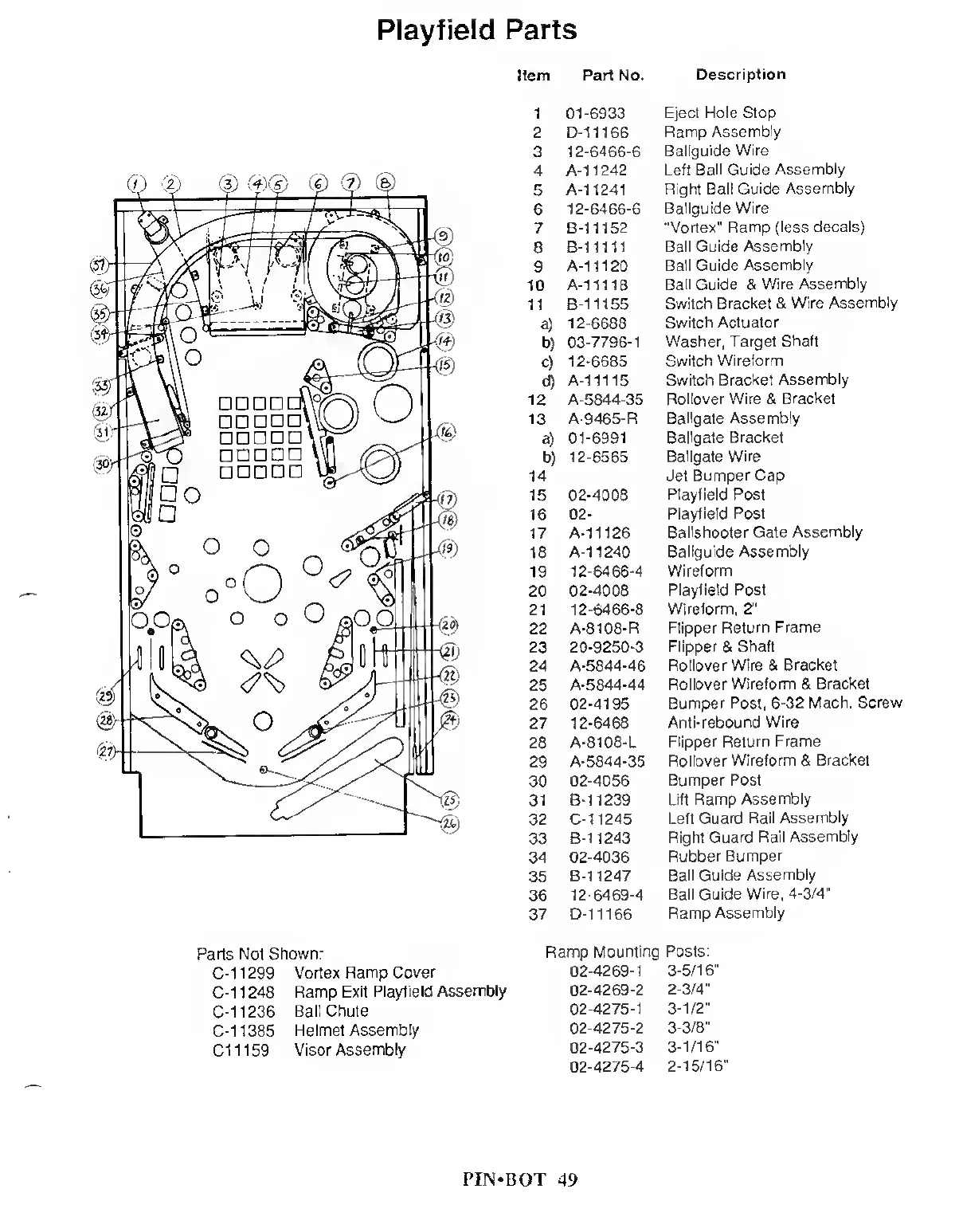

Playfield
Parts
Item
Part No.
Description
1
01-6933 Eject Hole Stop
2 D-11166
Ramp
Assembly
3
12-6466-6 Ballguide
Wire
4 A-11242
Left Ball Guide
Assembly
5
A-11241
Right
Ball
Guide Assembly
6
12-6466-6
Ballguide
Wire
7 B-11152
"Vortex’'
Ramp (less decals)
8 B-11111
Ball Guide
Assembly
9
A-11120
Ball
Guide
Assembly
10 A-11118
Ball Guide
&
Wire
Assembly
11
B-11155
Switch Bracket & Wire
Assembly
a)
12-6688 Switch Actuator
b)
03-7796-1 Washer, Target
Shaft
c)
12-6685 Switch Wireform
d)
A 1 1115
Switch Bracket
Assembly
12 A-5844-35
Rollover Wire &
Bracket
13 A-9465-R
Ballgate Assembly
a)
01-6991 Ballgate Bracket
b)
12-6565 Ballgate Wire
14 Jet
Bumper Cap
15
02-4008 Playfield Post
16
02-
Playtietd
Post
17 A-11126
Ballshooter Gate
Assembly
18
A-11240
Ballguide Assembly
19
12-6466-4 Wireform
20
02-4008
Playfield Post
21
12-6466-8 Wireform,
2"
22
A-8108-R Flipper
Return Frame
23
20-9250-3 Flipper
&
Shaft
24 A-5844-46
Rollover Wire &
Bracket
25 A-5844-44
Rollover
Wireform
&
Bracket
26
02-4195 Bumper Post,
6-32
Mach.
Screw
27
12-6468
Anti-rebound Wire
28 A-8108-L
Flipper
Return Frame
29 A-5844-35
Rollover
Wireform
&
Bracket
30
02-4056 Bumper Post
31 B-11239
Lift Ramp
Assembly
32 C-11245
Left
Guard Rail Assembly
33
B- 11
243 Right
Guard Rail
Assembly
34
02-4036
Rubber Bumper
35
B-11247
Ball Guide
Assembly
36
12-6469-4 Ball Guide
Wire,
4-3/4"
37 D-11166
Ramp
Assembly
Paris Not Shown:
Ramp
Mounting Posts:
C-11299
Vortex
Ramp Cover
02-4269-1
3-5/16"
C-11248
Ramp
Exit Playfield Assembly
02-4269-2
2-3/4"
C-11236
Ball Chute
02-4275-1
3-1/2"
C-11385
Helmet Assembly
02-4275-2
3-3/8"
Cl 1
159
Visor
Assembly
02-4275-3
02-4275-4
3-1/16"
2-15/16'
PIN-BOT 49
