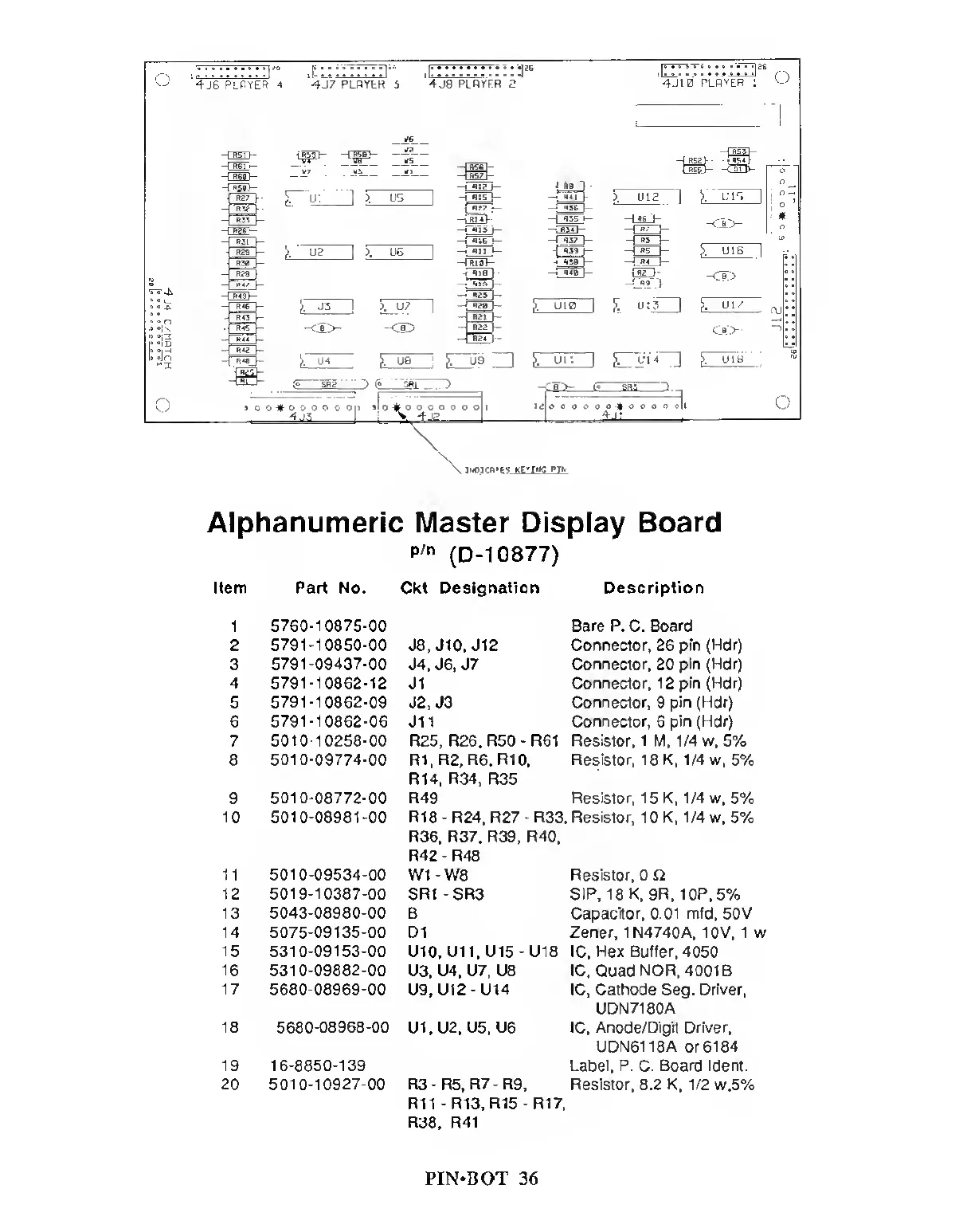

Williams PIN-BOT - Alphanumeric Master Display

Alphanumeric
Master Display
Board
P
/n
(D-10877)
Item Part No. Ckt Designation Description
1
5760-10875-00
Bare P. C. Board
2
5791-10850-00
J8,
J10,
J12 Connector,
26
pin
(Hdr)
3
5791-09437-00
J4, J6, J7
Connector,
20
pin (Hdr)
4
5791-10862-12
J1 Connector,
12
pin (Hdr)
5
5791-10862-09
J2, J3
Connector,
9
pin (Hdr)
6
5791-10862-06
J11
Connector,
6
pin (Hdr)
7
5010-10258-00
R25, R26, R50
-
R61 Resistor, 1 M, 1/4 w, 5%
8
5010-09774-00
R1.R2,
R6. RIO,
R14,
R34,
R35
Resistor, 18 K, 1/4 w,
5%
9
5010-08772-00
R49 Resistor, 15 K, 1/4 w,
5%
10 5010-08981-00 R18
-
R24, R27-
R33.
Resistor, 10 K,
1/4
w, 5%
R36, R37, R39, R40,
R42
-
R48
11
5010-09534-00
W1 -W8 Resistor, 0 £i
12
5019-10387-00
SRI
-
SR3 SIP, 18 K, 9R, 10P,
5%
13
5043-08980-00
B Capacitor, 0.01 mfd, 50V
14
5075-09135-00
D1 Zener, 1N4740A, 10 V, 1 w
15 5310-09153-00
U10, U11, U15
-
U18
1C,
Hex Buffer, 4050
16 5310-09882-00
U3, U4, U7, U8
1C, Quad
NOR, 4001
B
17 5680-08969-00
U9, U12-U14 1C, Cathode Seg.
Driver,
UDN7180A
18
5680-08968-00
U1, U2,
U5, U6
1C,
Anode/Digit Driver,
UDN6118A
or
6184
19
16-8850-139
Label, P.
C.
Board Ident.
20 5010-10927-00 R3
-
R5,
R7
-
R9,
R11 -R13,
R15-
R17,
R38,
R41
Resistor, 8.2 K, 1/2 w,5%
PIN*BOT 36
