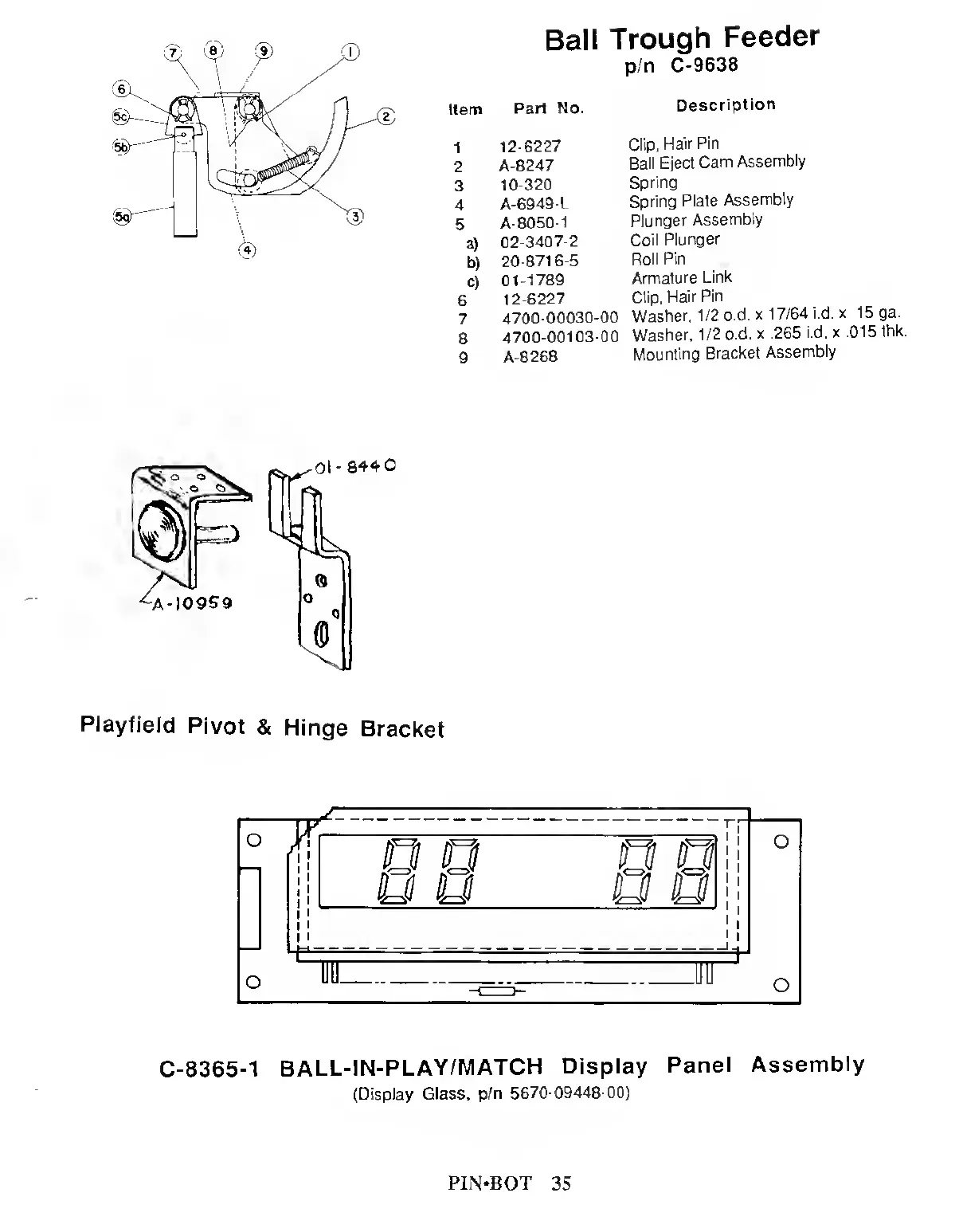

Williams PIN-BOT - Page 39

Ball
Trough
Feeder
p/n
C-9638
Item
Part
No.
Description
1
2
3
4
5
a)
b)
c)
6
7
8
9
12-6227
Clip,
HairPin
A-8247
Ball Eject
Cam
Assembly
10-320
Spring
A-6949-L
Spring
Plate
Assembly
A-8050-1
Plunger
Assembly
02-3407-2
Coil
Plunger
20-8716-5
Roll
Pin
01-1789
Armature
Link
12-6227
Clip,
Hair
Pin
4700-00030-00
Washer,
1/2
o.d.
x
17/64 i.d.
x
15
ga.
4700-00103-00
Washer,
1/2 o.d,
x .265
i.d. x
.015
thk.
A-8268
Mounting
Bracket
Assembly
Playfield
Pivot
&
Hinge
Bracket
C-8365-1
BALL-IN-PLAY/MATCH
Display
Panel
Assembly
(Display Glass,
p/n
5670-09448-00)
