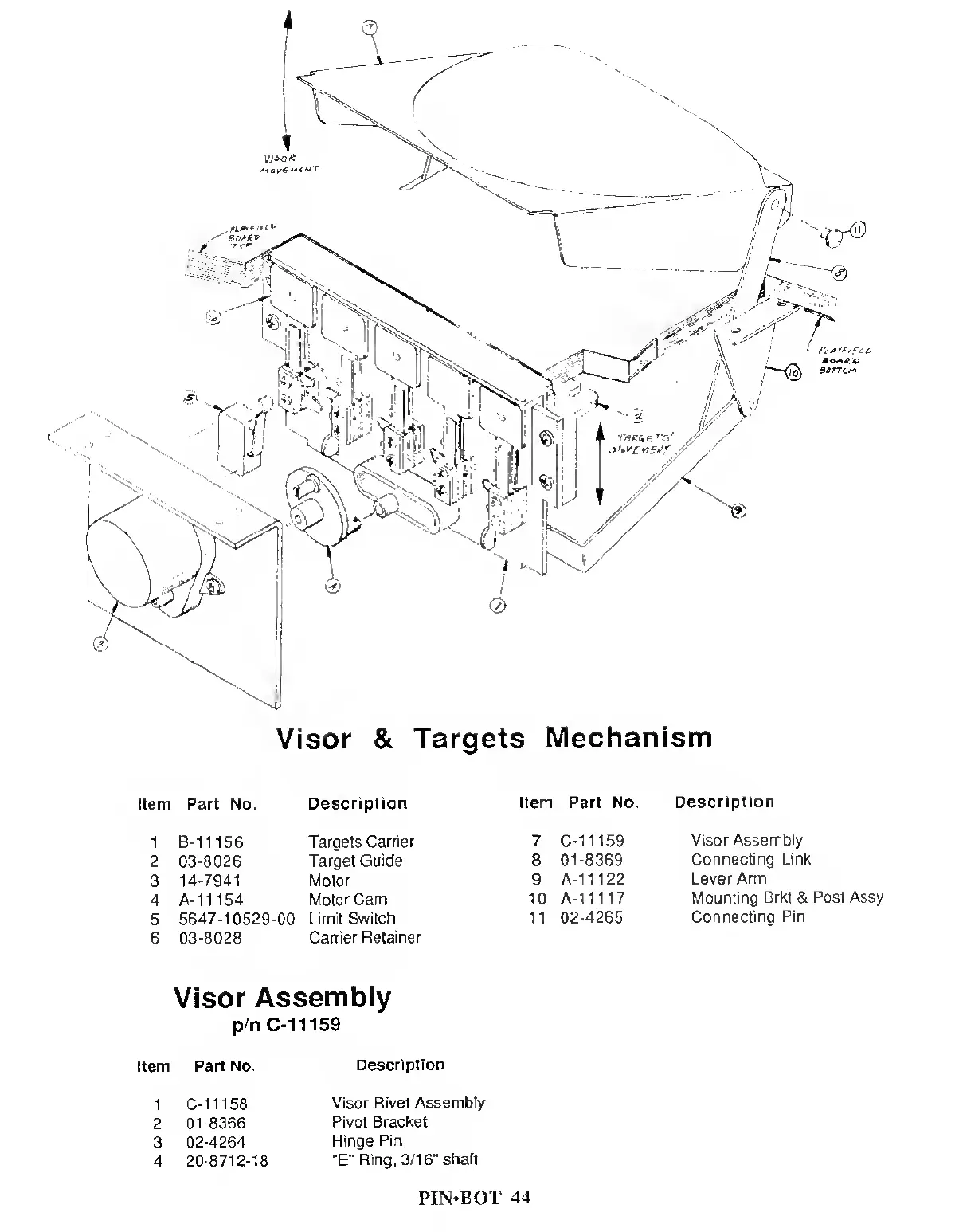

Williams PIN-BOT - Visor & Targets Mechanism

Visor
&
Targets
Mechanism
Item Part No.
Description
Item Part No.
Description
1
2
3
4
5
6
B-11156
03-8026
14-7941
A-11154
5647-10529-00
03-8028
Targets
Carrier
Target
Guide
Motor
Motor Cam
Limit Switch
Carrier Retainer
7 C-11159
8
01-8369
9 A-11122
10 A-
11117
11
02-4265
Visor Assembly
Connecting Link
Lever
Arm
Mounting
Brkt
&
Post Assy
Connecting Pin
Visor
Assembly
p/n C-11159
Item
Part No.
1 C-11158
2
01-8366
3
02-4264
4
20-8712-18
Description
Visor Rivet Assembly
Pivot Bracket
Hinge
Pin
"E"
Ring,
3/16''
shaft
PIN*BOT
44
