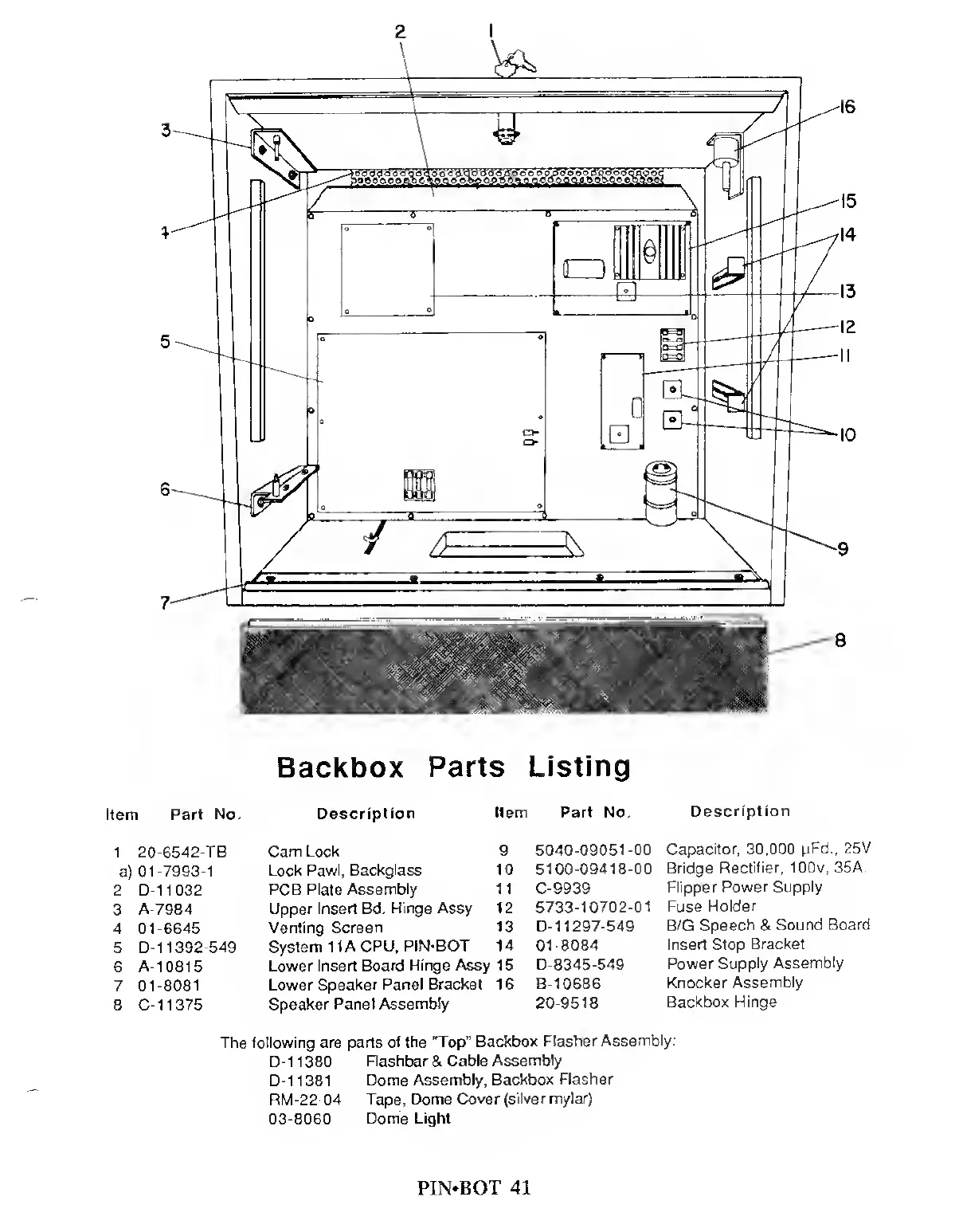

Williams PIN-BOT - Backbox Parts

Backbox
Parts
Listing
Item Part
No.
Description
Item Part No.
Description
1 20-6542-TB
Cam Lock
9
5040-09051-00 Capacitor, 30,000
pFd.,
25V
a)
01-7993-1 Lock Pawl,
Backglass 10
5100-09418-00 Bridge
Rectifier, lOOv,
35A.
2 D-1 1032
PCB Plate
Assembly 11 C-9939
Flipper
Power Supply
3
A-7984
Upper Insert Bd.
Hinge Assy 12
5733-10702-01 Fuse
Holder
4
01-6645 Venting
Screen 13 D-1
1297-549 B/G
Speech
&
Sound
Board
5 D-1
1392-549 System 1 1 A
CPU, PIN-BOT
14
01-8084 Insert Stop
Bracket
6 A-10815
Lower Insert
Board Hinge Assy 15 D-8345-549
Power
Supply Assembly
7
01-8081 Lower
Speaker Panel Bracket 16
B-10686
Knocker
Assembly
8
C-11375
Speaker Panel
Assembly
20-9518
Backbox Hinge
The following are parts
of the "Top" Backbox
Flasher Assembly:
D-11380
Flashbar
&
Cable Assembly
D-1 1381 Dome
Assembly, Backbox
Flasher
RM-22-04
Tape, Dome Cover (silver
mylar)
03-8060
Dome Light
PIN*BOT
41
