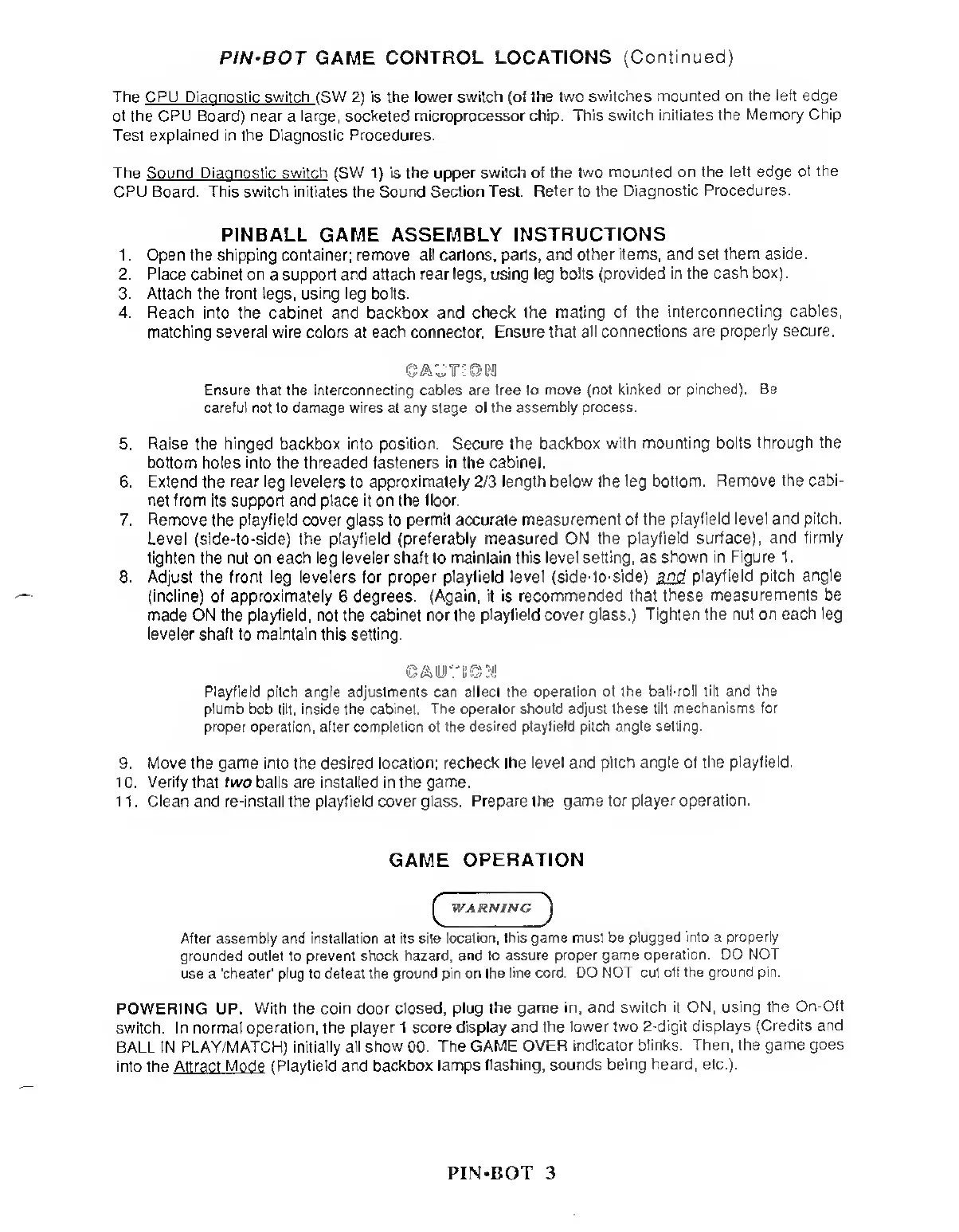

PIN-BOT
GAME CONTROL
LOCATIONS (Continued)
The
CPU
Diagnostic switch (SW
2)
is the lower switch (ot the two
switches mounted
on the left edge
of the CPU Board) near
a
large, socketed microprocessor chip.
This switch
initiates the Memory
Chip
Test explained in the Diagnostic Procedures.
The Sound Diagnostic switch (SW
1)
is the upper switch
of the two mounted on the
left
edge
of the
CPU Board. This switch initiates the Sound Section Test.
Refer
to
the Diagnostic
Procedures.
PINBALL GAME ASSEMBLY
INSTRUCTIONS
1 . Open the shipping container; remove
all cartons, parts, and other items, and set
them aside.
2. Place cabinet on
a
support and attach
rear legs, using leg bolts (provided in the
cash box).
3. Attach the front legs, using leg bolts.
4. Reach into the cabinet and backbox and check the mating
of the interconnecting
cables,
matching several wire
colors
at each
connector. Ensure that all connections
are properly secure.
CA'jinoN
Ensure that the interconnecting cables
are tree to move (not kinked or
pinched). Be
careful not to damage wires at any stage
ol the assembly process.
5.
Raise the hinged
backbox into
position. Secure the backbox with
mounting bolts through
the
bottom holes into the threaded fasteners in the
cabinet.
6. Extend the rear leg levelers
to
approximately 2/3 length below
the leg bottom. Remove
the cabi-
net from
its
support
and place it on the
floor.
7. Remove the playfield cover glass
to
permit accurate
measurement of fhe
playfield level and pitch.
Level (side-to-side) the playfield
(preferably measured ON the playfield
surface), and
firmly
lighten the
nut on each leg
leveler shaft
to
maintain this level setting, as
shown in Figure 1.
8. Adjust
the
front
leg levelers for
proper playfield level (side-to-side)
3M
playfield pitch
angle
(incline) of approximately
6
degrees. (Again, it is recommended that
these measurements be
made ON the playfield, not the cabinet nor the playfield cover glass.)
Tighten the nut on
each leg
leveler shaft
to
maintain this setting.
CAirriOM
Playfield pitch angle adjustments can affect the
operation of the ball-roll tilt and the
plumb bob tilt, inside the cabinet. The operator should adjust these tilt
mechanisms for
proper
operation, after
completion
of the
desired playfield pitch angle setting.
9. Move the game into the desired location; recheck the
level and pitch angle of
the playfield.
10. Verify that two
balls are installed in
the game.
1
1 .
Clean
and re-install the playfield
cover glass. Prepare the game for
player operation.
GAME
OPERATION
^
WARNING
^
After assembly and installation at its site
location, this game must be plugged
into
a
properly
grounded outlet to prevent shock hazard,
and to assure proper game
operation.
DO
NOT
use a
’cheater' plug
to
defeat the ground pin on the
line cord. DO NOT cut
off the ground pin.
POWERING UP.
With the coin door
closed,
plug the game
in, and switch
it ON, using the
On-Off
switch. In normal operation,
the player 1 score display and the
lower two
2-digit displays (Credits
and
BALL IN PLAY/MATCH)
initially all show
00.
The GAME
OVER indicator
blinks. Then, the game goes
into the Attract
Mode (Playfield and backbox lamps
flashing, sounds
being heard,
etc.).
PIN*BOT 3
