MAINTENANCE
INFORMATION

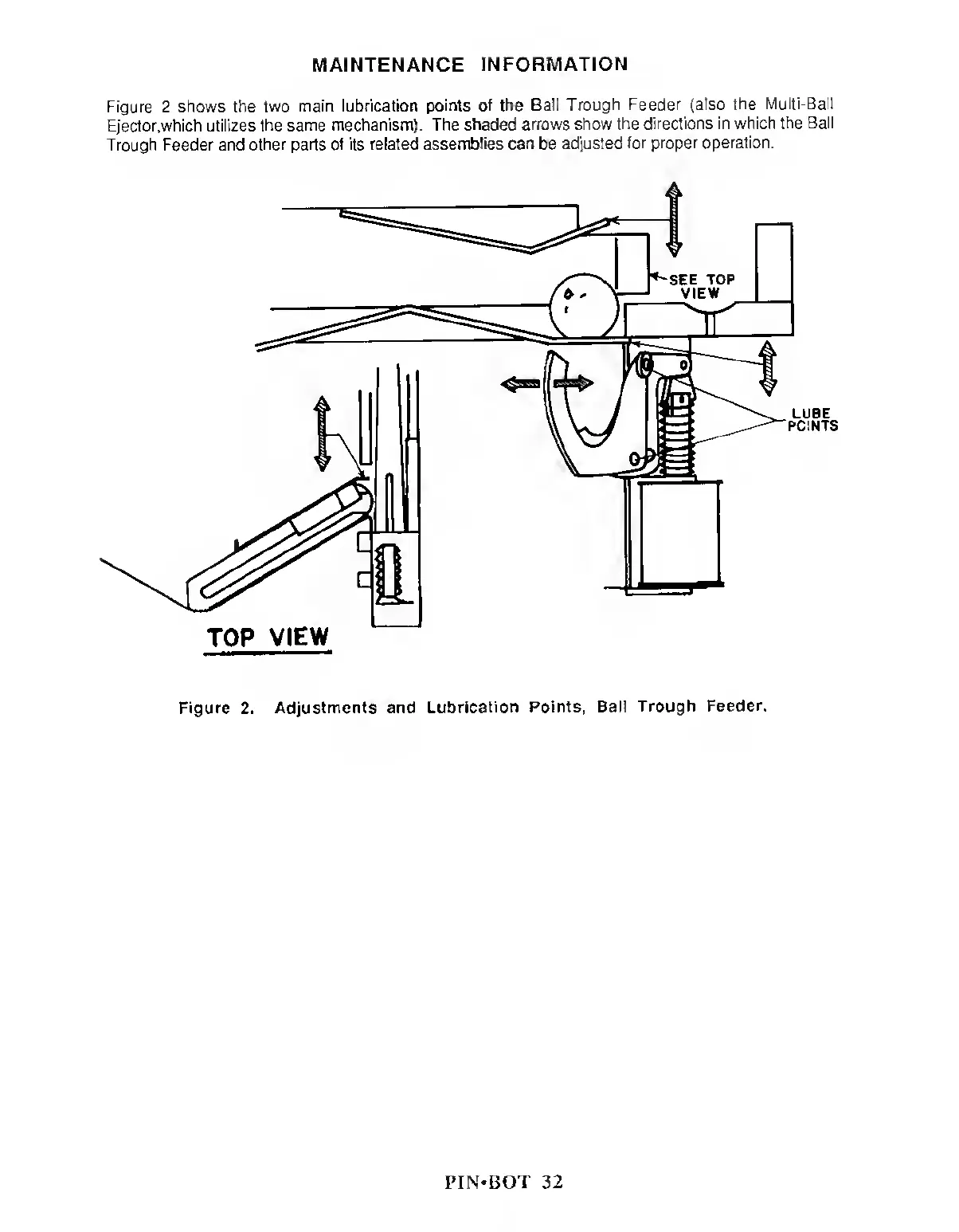

Figure 2
shows (he two
main lubrication points ot the
Ball Trough Feeder
(also the Multi-Ball
Ejector,
which utilizes the same mechanism).
The shaded arrows
show the directions
in which the Ball
Trough Feeder
and other parts ot its related
assemblies can be adjusted
for proper
operation.
Figure
2.
Adjustments and
Lubrication Points, Ball
Trough Feeder.
