23c

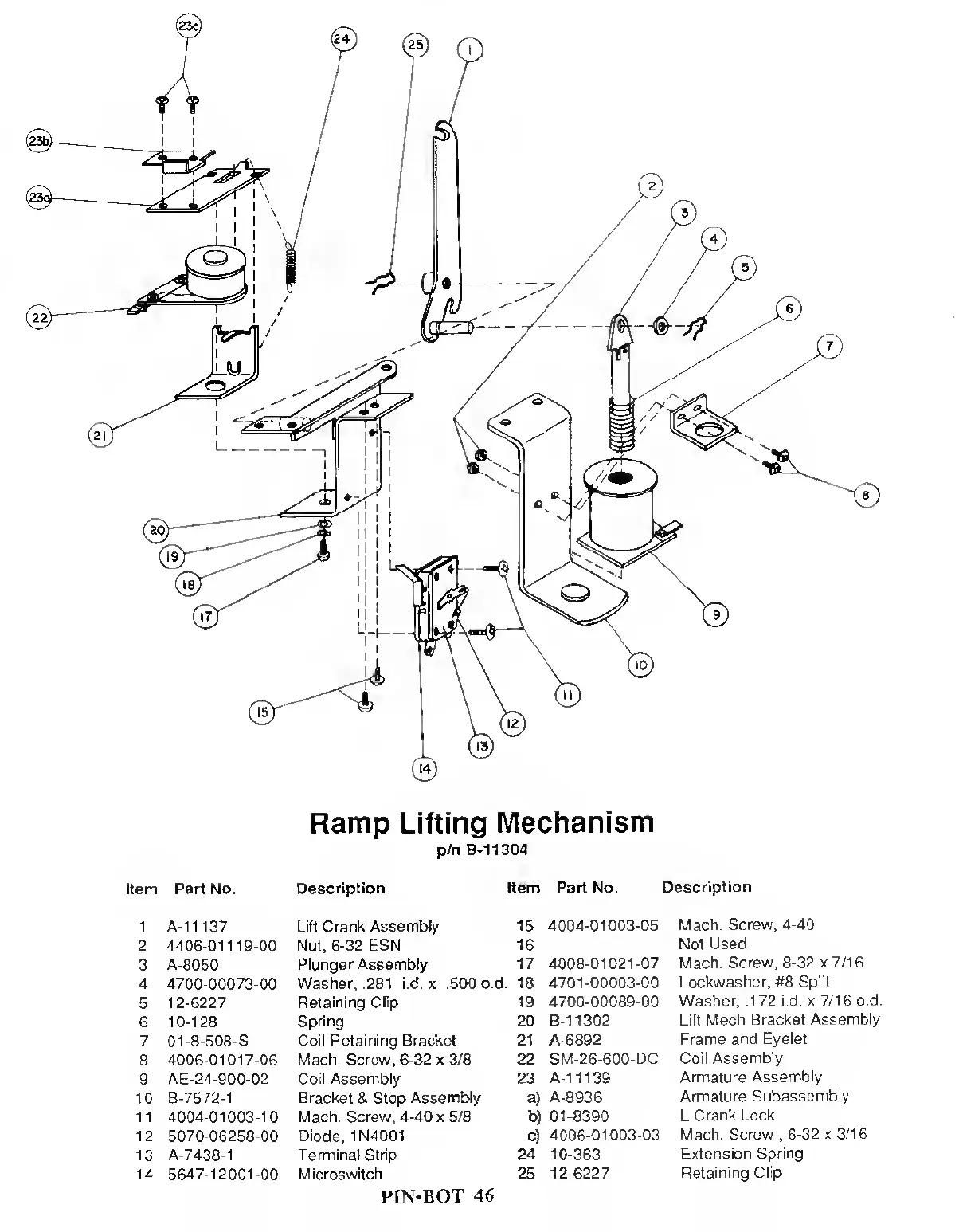

Item Part No.
Description Item
Part No.
Description
1 A-11137 Lift Crank Assembly
15
4004-01003-05 Mach.
Screw,
4-40
2
4406-01119-00
Nut,
6-32
ESN
16
Not Used
3
A-8050 Plunger Assembly
17
4008-01021-07 Mach. Screw,
8-32
x
7/16
4 4700-00073-00 Washer, .281 i.d. x .500 o.d
. 18
4701-00003-00 Lockwasher, #8
Split
5
12-6227
Retaining
Clip 19
4700-00089-00 Washer,
.172 i d. x 7/16 o.d.
6
10-128 Spring 20 B-11302
Lift
Mech Bracket Assembly
7
01-8-508-S
Coil Retaining Bracket 21 A-6892
Frame
and Eyelet
8
4006-01017-06 Mach. Screw, 6-32
x 3/8
22 SM-26-600-DC
Coil
Assembly
9
AE-24-900-02
Coil
Assembly
23
A-11139
Armature Assembly
10 B-7572-1
Bracket
& Stop
Assembly
a)
A-8936
Armature Subassembly
11
4004-01003-10 Mach. Screw,
4-40
x
5/8
b)
01-8390 L
Crank Lock
12
5070-06258-00 Diode, 1N4001
c)
4006-01003-03
Mach. Screw
,
6-32
x 3/16
13
A-7438-1 Terminal Strip
24 10-363
Extension Spring
14 5647-12001-00 Microswitch 25
12-6227
Retaining Clip
PIN-BOT
46
