Fieldbus status
Main screen
Control settings
Interaction / Communication
System
Help

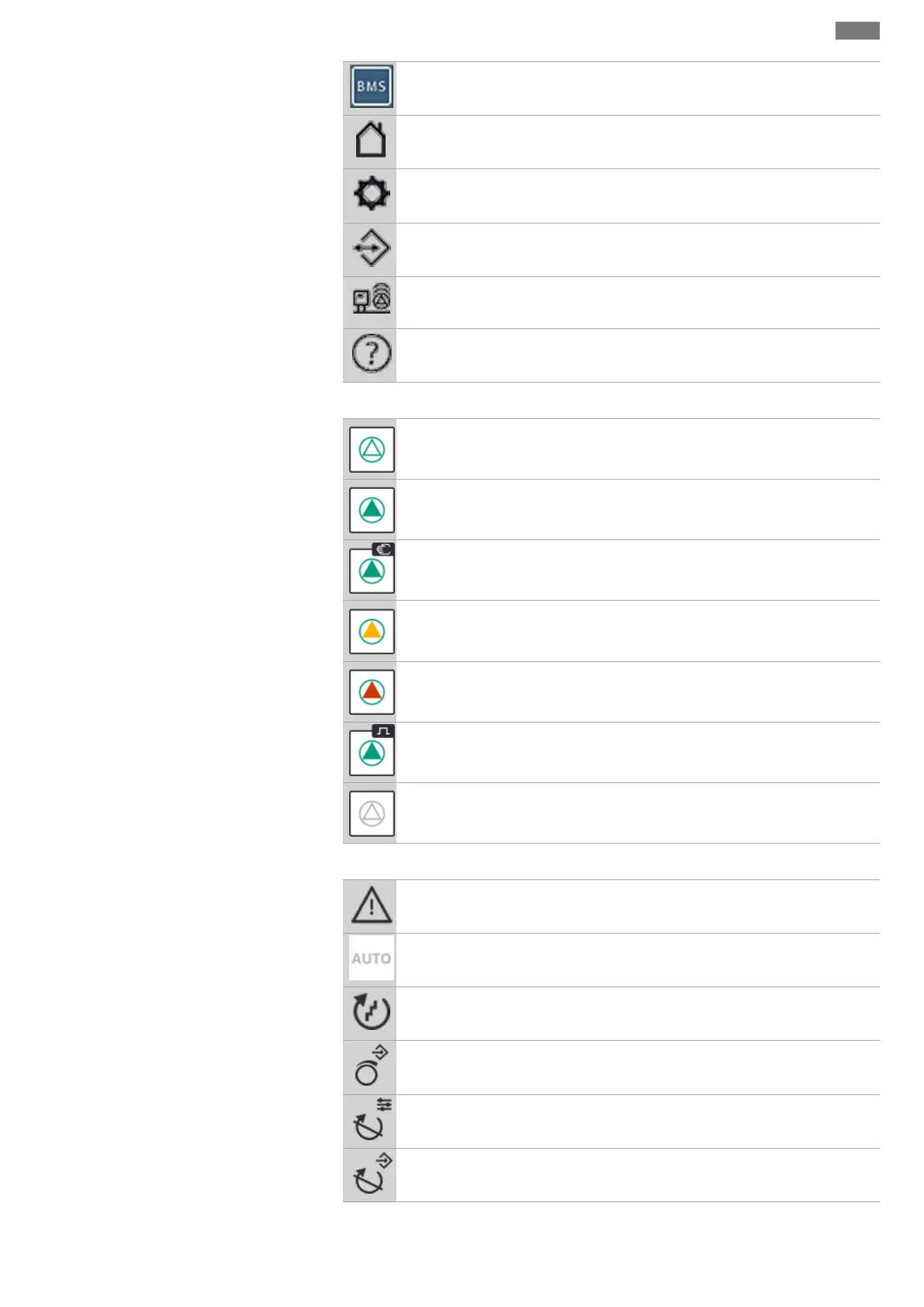

Table2: Main menu symbols
Pump off
Pump in operation
Pump runs in manual mode
Pump has a warning
Pump has a fault
Pump started by pump test run
Pump not available
Table3: Pump status symbols
Alarm active
Automatic mode is switched off
Base-load pump scheme Cascade active
Constant speed control mode
Drives are switched off
External off is not allowed
